BACK PANEL COMPONENTS

Following is a brief description of your LifeBook note-
book's back panel components.
Anti-theft Lock Slot
The anti-theft lock slot allows you to attach an optional
physical lock down device.
Mini-VGA Jack
The mini-VGA jack allows you to connect your LifeBook
notebook to an external monitor with the included cable
adapter. (See Mini-VGA Port on page 35 for more infor-
mation)
USB Ports
The two USB ports allow you to connect Universal Serial
Bus devices. (See Universal Serial Bus Ports on page 35 for
more information)
Modem (RJ-11) Telephone Port
The Modem (RJ-11) telephone jack is for attaching
a telephone line to the internal multinational 56K
modem. (See Modem (RJ-11) Telephone Jack on page 35
for more information)
W A R N I N G
The internal modem is not intended for use with Digital
PBX systems. Do not connect the internal modem to a
Digital PBX as it may cause serious damage to the
internal modem or your entire notebook. Consult your
PBX manufacturer's documentation for details. Some
hotels have Digital PBX systems. Be sure to find out
BEFORE you connect your modem.
Modem (RJ-11) Jack
LAN (RJ-45) Jack

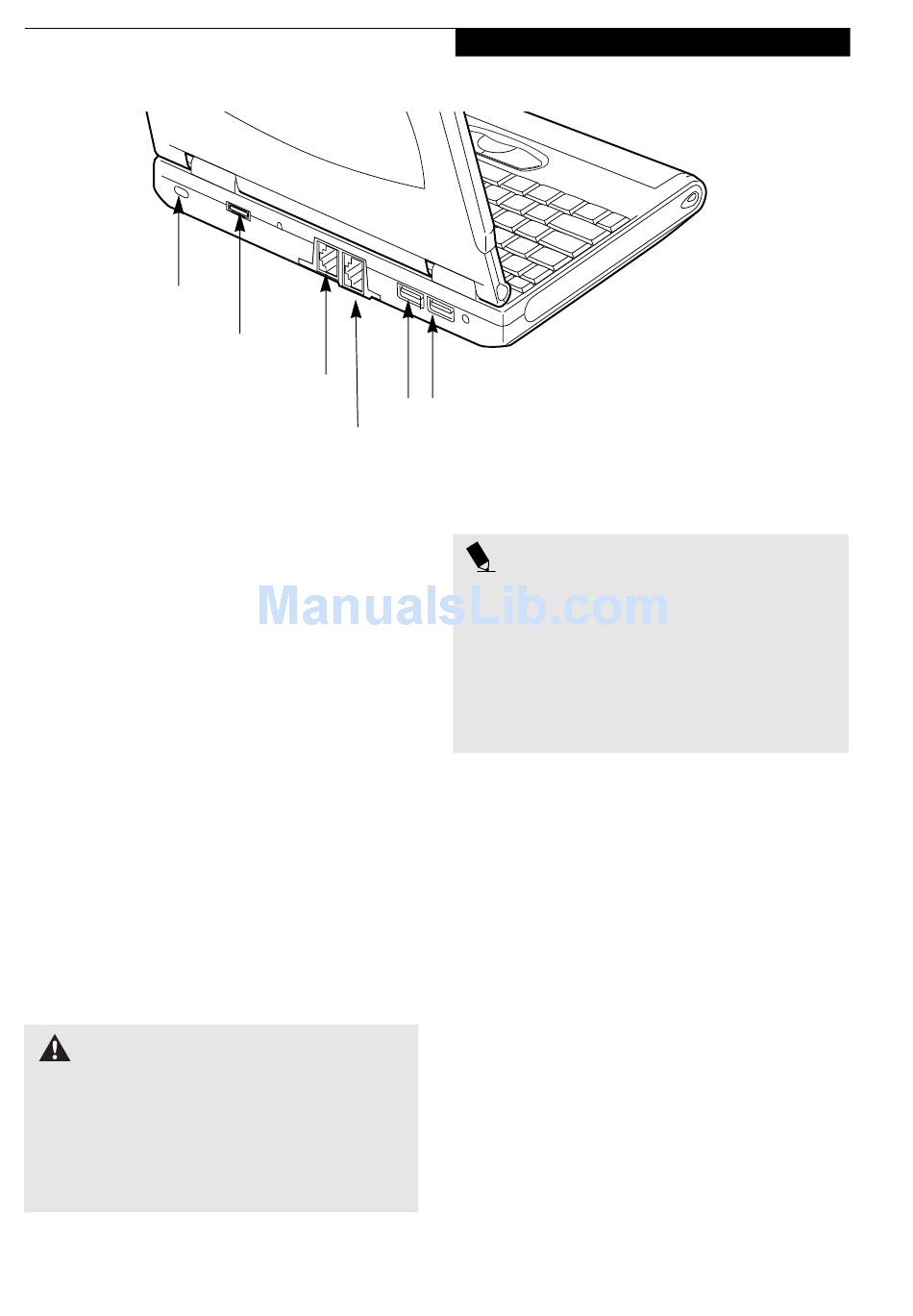

Figure 2-7 LifeBook notebook back panel
G e t t i n g t o K n o w Y o u r N o t e b o o k
USB Ports
P O I N T
The internal multinational modem is designed to the
ITU-T V.90 standard. Its maximum speed of 53000bps
is the highest allowed by FCC, and its actual connection
rate depends on the line conditions. The maximum
speed is 33600bps at upload.
For additional information about the multinational
modem, refer to the Fujitsu web site at:
www.fujitsupc.com/modems
LAN (RJ-45) Jack
The internal LAN (RJ-45) jack is used for an internal
Fast Ethernet (10/100 Base-TX) connection. (See
Internal LAN (RJ-45) Jack on page 35 for more informa-
tion)
9
