Original Issue Date: 9/13
Model: 40EOZDJ/33EFOZDJ
Market: Marine
Subject: Sound Shield Kit GM86396-KP1 and
Introduction
The sound shield quiets operation of generator sets
used in marine applications. When installing the sound
shield, follow the installation procedure and observe the
safety precautions listed below.
Read the entire installation procedure before beginning
installation. Perform the steps in the order shown.
Take into consideration the minimum clearance for
vibration and cooling during operation.
shielded units, allow 305 mm (12 inches) minimum
clearance for the left-rear door and front door (intake
and discharge openings).

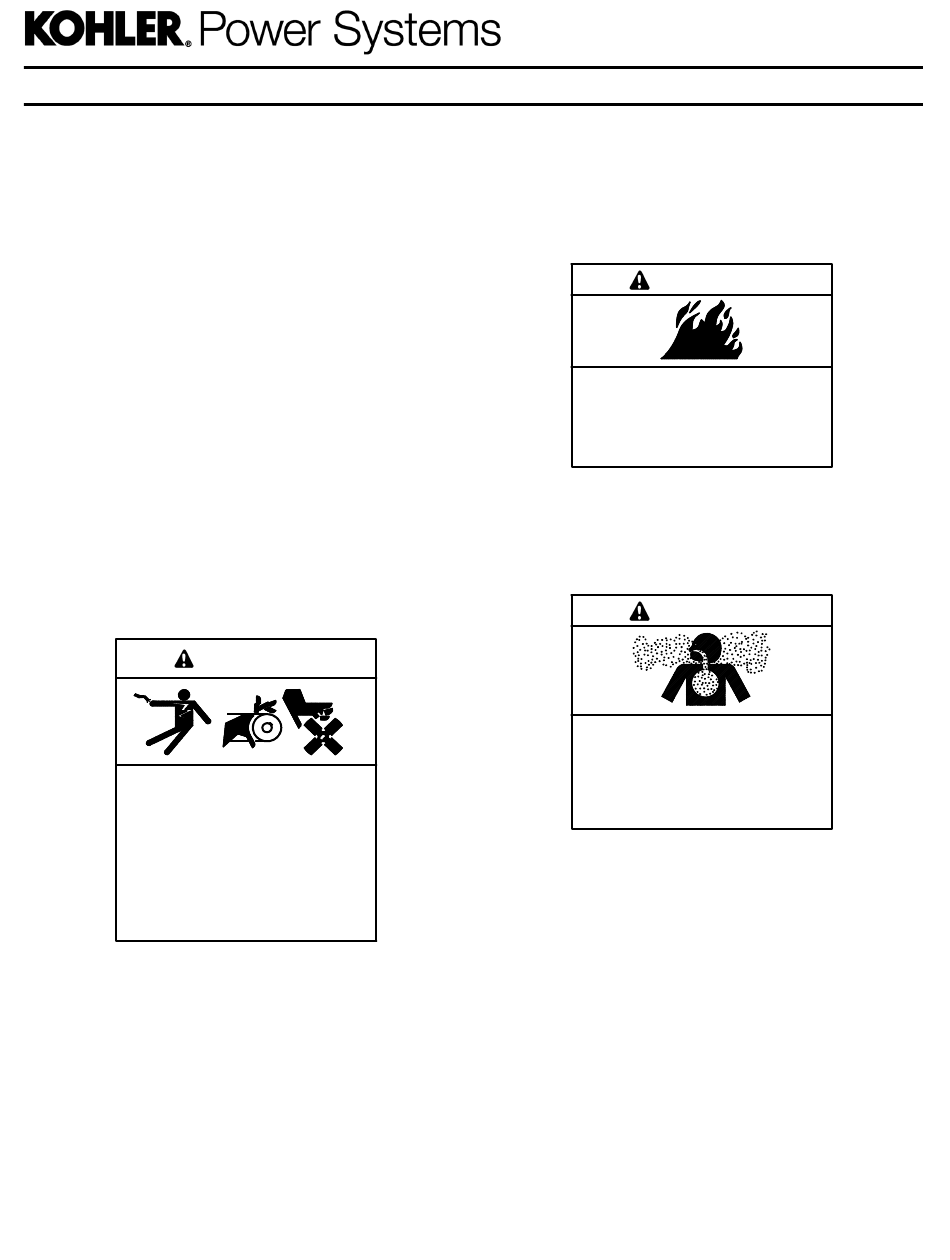

Safety Precautions
WARNING
Accidental starting.
Can cause severe injury or death.
Disconnect the battery cables before
working
on
Remove the negative (--) lead first
when disconnecting the battery.
Reconnect the negative (--) lead last
when reconnecting the battery.
Disabling the generator set.
cause severe injury or death.
generator set or equipment connected to the set, disable the
generator set as follows: (1) Move the generator set master
switch to the OFF position. (2) Disconnect the power to the
battery charger. (3) Remove the battery cables, negative (--)
lead first.
Reconnect the negative (--) lead last when
reconnecting the battery. Follow these precautions to prevent
starting of the generator set by an automatic transfer switch,
remote start/stop switch, or engine start command from a
remote computer.
INSTALLATION INSTRUCTIONS
UMS Sound Shield Kit GM88266- -KP1
For sound
the
generator
set.
Accidental starting can
Before working on the
WARNING
Risk of fire.
Can cause severe injury or death.
Do not smoke or permit flames or
sparks near fuels or the fuel system.
Servicing the fuel system. A flash fire can cause severe
injury or death. Do not smoke or permit flames or sparks near
the carburetor, fuel line, fuel filter, fuel pump, or other potential
sources of spilled fuels or fuel vapors. Catch fuels in an
approved container when removing the fuel line or carburetor.
WARNING
Carbon monoxide.
Can
cause
fainting, or death.
The
exhaust
leakproof and routinely inspected.
Operating the generator set. Carbon monoxide can cause
severe nausea, fainting, or death. Be especially careful if
operating the generator set when moored or anchored under
calm conditions because gases may accumulate. If operating
the generator set dockside, moor the craft so that the exhaust
discharges on the lee side (the side sheltered from the wind).
Always be aware of others, making sure your exhaust is
directed away from other boats and buildings.
TT-1600 9/16a
severe
nausea,
system
must
be
