Summary of Contents for ALTUS ADC70W
- Page 1 Dryer User Manual ADC70W 2960312937/201221.1324...
-
Page 2: Please Read This User Manual First
Please read this user manual first! Dear Customer, Thank you for prefering a Altus product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. -
Page 3: Important Instructions For Safety And Environment
Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are... - Page 4 Important instructions for safety and environment • Before putting laundry in a steam program, stains on it should be removed. • You may only put laundry that is not dirty or stained but permeated with unpleasant odour in steam (odour removal) program.
-
Page 5: Product Safety
Important instructions for safety and environment • Power cable plug must be easily accessible after installation. Damaged mains cable should be changed notifying an Authorised Service Agent. If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock! 1.1.2 Product safety Superheating of the clothes inside of the dryer can... - Page 6 Important instructions for safety and environment Below specified laundry or items must not be dried in the dryer due to the fire hazard: • Garments or pillows bolstered with rubber foam (latex foam), shower hats, water resistant textiles, materials with rubber reinforcement and rubber foam pads.
- Page 7 Important instructions for safety and environment Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying. Use softeners and similar products in accordance with the instructions of their manufacturers. Always clean the lint filter before or after each loading.
- Page 8 Important instructions for safety and environment • Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. • The final step of the drying cycle (cool-down cycle) occurs without applying heat to ensure that the items are left at a temperature that will not damage them.
-
Page 9: Intended Use
Important instructions for safety and environment 1.3 Intended use • Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use. • Use the dryer only for drying laundry that are marked accordingly. -
Page 10: Compliance With The Weee Regulation And Disposing Of The Waste Product
Important instructions for safety and environment 1.5 Compliance with the WEEE regulation and disposing of the waste product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 11: Technical Specifications
Important instructions for safety and environment 1.8 Technical Specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,7 cm Depth 56,8 cm Capacity (max.) 7 kg** Net weight (± 4 kg) 34 kg Voltage Rated power input See type label*** Model code * Min. -
Page 12: Your Dryer

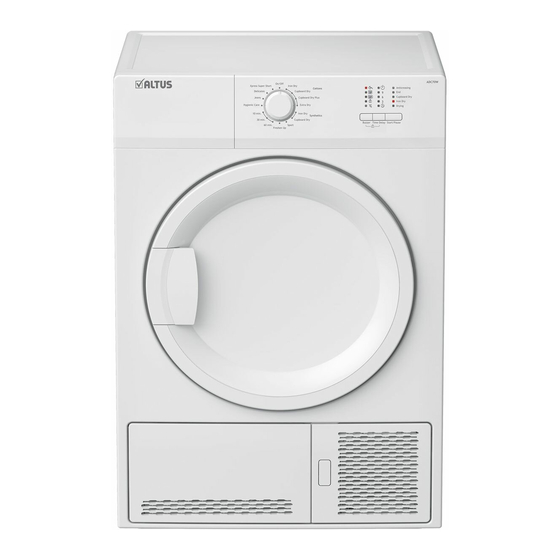

Your Dryer 2.1 Overview 1. Top panel 2. Control panel 3. Loading door 4. Kick plate opening button 5. Ventilation grids 6. Adjustable legs 7. Kick plate & *water tank (*located behind the kick plate ) 8. Type label 9. Lint filter 10. -
Page 13: Appropriate Installation Location
Installation Before the calling the nearest Authorized Do not place the dryer on the Service for the installation of the dryer, power cable. ensure that electrical installation and water drain is appropriate referring to the user’s 3.2 Removing the manual. If they are not suitable, contact a transportation safety qualified electrician and technician to make assembly... -
Page 14: Adjusting The Feet
Installation 3.4 Adjusting the feet • Turn the feet to left or right until the dryer stands level and firmly. 3.5 Transportation of the dryer Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections. -
Page 15: Preparing Laundry For Drying
Preparation 4.1 Laundry suitable for drying • Do not add wet laundry while the dryer is in operation in the dryer • For models with a condenser unit: clean Always obey the instructions given on the the condenser once in a month or after garment tags. - Page 16 Preparation Following weights are given as examples. Approximate Laundry weights (g)* Cotton quilt covers 1500 (double) Cotton quilt covers 1000 (single) Bed sheets (double) Bed sheets (single) Large tablecloths Small tablecloths Tea towels Bath towels Hand towels Blouses Cotton shirts Shirts Cotton dresses Dresses...
-
Page 17: Control Panel
Operating the product 5.1 Control Panel On/Off/Program selection button Start/Pause button End Time button 4. Audio warning level button 5.2 Symbols Child-proof Tank Filter Filter drawer / Mute On/O Timer lock Temperature full cleaning Heat exchanger Delay cleaning 5.3 Preparation of drying Select the desired program using the On/ Off/Program selection knob, the machine will machine... -
Page 18: Programme Selection And Consumption Tablee
Operating the product 5.4 Programme selection and consumption tablee Programmes Programme Description You may dry your cotton laundry to be ironed in Cottons Iron Dry this programme to have them slightly damp for 1000 ease ofironing. (Shirt, T-shirt, tablecloth, etc.) You may dry all your cotton laundry in this programme.(T-shirt, pants, pyjamas, baby Cottons Cupboard Dry... - Page 19 Operating the product It dries the shirts in a more sensitive manner, Delicates and causes less creasing and easier ironing. Dries shirts more delicately and thus causes less Xpress Super Short 1200 wrinkles for easy ironing. Energy consumption values Energy consumption value Energy rating Programmes Capacity (kg)
- Page 20 Operating the product 5.5 Auxiliary functions Cancelling the end time function If you want to cancel the end time Audible warning countdown and start the program Drying machine makes an audible warning immediately: when the program is completed. If you don’t Cancel the program by turning the On/Off/ want it to make an audible warning, press the Program selection knob.
-
Page 21: Changing The Program After It Is Started
Operating the product Adding and removing clothes during Press the End Time and Buzzer buttons simultaneously for 3 buttons to activate the stand-by child lock. If you want to add or remove clothes to/from The child lock has to be deactivated to be the drying machine after the drying program able to start a new program after the current starts:... -
Page 22: Cancelling The Program
Operating the product 5.10 Cancelling the program If you want to cancel the program and terminate the drying operation for any reason after the drying machine starts running, turn the On/Off/Cancel knob, the program will be cancelled. The inside of the drying machine shall be extremely hot when you cancel the program during machine operation, so run the... -
Page 23: Maintenance And Cleaning
Maintenance and cleaning Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals. 6.1 Lint Filter / Loading Door Inner Surface Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter. -
Page 24: Draining The Water Tank
Maintenance and cleaning To drain the water tank: Do not use metal tools when Remove the water tank in the drawer or cleaning metal surfaces of the container carefully. sensors. CAUTION: Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion! Drain the water in the tank. - Page 25 Maintenance and cleaning Pull out the condenser. 4. Clean the condenser by applying pressurized water with a shower armature and wait until the water drains. Place the condenser in its housing. Fasten the 2 locks and make sure that they are seated securely. Close the kick plate cover.
-
Page 26: Troubleshooting
Troubleshooting Drying operation takes too long. • Fibre filter pores might be clogged. >>> Wash the filter with warm water. • Filter drawer might be clogged. >>> Clean the sponge and filter cloth (if any) in the filter drawer. (for the products with a heat pump) •... - Page 27 Troubleshooting Clothes have shrunk, hardened or spoiled. • A program not suitable with the laundry type might have been used. >>> Check the maintenance labels on the clothes and select a program suitable for the clothes. The lighting inside the drying machine does not turn on. (For models with a lamp) •...
