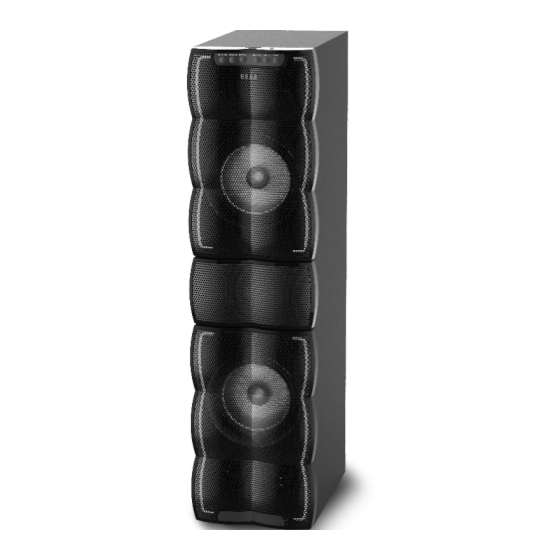

MULTIMEDIA SPEAKER SYSTEM
Thank you for choosing our product!
Please read the Manual carefully before using.
PLAYBACK CONTROLLER
1. /TUN-
2. /TUN+
3. ST-BY/
(1)
4. SOURCE
ST-BY/
5. VOLUME-
(3)
6. VOLUME+
(4)
ST-BY/PLAY/PAUSE-----Press to turn on speaker, long press
PLAY/PAUSE on the MEMORY CARD/BT mode.
SOURCE-----Change the input mode.
VOLUME-/+ -----Volume down/up.
TUNING+/NEXT -----Press once to increase the FM frequency 0.1M,
long press to the semi-automatic search for radio.
In MEMORY CARD/BT mode, press " NEXT " play
next song.
TUNING-/PREVIOUS -----Press once to reduce the FM frequency 0.1M,
long press to the semi-automatic search for
radio. In MEMORY CARD/BT mode, press
"PREVIOUS " play previous song.
PS-2643
SOURCE /TUN- /TUN+ VOL- VOL+
into stand-by.
NO.2

SPECIFICATIONS

Output Power (RMS):80 Watts + 30 Watts X 2
Power Supply: ~110V 60Hz
Speaker Units: 2 X 6.5" Woofer, 4 X 2.5" Tweeter
Distortion Rate
Speaker: W215xH820xD279 (mm)
Ÿ High-Quality Multimedia Speaker with built-in Amplifier.
Ÿ
Full Audio Spectrum Performance, Ideal for your Favorite Entertainments
Ÿ
Specially Designed Woofer Cabinet For Excellent Performance of Bass
Ÿ
Remote Controller & 3.5mm Stereo Cable included
Package Contents:
Speaker
Wired Microphone
Remote Controller
3.5mm Input Cable
FM Antenna
User Manual
How to use the remote control HOW TO USE THE REMOTE CONTROLLER?
(1)
(2)
SOURCE LED
(3)
TONE MEMORY
(4)
TUNE- TUNE+
(5)
VOL+
(2)
(6)
(7)
VOL-
(6)
(8)
(5)
1. Press "ST-BY" LED showing "AU18", it is AUX mode playing state.
2. "MUTE" means to activate or deactivate mute.
3. "SOURCE" means you can choose AUX, Multi-media, MEMORY CARD,
FM, BT input mode, at the same time, the LED will show "Au18" means AUX
mode, "Du18" means Multi-media mode. "87.5" means FM mode, "Bl18"
means BT mode.
4. "TONE" means you can choose "TREBLE" and "BASS" "VOL+/-" means
you can increase or decrease volume of " TREBLE " or "BASS".
5. When enter into FM mode, press "MEMORY" the number on the LED will
Blink. this means the machine is under save channel state. You can change
the blinking number by pressing "NEXT" or "PREV", press "PLAY/PAUSE"
you can save the channel into same number. it will enter into automatic search
channel and automatic save channel when pressing "MEMORY" for 3-5
seconds (noted: the channel which you saved before will be deleted when you
press "MEMORY" for 3-5 seconds.
Woofer 20Hz - 170Hz
Tweeter 120Hz - 20KHz
1 PCS
1 PCS
1 PCS
1 PCS
1 PCS
1 PCS
NO.1
1. ST-BY
(9)
2. SOURCE
(10)
3. TONE
(11)
4. TUNING-
(12)
5. VOL+
(13)
6. PREVIOUS
(14)
7. VOL-
8. 0~9
9. MUTE
10. LED effect
11. MEMORY
12.TUNING+
13. PLAY/PAUSE
14. NEXT
NO.3
