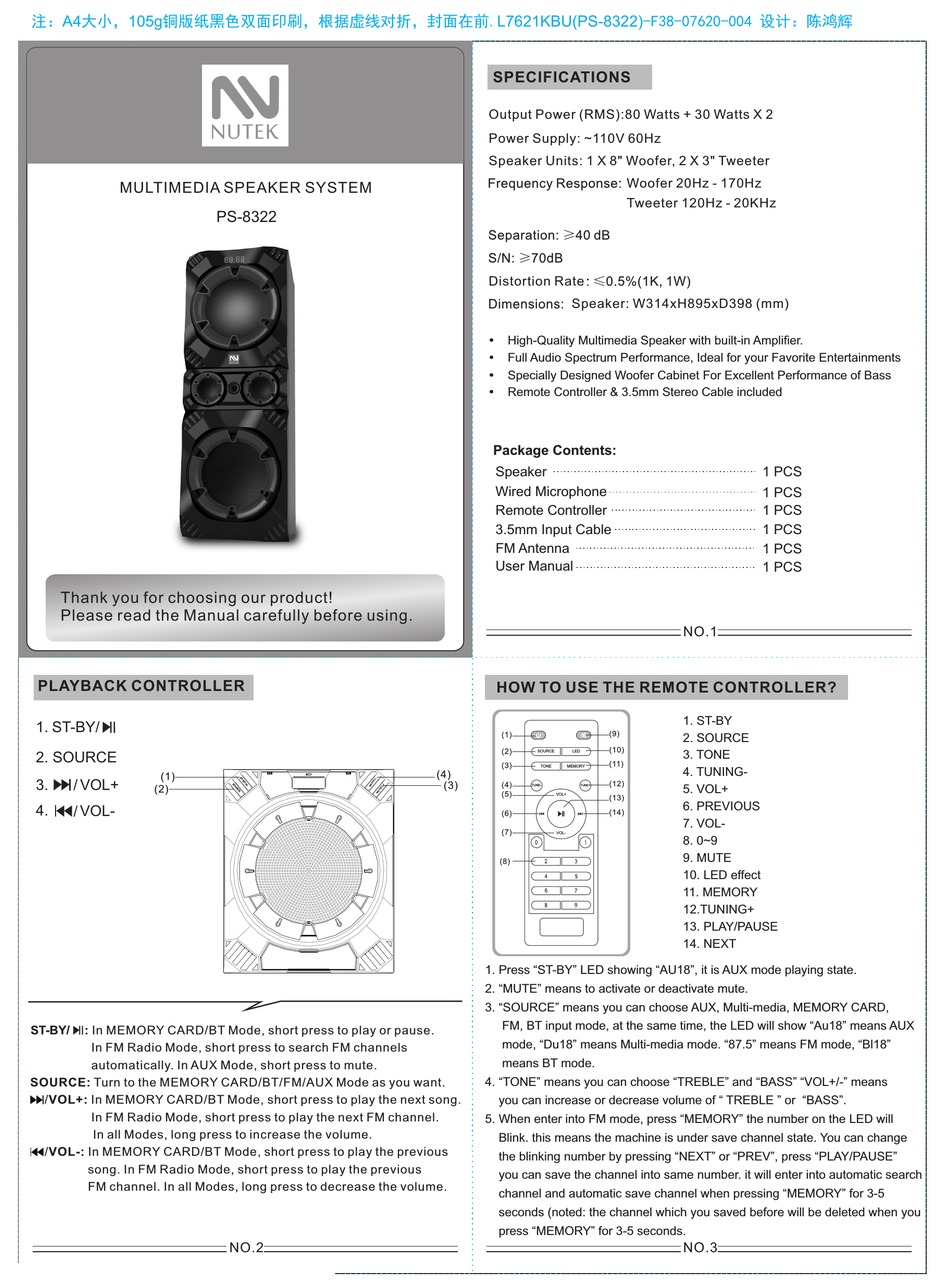

Nutek PS-8322 User Manual

注：A4大小，105g铜版纸黑色双面印刷，根据虚线对折，封面在前.L7621KBU(PS-8322)-F38-07620-004 设计：陈鸿辉
MULTIMEDIA SPEAKER SYSTEM
Thank you for choosing our product!
Please read the Manual carefully before using.
PLAYBACK CONTROLLER
1. ST-BY/
2. SOURCE
(1)
3. / VOL+
(2)
4. / VOL-
ST-BY/ : In MEMORY CARD/BT Mode, short press to play or pause.
In FM Radio Mode, short press to search FM channels
automatically. In AUX Mode, short press to mute.
SOURCE: Turn to the MEMORY CARD/BT/FM/AUX Mode as you want.
/VOL+: In MEMORY CARD/BT Mode, short press to play the next song.
In FM Radio Mode, short press to play the next FM channel.
In all Modes, long press to increase the volume.
/VOL-: In MEMORY CARD/BT Mode, short press to play the previous
song. In FM Radio Mode, short press to play the previous
FM channel. In all Modes, long press to decrease the volume.
PS-8322
NO.2

SPECIFICATIONS

Output Power (RMS):80 Watts + 30 Watts X 2
Power Supply: ~110V 60Hz
Speaker Units: 1 X 8" Woofer, 2 X 3" Tweeter
Distortion Rate
Speaker: W314xH895xD398 (mm)
Ÿ High-Quality Multimedia Speaker with built-in Amplifier.
Ÿ
Full Audio Spectrum Performance, Ideal for your Favorite Entertainments
Ÿ
Specially Designed Woofer Cabinet For Excellent Performance of Bass
Ÿ
Remote Controller & 3.5mm Stereo Cable included
Package Contents:
Speaker
Wired Microphone
Remote Controller
3.5mm Input Cable
FM Antenna
User Manual
How to use the remote control HOW TO USE THE REMOTE CONTROLLER?
(9)
(1)
(10)
(2)
SOURCE LED
(11)
(3)
TONE MEMORY
(4)
(12)
(3)
(4)
TUNE- TUNE+
(5)
VOL+
(13)
(14)
(6)
(7)
VOL-
(8)
1. Press "ST-BY" LED showing "AU18", it is AUX mode playing state.
2. "MUTE" means to activate or deactivate mute.
3. "SOURCE" means you can choose AUX, Multi-media, MEMORY CARD,
FM, BT input mode, at the same time, the LED will show "Au18" means AUX
mode, "Du18" means Multi-media mode. "87.5" means FM mode, "Bl18"
means BT mode.
4. "TONE" means you can choose "TREBLE" and "BASS" "VOL+/-" means
you can increase or decrease volume of " TREBLE " or "BASS".
5. When enter into FM mode, press "MEMORY" the number on the LED will
Blink. this means the machine is under save channel state. You can change
the blinking number by pressing "NEXT" or "PREV", press "PLAY/PAUSE"
you can save the channel into same number. it will enter into automatic search
channel and automatic save channel when pressing "MEMORY" for 3-5
seconds (noted: the channel which you saved before will be deleted when you
press "MEMORY" for 3-5 seconds.
Woofer 20Hz - 170Hz
Tweeter 120Hz - 20KHz
1 PCS
1 PCS
1 PCS
1 PCS
1 PCS
1 PCS
NO.1
1. ST-BY
2. SOURCE
3. TONE
4. TUNING-
5. VOL+
6. PREVIOUS
7. VOL-
8. 0~9
9. MUTE
10. LED effect
11. MEMORY
12.TUNING+
13. PLAY/PAUSE
14. NEXT
NO.3
