Next MALVERN 190699 Assembly Instructions Manual

Malvern grey/new malvern cream square to rectangle dining table

Advertisement

Quick Links

Actual product size

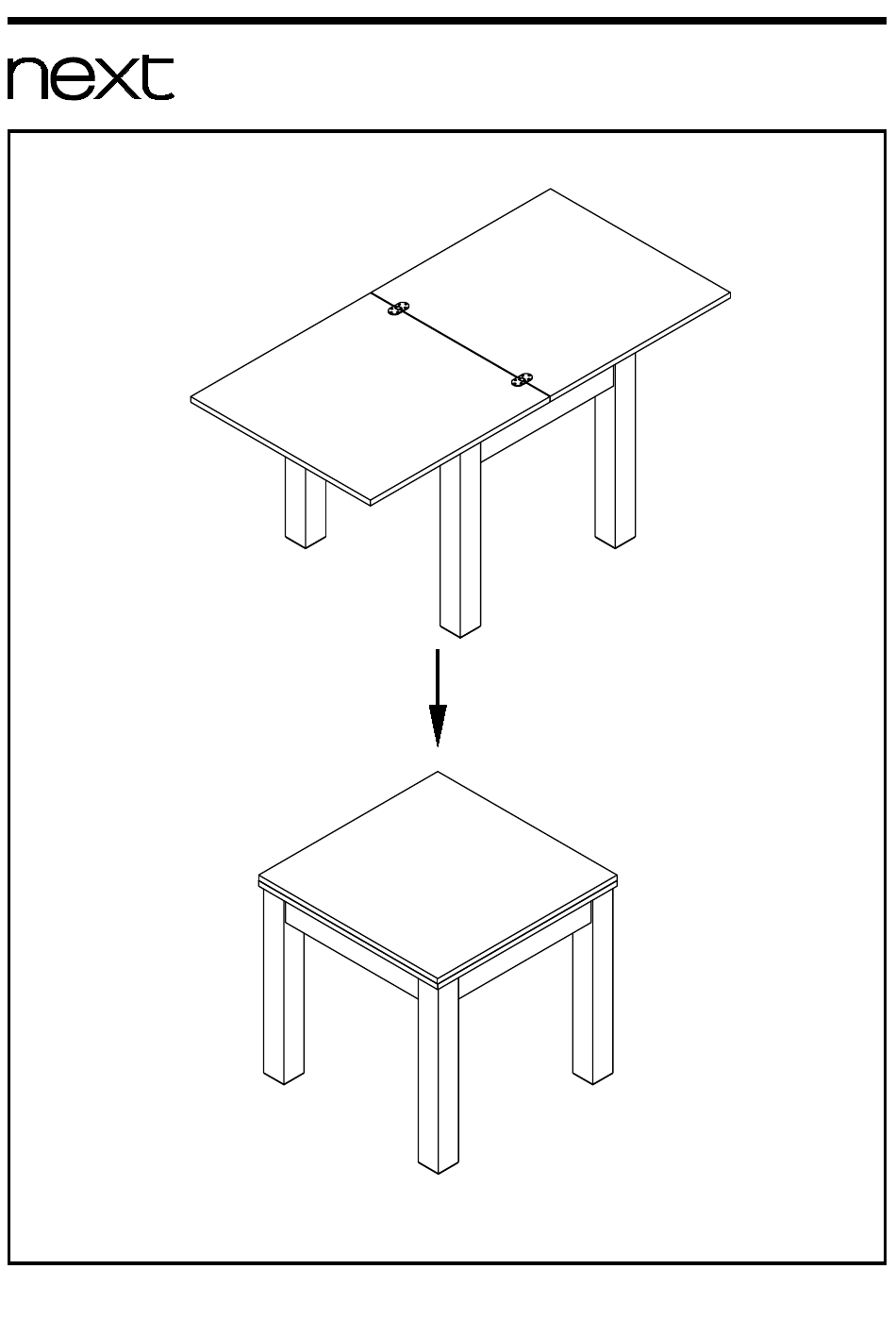

H74 x W150x D75cm
H76 x W75x D75cm
IMPORTANT - RETAIN FOR FUTURE REFERENCE
Produced in China for Next Retail Ltd.
190699/393214 -2017-V1.
MALVERN GREY/NEW MALVERN CREAM SQUARE TO RECTANGLE DINING TABLE
190699/393214
Assembly instructions
Need Help ?
With: Assembly instruction
Missing or damaged parts
CALL: 0333 777 8999
