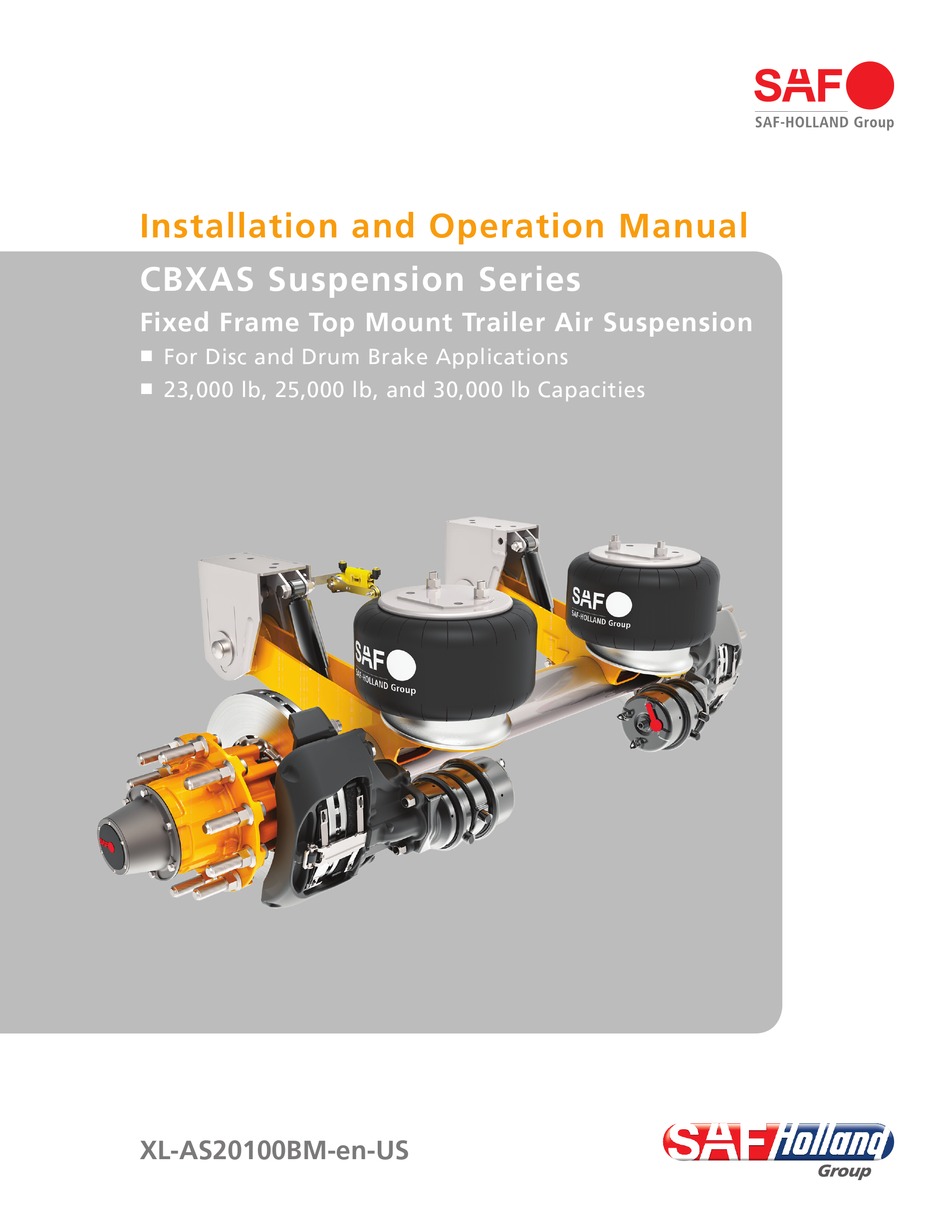

- Page 1 Installation and Operation Manual CBXAS Suspension Series Fixed Frame Top Mount Trailer Air Suspension For Disc and Drum Brake Applications „ „ 23,000 lb, 25,000 lb, and 30,000 lb Capacities „ „ XL-AS20100BM-en-US...
-
Page 2: Table Of Contents
A copy of the written warranty is included with the product or available on the internet at www.safholland.com. XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 3: Section 1 - General Safety Instructions
Only the wheel and tire sizes approved by the trailer „ „ builder can be used. continued XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. - Page 4 XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.
-
Page 5: Section 2 - Standard Decal Requirements
XL-AS20085DC-en-US Rev A Copyright © 2018 • SAF-HOLLAND ® , Inc. XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 6: Section 3 - Cbxas Series Model Identification
Axle Capacity: 25,000 Lbs. Aero Beam Standard 5.75" Diameter Premium Axle Cast Beam Suspension XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 7: Section 5 - Welding Standards
IS NOT ACCEPTABLE AT FROM INTERSECTION OF FILLET ANY TIME AS ILLUSTRATED TARGET PENETRATION XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 8: Section 6 - Standard Air Control System Installation
TO HEIGHT CONTROL VALVE (HCV) AIR SPRING AIR SPRING HEIGHT CONTROL VALVE (HCV) AIR SPRING XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 9: Section 7 - Suspension Assembly Installation
Figure 10 “A” RIDE HEIGHT XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 10: Section 8 - Ride Height Adjustment
90° OR LESS AT HEIGHT RIDE HEIGHT CONTROL VALVE LINKAGE LOWER AXLE MOUNTING BRACKET XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. - Page 11 14. Remove the wheel chocks. XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.
-
Page 12: Section 9 - Swingalign™ Axle Alignment
1-11/16" socket wrench and torque to 550-600 ft.-lbs. (746-813 N•m). ALIGNMENT PLATES XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 13: Section 10 - Brake Adjustment Instructions
SAF-HOLLAND Disc Brake Service Manuals, XL-SA20018UM-en-US - P89 NEW and XL-SA20024UM-en-US - P89 PLUS. XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 14: Section 11 - Pre-Operation Information
UPPER SHOCK ABSORBER NUT HEIGHT CONTROL VALVE AIR SPRING MOUNTING NUT AIR SPRING PAN HEAD TORSION BOLT SHOCK ABSORBER XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 15: Section 12 - Maintenance And Service Schedule
Repair, tighten or replace damaged part(s) to prevent equipment breakdown. XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. -
Page 16: Section 13 - Torque Specifications
XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc. - Page 17 Notes XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.
- Page 18 Notes XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.
- Page 19 Notes XL-AS20100BM-en-US · 2020-12-21 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF, and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.
- Page 20 SAF-HOLLAND Original Parts are tested and designed to provide maximum performance and durability. Will-fits, look-alikes or, worse yet, counterfeit parts will only limit the performance potential and could possibly void SAF-HOLLAND’s warranty. Always be sure to spec SAF-HOLLAND Original Parts when servicing your SAF-HOLLAND product.
