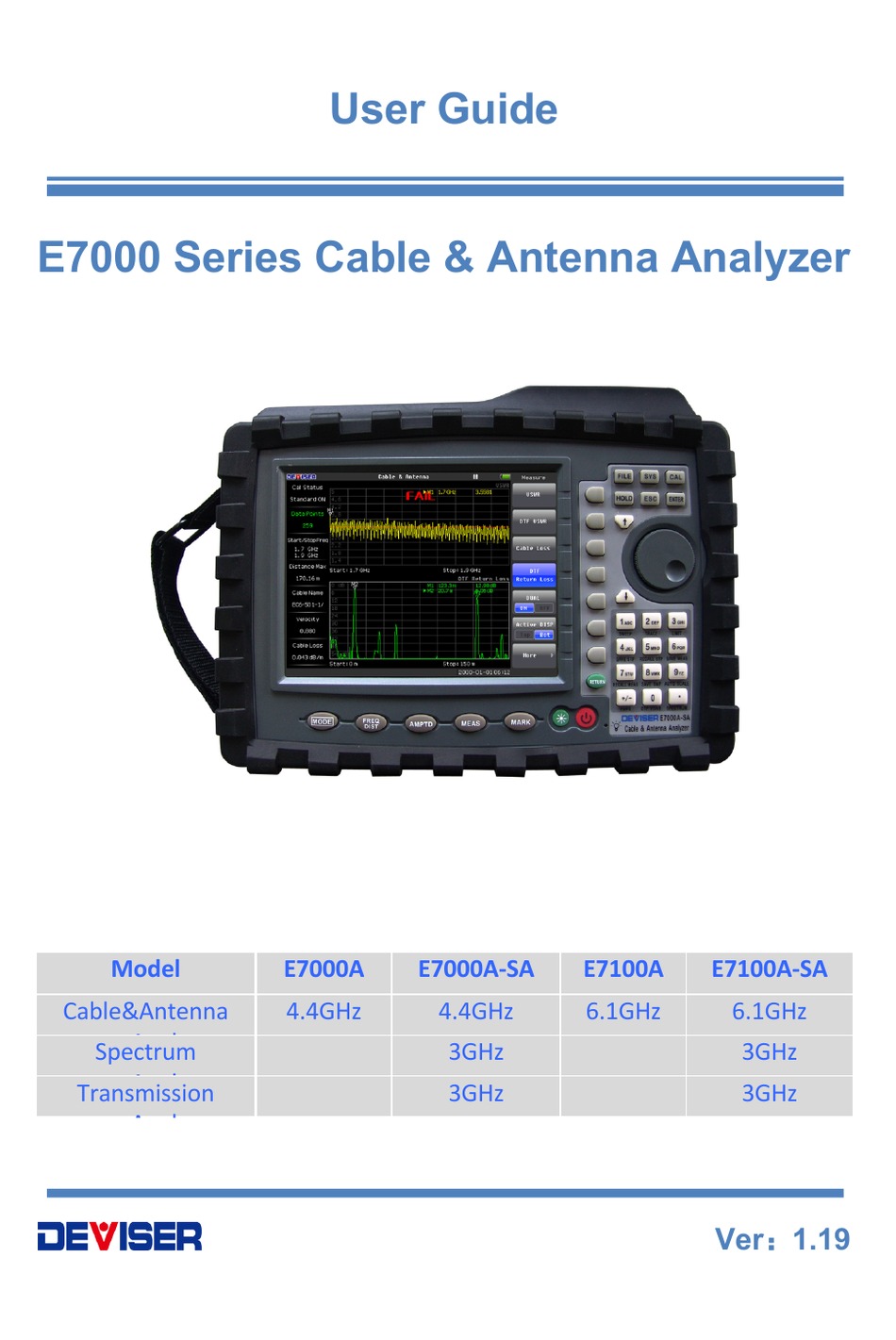

- Page 1 User Guide E7000 Series Cable & Antenna Analyzer Model E7000A E7000A-SA E7100A E7100A-SA Cable&Antenna 4.4GHz 4.4GHz 6.1GHz 6.1GHz Analyzer Spectrum 3GHz 3GHz Analyzer Transmission 3GHz 3GHz Analyzer Ver ! 1.19...
- Page 3 E7000 Series Cable & Antenna Analyzer User Guide Conventions This manual has the following conventions for presenting information. WARNING: A warning alerts you to any condition that could cause personal injury. CAUTION: A caution alerts you to any condition that could cause a mechanical failure or potential loss of data.
- Page 4 C. Defects caused by unauthorized repair. D. Defects caused by the instrument worked beyond the required technology specification. Updates Updates, if any, can be downloaded from the Deviser web site at:http://www.deviserinstruments.com Deviser Part No.: DK11820E7000 © Tianjin Deviser Electronics Instrument Co., Ltd.
-
Page 5: Table Of Contents
E7000 Series Cable & Antenna Analyzer User Guide Table of Contents General Information ................1 1.1 Introduction ..................2 1.2 Available Models .................. 2 1.3 Available Options ................. 3 1.4 Standard Accessories ................ 3 1.5 Preventive Maintenance ..............4 1.6 Calibration Requirements&Annual Verification ........4 1.7 ESD Caution .................. - Page 6 E7000 Series Cable & Antenna Analyzer User Guide 4.8 Files type .................... 39 System Operations ................40 5.1 Introduction ..................40 5.2 System Menu Overview ..............40 5.3 System Menu ..................42 5.4 System Options Menu ................ 43 5.5 Display Setup Menu ................45 5.6 System Test Menu ................
-
Page 7: General Information
E7000 Series Cable & Antenna Analyzer User Guide 1 General Information This chapter provides information about the following items. ● Introduction ● Available Models ● Available Options ● Standard Accessories ● Preventive Maintenance ● Calibration Requirements&Annual Verification ● ESD Caution ●... -
Page 8: Introduction
E7000 Series Cable & Antenna Analyzer User Guide 1.1 Introduction E7000 Series Cable & Antenna Analyzer with integrated spectrum analyzer , reduces per site maintenance expense, maximizes system up-time, and breaks away from the traditional fix-after-failure maintenance mode by finding small problems before major failures occur. E7000 Series performs... -
Page 9: Available Options
E7000 Series Cable & Antenna Analyzer User Guide 1.3 Available Options E7000 E7100 Description E7000-0010 E7100-0010 Transmission Measurement E7000-0030 E7100-0030 GPS receiver(Including antenna) Table 1-2. Available Options 1.4 Standard Accessories .Part Number Description E7000-0100 User Guide E7000-0110 Quick Guide C50N-P N(male) type standard calibration kits 1.5m N(male)-N(female) type RF cable... -
Page 10: Preventive Maintenance
E7000 Series Cable & Antenna Analyzer User Guide 1.5 Preventive Maintenance E7000 series preventive maintenance include the unit surface cleaning, RF connectors and all accessories cleaning. Clean unit surface with a soft, lint-free cloth dampened with water. NOTICE ： To avoid damaging the display or case, do not use solvents or abrasive cleaners. -
Page 11: Battery Replacement
60 Watts at 12 VDC, and the socket is clean without any dirt or debris. If the adapter plug becomes hot to the touch during charging, Please discontinue use immediately. NOTE ： Deviser recommends removing the battery for long-term storage of the instrument. -
Page 12: Soft Carrying Case
E7000 Series Cable & Antenna Analyzer User Guide 1.9 Soft Carrying Case The E7000 can be operated while in the soft carrying case. On the back of the case is a large storage pouch for accessories and power supply. Figure1-2. Instrument Inserted into the Soft Carrying Case To install the instrument into the soft carrying case: 1. -
Page 13: Instrument Overview
E7000 Series Cable & Antenna Analyzer User Guide 2 Instrument Overview This chapter provides a brief overview of the E7000 Series Cable & Antenna Analyzer. The intent of this chapter is to acquaint the user with the instrument. For detailed measurement information, refer to a specific measurement guide listed in “Measurement Guides”. -
Page 14: Turning On The Instrument
E7000SA/E7100SA models are capable of approximately 3 hours of continuous operation from a fully charged, field-replaceable battery. The E7000 Series can also be operated from a 12 Vdc source (which will also simultaneously charge the battery). This can be achieved with either the AC-DC Adapter or Automotive Cigarette Lighter Adapter .Both items are... -
Page 15: Front Panel Overview
E7000 Series Cable & Antenna Analyzer User Guide 2.2 Front Panel Overview The E7000 Series menu-driven interface is easy to use and requires little training. The E7000 uses the keypad for data input. The five main menu keys below the screen and eight submenu keys on the right side are menu keys. - Page 16 E7000 Series Cable & Antenna Analyzer User Guide Sub-Menu Keys There are eight keys that change function depending upon the current mode selection. The current key function is indicated in the soft key menu area on the right side of the screen.
- Page 17 E7000 Series Cable & Antenna Analyzer User Guide Measurement Function Keys Measurement function keys are active when the instrument is not in parameter edit mode. SWEEP Press this key to set sweep type, points, RF immunity, RBW, data averaging and data smoothing etc.
- Page 18 E7000 Series Cable & Antenna Analyzer User Guide VSWR Implement the VSWR measurement. RETURN LOSS Implement the RETURN LOSS measurement. CABLE LOSS Implement the CABLE LOSS measurements. DTF VSWR Implement the DTF–VSWR measurement. DTF RL Implement the DTF–Return Loss measurement.
-
Page 19: Test Panel Connector Overview
E7000 Series Cable & Antenna Analyzer User Guide 2.3 Test Panel Connector Overview The connectors and indicators located on the test panel (Figure 2-2) are listed and described below. USB Mini-B Type LAN port External USB A-Type DC Out RF Output... - Page 20 E7000 Series Cable & Antenna Analyzer User Guide RF In 50ΩType-N female connector. Maximum input is +30 dBm at ±50 VDC. RF Out/Reflection In RF output, 50Ωimpedance, for reflection measurements. Maximum input is +25 dBm at ±50VDC.
-
Page 21: Display Overview
E7000 Series Cable & Antenna Analyzer User Guide 2.4 Display Overview Figure 2-3 describes Antenna measurement mode, DTF – the return loss measurement type at some of the important information. Parameter Frequency Test Result Measurement Setting standard Indicatoin Type Trace Title... -
Page 22: Menu Operation
E7000 Series Cable & Antenna Analyzer User Guide 2.5 Menu Operation There are 7 typical menus and each is described below in detail. Setting Parameters Press the corresponding menu, and the parameter shows in the middle of the screen. Use the numeric keys, arrow keys or Rotary Knob to set the parameter,and press the Enter key to exit. - Page 23 E7000 Series Cable & Antenna Analyzer User Guide Implement the menu function Press menu implement corresponding function. Select to implement function Press the menu key and select a submenu to implement the corresponding function and then return to previous menu.
-
Page 24: Symbols And Indicators
E7000 Series Cable & Antenna Analyzer User Guide 2.6 Symbols and Indicators The following symbols and indicators indicate the instrument status or condition on the display. Calibration Symbols The current calibration status and type is displayed when in Cable & Antenna Analyzer mode. - Page 25 E7000 Series Cable & Antenna Analyzer User Guide When operating from external power without a battery installed, the battery symbol is replaced by a plug body, as shown in Figure 2-4. Figure 2-4 Battery Not Installed Other Symbols ☆ Network Connection: The instrument is communicating with PC via the LAN port ☆...
-
Page 26: Data Entry
E7000 Series Cable & Antenna Analyzer User Guide 2.7 Data Entry Parameter Setting You can set parameters with the numeric keys， the arrow keys and the rotary knob. It is simple to change the parameters quickly with the arrow keys.. You can change the parameter continuously with the rotary knob. - Page 27 E7000 Series Cable & Antenna Analyzer User Guide Figure 2-5 Measurement Mode Selection...
-
Page 28: Quick Start Guide
E7000 Series Cable & Antenna Analyzer User Guide 3 Quick Start Guide 3.1 Introduction This chapter provides a brief overview of the E7000's basic measurement setup. 3.2 Cable & Antenna Analyzer mode Set the instrument to Cable & Antenna Analyzer mode as described in the previous section. - Page 29 E7000 Series Cable & Antenna Analyzer User Guide Set the Frequency Ø 1. Press the FREQ DIST main menu key. 2. Press the Start Freq submenu key and use the keypad, rotary knob, or the arrow keys to enter the start frequency.
- Page 30 E7000 Series Cable & Antenna Analyzer User Guide selected marker, Toggle the Delta On/Off submenu key to turn on the Delta marker. Auto Markers Ø When making Return Loss and VSWR measurements, the Peak/Valley Auto feature can be used to automatically turn on Marker 1 to peak, Marker 2 to valley, and display M1 and M2 in the Marker Table.When making DTF...
- Page 31 E7000 Series Cable & Antenna Analyzer User Guide 1. Press the MODE main menu key and then press the Cable & Antenna submenu key. 2. Select DTF VSWR or DTF Return Loss mode, the default Start Distance is set 0 .
-
Page 32: Spectrum Analyzer
E7000 Series Cable & Antenna Analyzer User Guide 3.3 Spectrum Analyzer SSet the instrument to Spectrum Analyzer mode as press MODE key, and then choose Spectrum Analyzer. Measurement Style Ø Press MEAS key to display the measurement style, shown in Figure 3-2. - Page 33 E7000 Series Cable & Antenna Analyzer User Guide 5. Enter the desired stop frequency. Enter the Center Frequency Ø 1. Press the FREQ/DIST main menu key. 2. Press the Center Freq submenu key. 3. Enter the desired center frequency using the keypad, the arrow keys, or the rotary knob.
- Page 34 E7000 Series Cable & Antenna Analyzer User Guide bandwidth and video bandwidth ratio. Set the Amplitude Ø Press the AMPTD main menu key to display the Amplitude menu. Set Amplitude Reference Level and Scale Ø 1. Press the Ref Level submenu key and use the arrow keys, rotary, or the keypad to change the reference level.Press ENTER to set the...
- Page 35 E7000 Series Cable & Antenna Analyzer User Guide Set the Marker Table Ø 1. Press the MARK main menu key to display the Marker menu. 2. Press the More submenu key. 3.Press the Mkr Table submenu key to display or close the marker table.
- Page 36 E7000 Series Cable & Antenna Analyzer User Guide 1. Press the MARK main menu key. 2. Press the More submenu key. 3. Press the Counter Mkr submenu key to open or close the frequency counter. Single Limit Line Ø 1. Press the LIMIT menu key to display the Limit menu.
-
Page 37: File Management
E7000 Series Cable & Antenna Analyzer User Guide 4 File Management 4.1 Introduction This chapter will review the file management features of the E7000 and detail the FILE menu. The instrument has functions which can antomatic storage patameters. Each turn on the instrument, which will automatically recover the pre-shutdown state, therefore, it simplifies the setting work. -
Page 38: Managing Files
E7000 Series Cable & Antenna Analyzer User Guide 4.2 Managing Files File Manage Figure 4-1 File Manage... - Page 39 E7000 Series Cable & Antenna Analyzer User Guide File Type File Type Suffix File Type Suffix Measurement files - .SWR Measurement files - .PHA VSWR Phase Measurement files - .RTL Measurement files - .SMI Return loss Smith Chart Measurement files - .CBL...
-
Page 40: File Menu Overview
E7000 Series Cable & Antenna Analyzer User Guide 4.3 File Menu Overview Open this menu by pressing the FILE key, the overall structure of the File menu: Figure 4-2 File Menu Overview... -
Page 41: File Menu
E7000 Series Cable & Antenna Analyzer User Guide 4.4 File Menu Key Sequence： FILE Save Setup: This key will save the current setup with a user defined file name. The file name is changed using the numeric keys which only be based on letters, numbers and spaces,then press ENTER to save this file. -
Page 42: Recall Menu
E7000 Series Cable & Antenna Analyzer User Guide 4.5 Recall Menu Key Sequence： FILE > Recall Sort By: Press this submenu key to sort file by the file name, or by the date that the file was saved. Sort Order: Displays the file in ascending or descending order based on the selection in the Sort By key. -
Page 43: Copy Menu
E7000 Series Cable & Antenna Analyzer User Guide 4.6 Copy Menu Key Sequence： FILE > Copy Sort By ： Press this submenu key to sort file by name, by the date that the file was saved. Sort Order： Display the file in ascending or descending order based on the selection in the Sort By key. -
Page 44: Delete Menu
E7000 Series Cable & Antenna Analyzer User Guide 4.7 Delete Menu Key Sequence： FILE > Delete Sort By ： Press this submenu key to sort file by name, by the date that the file was saved. Sort Order：Display the file in ascending or descending order based on the selection in the Sort By key. -
Page 45: Files Type
E7000 Series Cable & Antenna Analyzer User Guide 4.8 Files type Key Sequence： FILE > Recall > File Type Measurement FILE > Copy > File Type Measurement FILE > Delete > File Type Measurement Setup: The configuration file contains: the measurement mode of the instrument, frequency, distance, marker, and other parameters and calibration data.In this way, when... -
Page 46: System Operations
E7000 Series Cable & Antenna Analyzer User Guide 5 System Operations 5.1 Introduction This chapter will review the E7000 system operations,which the main including system configuration , service functions and other operations, such as language and clock setup, network setup, system testing, system information,system upgrade, and so on. - Page 47 E7000 Series Cable & Antenna Analyzer User Guide Figure 5-2 System Menu Overview Figure 5-3 System Menu Overview...
-
Page 48: System Menu
E7000 Series Cable & Antenna Analyzer User Guide 5.3 System Menu Key Sequence： SYS SYS Setup: Press this submenu key to go to the next level " Setup" submenu. See 5.4. SYS Test: Press this submenu key to go to the next level "Test"... -
Page 49: System Options Menu
E7000 Series Cable & Antenna Analyzer User Guide 5.4 System Options Menu Key Sequence： SYS > SYS Setup Language: This submenu key brings up a selection submenu allowing selection from a menu of built-in languages for the E7000 displays. The languages currently available are English and Chinese. - Page 50 E7000 Series Cable & Antenna Analyzer User Guide this beep status by submenu in order to meet their needs. Display ：See the display setup menu. Confirm ： This key brings up a submenu to confirm some important operations to prevent pressing the wrong button by the users.
-
Page 51: Display Setup Menu
E7000 Series Cable & Antenna Analyzer User Guide 5.5 Display Setup Menu Key Sequence： SYS > SYS Setup > Display DISP Style ： Press this submenu to enter the display style submenu and set the display style. Four display styles: modern, salubrious, high contrast and night. - Page 52 E7000 Series Cable & Antenna Analyzer User Guide If you need to restore the initial factory state color scheme, press "Reset Color" submenu to complete. Menu Hold ： By this option, the users can set to keep time for the menu on the screen. There are five options: 3 seconds, 5 seconds, 10 seconds, 30 seconds and always.
-
Page 53: System Test Menu
E7000 Series Cable & Antenna Analyzer User Guide 5.6 System Test Menu Key Sequence: SYS > SYS Test Display ： . This menu function is that the color of the screen will turn all white, all black, all red, all green, and all blue, which can detect the existence of the dead pixels. -
Page 54: System Upgrade Menu
E7000 Series Cable & Antenna Analyzer User Guide 5.7 System Upgrade Menu Key Sequence： SYS > SYS Update The upgrade folder exists in the root directory of U disk. U disk insert into the equipment USB port, press the menu to enter the upgrade submenu, then choose whether to upgrade. -
Page 55: Help Menu
E7000 Series Cable & Antenna Analyzer User Guide 5.8 Help Menu Key Sequence： SYS > Help Press the submenu About key to display the informations of the equipment system, including: the equipment name, OS version information, software version information, DSP Version information, serial number, Cable &Antenna frequency range, battery capacity, the system current... - Page 56 E7000 Series Cable & Antenna Analyzer User Guide Press the submenu Quick Start Guide key to display the Quick Start Guide, describe the basic steps. Figure 5-5 System Menu Overview...
-
Page 57: Print Menu
E7000 Series Cable & Antenna Analyzer User Guide 5.9 Print Menu Key Sequence： SYS > Print Start： Press the submenu to print the current displayed screen informations. Before you start printing, make sure what the printer is connected and whether select the correct printer model. -
Page 58: Select Printer Menu
E7000 Series Cable & Antenna Analyzer User Guide 5.10 Select Printer Menu Key Sequence： SYS >Print> Config Printer Switch: Press this submenu to switch between “vendors” and “device”.Using the rotary knob or arrow keys to select a specific manufacturer and printer model. Enter key can also perform the same function. -
Page 59: Software Tool
This chapter provides a brief overview of Site Workbench. For detailed information, refer to the “Site WorkBench” Manual The Deviser “Site WorkBench” Software Tools is a Microsoft Windows 2000, Windows XP and Windows 7 compatible program for transferring and editing saved measurements, markers, and limit lines to a PC. -
Page 60: Install Site Workbench
E7000 Series Cable & Antenna Analyzer User Guide Superimposed Trace Ø This feature allows multiple traces compared. 6.3 Install Site Workbench Site Workbench is provided on the CD-ROM included with the equipment. Insert the CD-ROM into a PC to run the installer.Follow the onscreen instruction. -
Page 61: Specifications
E7000 Series Cable & Antenna Analyzer User Guide 7 Specifications 7.1 Cable & Antenna Analyzer E7000A E7100A VSWR Return Loss Cable Loss Measurement Distance-to-Fault (DTF) Return Loss Distance-to-Fault (DTF) VSWR 1-Port Phase Smith Chart Frequency range 25MHz ~ 4400MHz 25MHz ~ 6000MHz 1kHz（25MHz～4.4GHz）... -
Page 62: Spectrum Analyzer
E7000 Series Cable & Antenna Analyzer User Guide VSWR range 1-65 0 to (data points-1)/(span×2) × Vp × C Length Span=frequency range Resolution (m) =Vp × C /(span×2) Data points 130,259,517,2065 RF output port Nf type Impedance 50Ω Display 6.5” TFT LCD, 640*480 1 USB2.0, 1 mini USB... - Page 63 E7000 Series Cable & Antenna Analyzer User Guide 1mSec to 250 sec (span > 200 Hz) Range 20 μSec to 500 sec (span = 0 Hz) Accuracy < ± 0.2% Trigger Type free run, single, video, TV Resolution Bandwidths Range...
- Page 64 E7000 Series Cable & Antenna Analyzer User Guide with > 1 MHz separation and att=0) Residual Responses (Input Terminated and < -85 dBm 1 MHz to 3000 MHz 0 dB Attenuator) Display Range 0.1 to 1 dB/div in 0.1 dB step 1 to 40 dB/div in...
- Page 65 E7000 Series Cable & Antenna Analyzer User Guide Deviser (China) Deviser (US) Address: No.8, Haitai Chuangxin 3 Road, Address: 780 Montague Expressway, Hi-tech Industrial Development Area, Suite 606,San Jose, CA 95131, USA Tianjin, China, 300392 Tel: +1 408 931 0948 Tel: +86 2764 5003 ext.803...
