VOTI XR3D Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

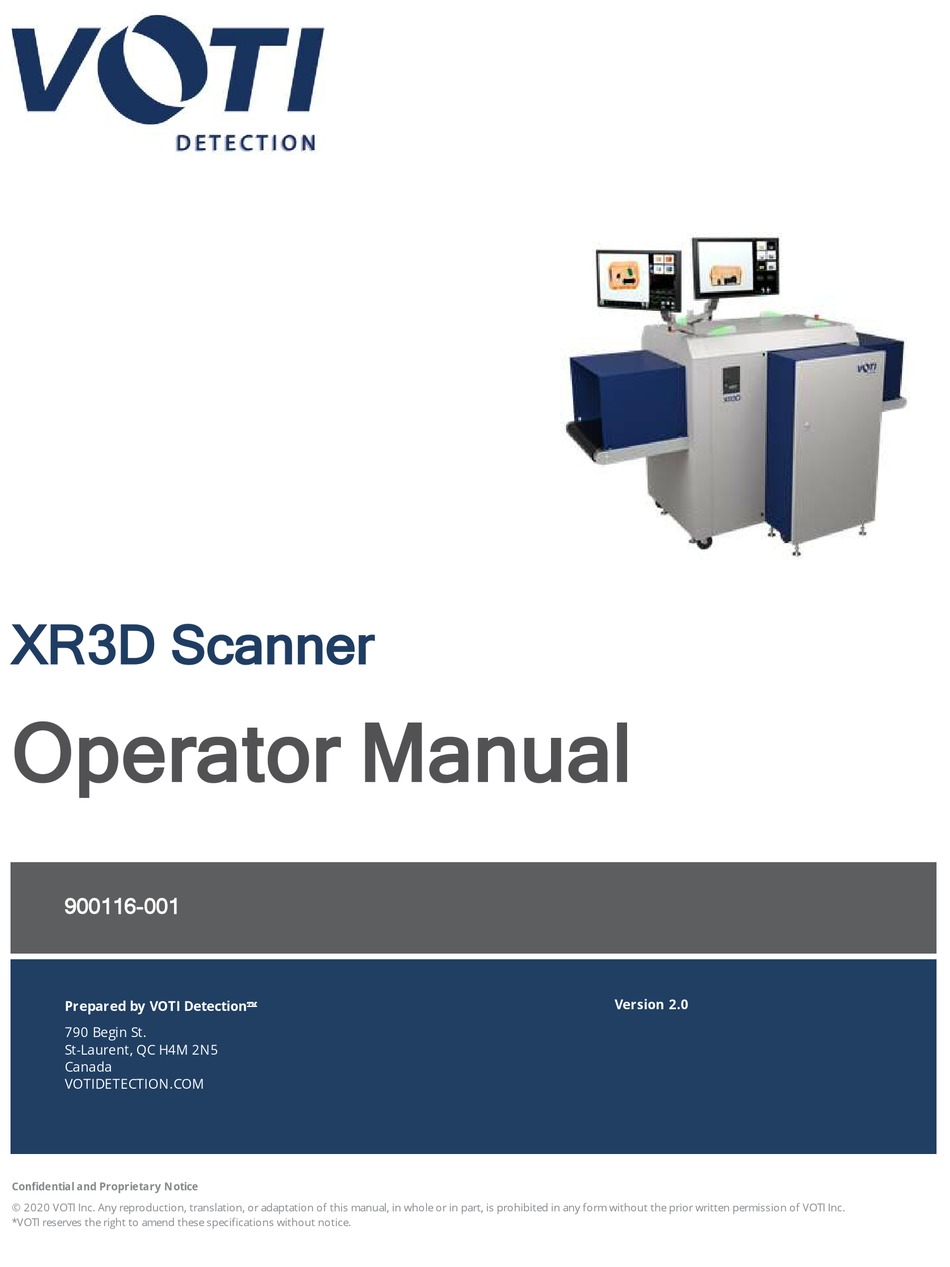

XR3D Scanner
Operator Manual
900116-001
Prepared by VOTI Detection
790 Begin St.
St-Laurent, QC H4M 2N5
Canada
VOTIDETECTION.COM
Confidential and Proprietary Notice
© 2020 VOTI Inc. Any reproduction, translation, or adaptation of this manual, in whole or in part, is prohibited in any form without the prior written permission of VOTI Inc.
*VOTI reserves the right to amend these specifications without notice.
™
Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR3D and is the answer not in the manual?

Questions and answers

Ali shareef
April 28, 2025

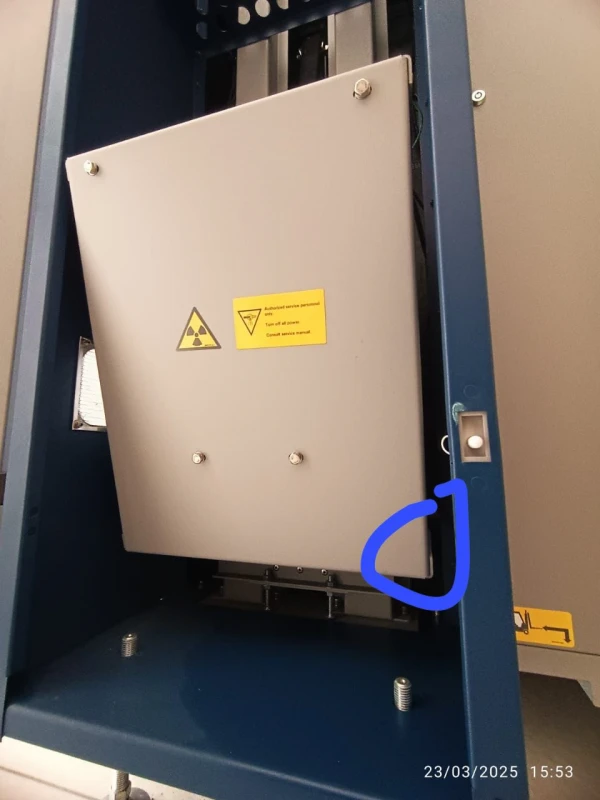

Im having a leakage issue in my voti machine, the image circle shows where the leak is coming from

User image 680fd9f47c4f4
0
1 comments:
Mr. Anderson
May 15, 2025

Common causes of leakage in the VOTI XR3D machine include:

1. Scattered radiation near the tunnel ends, which is normally contained by protective curtains.
2. Radiation escaping from the tunnel if the metal shrouds are damaged or missing.
3. System operating when safety conditions are not fully met, such as:
- Access panels not properly closed or locked.
- Operator not standing on the pressure-sensitive mat (if used).

These conditions can lead to improper containment of X-rays during operation.

This answer is automatically generated

0
MR.ALEXANDER
February 25, 2025

how to erase memory or reset storage?

0
1 comments:
Mr. Anderson
February 25, 2025

To erase memory or reset storage on the VOTI XR3D, transfer files to an external storage device. The steps are:

1. Select the files to transfer.
2. Transfer them to the external device.
3. The files will be erased from the unit's hard drive after transfer.
4. A folder named Backup_Archive_Date_Time will appear on the external device.

This process clears storage while preserving data on an external device.

This answer is automatically generated

0
Arojojoye sanjo
February 14, 2025

Bioscan login User name? Password?

0
1 comments:
Mr. Anderson
February 14, 2025

The username and password for the VOTI XR3D BioSans login are not provided in the available information. Users must enter an operator username and password assigned by the administrator to log in.

This answer is automatically generated

0
Robert Given
January 29, 2025

What is the overall system length and width of an XR3D

0
1 comments:
Mr. Anderson
February 10, 2025

The overall system length of the VOTI XR3D-6D is 2385 mm (93.9 inches), and the width is 1168 mm (46 inches).

This answer is automatically generated

0
David W Henry
April 23, 2025

What is this machine's Peak Energy in kVP

0

Subscribe to Our Youtube Channel

Related Manuals for VOTI XR3D

Summary of Contents for VOTI XR3D

  • Page 1 Confidential and Proprietary Notice © 2020 VOTI Inc. Any reproduction, translation, or adaptation of this manual, in whole or in part, is prohibited in any form without the prior written permission of VOTI Inc. *VOTI reserves the right to amend these specifications without notice.
  • Page 2 Disclaimer It is essential that all users are aware of the potential hazards associated with VOTI Detection scanners. Prior to operating the unit, all operators must pass VOTI Operator training to become familiar with the safety precautions and warnings outlined in the Safety section of this manual. Failure to follow the instructions in this manual, as well as other instructions by VOTI Detection personnel, which are intended to ensure a safe and reasonable operation of VOTI Detection products, may impair the equipment’s safety features.

  • Page 3: Table Of Contents

    5. Conducting a scan 5.1 Logging in as an operator 5.2 Scanning an object 5.3 Switching X-ray views 5.4 Retrieving an archived image 6. Administration module 6.1 Access rights 6.2 General Settings 6.3 User Management Operator Manual / © VOTI 2020 / 900116-001...
  • Page 4 6.10 Diagnostics 6.11 Software Versions 7. TIP management 7.1 General Settings 7.2 Access Management 7.3 Configuring the threat library 7.4 Viewing the output reports 8. Training module 8.1 TIP Operator Training Accident Investigation Report Operator Manual / © VOTI 2020 / 900116-001...

  • Page 5: Introduction

    1. Introduction The objective of this manual is to provide users with an overview of the key functions of the XR3D. The information will demonstrate how to operate the system and conduct a security scan. This manual provides a description of the user interface with instructions to help the user perform operations quickly and easily.

  • Page 6: Hardware Overview

    1.1 Hardware overview The XR3D is a self-contained unit with the following major hardware components: Figure 1 - Hardware Components (XR3D-7D) 1. Touchscreen monitor(s) with adjustable articulating arm(s) and the BioSans™ user interface. 2. Operator key switch, control box, and USB slot.
  • Page 7 VOTI Detection has a wide list of XR3D scanners, including: Table 1 - XR3D Scanner Models Model Image XR3D-50T XR3D-50S Operator Manual / 1. Introduction © VOTI 2020 / 900116-001...
  • Page 8 Model Image XR3D-50 XR3D-60S Operator Manual / 1. Introduction © VOTI 2020 / 900116-001...
  • Page 9 Model Image XR3D-60 XR3D-6D Operator Manual / 1. Introduction © VOTI 2020 / 900116-001...
  • Page 10 Model Image XR3D-7 XR3D-7D Operator Manual / 1. Introduction © VOTI 2020 / 900116-001...
  • Page 11 Model Image XR3D-100 XR3D-100D Operator Manual / 1. Introduction © VOTI 2020 / 900116-001...
  • Page 12 Model Image XR3D-100B XR3D-100BD Operator Manual / 1. Introduction © VOTI 2020 / 900116-001...
  • Page 13 Model Image XR3D-15D XR3D-18D Operator Manual / 1. Introduction © VOTI 2020 / 900116-001...

  • Page 14: Operating Conditions

    Pollution degree Pollution Degree 2 (only non-conductive pollution occurs except that occasionally a of the intended temporary conductivity caused by condensation is to be expected), in accordance environment with EN 60664-1:2007 / VDE 0110-1 Operator Manual / 1. Introduction © VOTI 2020 / 900116-001...

  • Page 15: Software Overview

    VOTI Mail Feature (optional) – With VOTI Mail function, the VOTI security scanner can better scan mail and parcels for irregularities in density and contents VOTI ID (RFID scan with baggage scan - optional) – With RFID, a specific number can be attached with archives. It is useful in identifying Baggage Archive vs. its owner.

  • Page 16: Operation Workflow

    1.4 Operation workflow Section 5.1 Logging in as an The following flowchart describes how the XR3D is used by an operator, as described in operator Figure 2 - Operator Operation Workflow Section 6.1.1 Supervisor The following flowchart describes how the XR3D is used by a supervisor, as described in...

  • Page 17: Glossary

    As an XR3D administrator, you have access to the exclusive VOTI diagnostic software used for advanced debugging. Connecting as an administrator allows you to exit the BioSans™ software and show the Windows operating system. This is described in Section 6.1.2 Administrator access rights Figure 4 - Administrator Operation Workflow 1.5 Glossary...
  • Page 18 Image Contrast Optimization ICRP International Commission on Radiological Protection Improvised Explosive Devices Image Edge Enhancement Kilovoltage Liquid Crystal Display Low Energy Line Replaceable Unit Milliampere Milliroentgen Manual Search Required µSv/h Microsieverts Per Hour Operator Manual / 1. Introduction © VOTI 2020 / 900116-001...
  • Page 19 Acronym Definition REDA Radiation Emitting Devices Act (Loi sur les dispositifs émettant des radiations) Subject-Matter Expert TIP Management System Transportation Security Administration User Interface Uninterruptible Power Supply Zeff Effective Atomic Number Operator Manual / 1. Introduction © VOTI 2020 / 900116-001...

  • Page 20: Safety

    2. Safety The XR3D scanner is a machine that generates X-rays to inspect items for security purposes. This machine has been designed and constructed to meet or exceed the requirements of the Canadian Radiation Emitting Devices Act (REDA) and the applicable Regulation (Schedule II, Part IV — Baggage Inspection X-ray Devices) and in accordance with the International Commission on Radiological Protection (ICRP) methodology, including the As Low As Reasonably Achievable (ALARA) principle.

  • Page 21: Responsibility Of The Operator

    The operator key is turned to the ON position The photosensors have detected that an item entered the tunnel The operator is standing on the safety mat (optional, configurable by a supervisor) Operator Manual / 2. Safety © VOTI 2020 / 900116-001...

  • Page 22: X-Ray Warnings

    An investigation should be undertaken regarding the circumstances of the incident, and an accident report should be prepared and submitted to the appropriate radiation protection authority. A sample accident report is attached to this guide. Operator Manual / 2. Safety © VOTI 2020 / 900116-001...

  • Page 23: Safety Features

    This label indicates the location of the main power breaker. The main power breaker should always be switched off before servicing the scanner. This symbol on the scanner indicates the earth grounding point on the machine. Operator Manual / 2. Safety © VOTI 2020 / 900116-001...
  • Page 24 Infrared sensors only trigger the generation of X-rays when items are in the tunnel. Indicator Indicator lights on top of the unit provide a visual indication of the XR3D status. Green lights lights indicate that the scanner is powered on but no X-rays are being generated. Red lights indicate that the scanner is generating X-rays.
  • Page 25 X-ray generator (normally only visible during servicing). These labels must not be removed by the purchaser or user, and this information must be included on all reports. Operator Manual / 2. Safety © VOTI 2020 / 900116-001...

  • Page 26: X-Ray Generation Principles

    Figure 5 - X-Ray Generation Operating Principle The value of the voltage applied determines the energy of the X-rays produced. In the case of a VOTI scanner, this voltage is usually 160 kV. The current passing through the cathode determines the quantity of X-ray photons produced.
  • Page 27 The operator key must be turned to the ON position An operator must be logged in The access panels must be closed and locked (this is detected by interlock switches) The operator must be standing on the pressure-sensitive mat (optional) Operator Manual / 2. Safety © VOTI 2020 / 900116-001...
  • Page 28 During X-ray generation, a radiation symbol appears on the monitor along with a text message saying X-rays are being generated. In addition, the indicator lights on top of the scanner switch from green to red. Operator Manual / 2. Safety © VOTI 2020 / 900116-001...

  • Page 29: Getting Started

    1. Perform a visual inspection for any obstruction in the tunnel or on the conveyor belt assembly. Check that there is nothing under the belt or between the belt and the tunnel sides. 2. The XR3D power cord (2.5 m supplied with the XR3D) is connected to a grounded 110–120 VAC or 220–240 VAC power outlet.
  • Page 30 Figure 7 - BioSans™ User Interface with Locked Status Figure 8 - Locked Status - Interlock Operator Manual / 3. Getting started © VOTI 2020 / 900116-001...

  • Page 31: Powering The System

    3.2 Powering the system 3.2.1 Turning the power on To turn power on to the system: 1. Ensure that the power cord (2.5 m supplied with the XR3D) is connected to a grounded power outlet (110–240 VAC). NOTE  If an extension cord must be used, it should not exceed 10 meters and be at least 16 gauge.
  • Page 32 5. Turn the key clockwise to the unlocked position, then to the start position and release the key. It will stay in the unlocked position. Figure 11 - Control Board Operator Manual / 3. Getting started © VOTI 2020 / 900116-001...
  • Page 33 If you press the power button on the login screen after the system has booted up, BioSans™ will shut down. No data will be lost, as the computer will perform a safe shutdown. Operator Manual / 3. Getting started © VOTI 2020 / 900116-001...
  • Page 34 3.2.2 Turning the power off To turn off the power on the XR3D: 1. Click on the operator icon if you are logged into the operator interface and select Logout . Figure 13 - BioSans™ User Interface - Logout Operator Manual / 3. Getting started...
  • Page 35 2. The following screen will appear: Figure 14 - Logout Options 3. Click Yes (P1) . Figure 15 - Logout Options Buttons Operator Manual / 3. Getting started © VOTI 2020 / 900116-001...
  • Page 36 For additional safety, unplug the power cable from the wall outlet. NOTE  To preserve the output and life expectancy of the X-ray generator, the XR3D should remain powered on at all times. Operator Manual / 3. Getting started...
  • Page 37  If the scanner has been shut down for more than 3 days, the X-ray tube may require seasoning. Contact VOTI Support or your supervisor before restarting the XR3D. The administrator can perform the seasoning using the administrator module. 3.2.3 Emergency stop To stop the XR3D immediately in case of an emergency: Push the emergency stop button.

  • Page 38: Performing A Shift Change

    1. Click on the operator icon and click Logout . Figure 17 - BioSans™ Logout Icon 2. Click Switch (P3) to switch users without signing out. Figure 18 - Logout Options Operator Manual / 3. Getting started © VOTI 2020 / 900116-001...
  • Page 39 3. The login screen will appear. The new operator can enter their username and password and click Operator in the permissions area. Figure 19 - BioSans™ Login Menu 4. Click Login to start the XR3D software. Operator Manual / 3. Getting started © VOTI 2020 / 900116-001...

  • Page 40: Interface

    4.1.1 Standard interface The standard interface contains a wide variety of controls and information. The standard interface is pictured in all the examples throughout this manual. Figure 20 - Standard Interface Operator Manual / 4. Interface © VOTI 2020 / 900116-001...

  • Page 41: Main Viewing Screen

    If you have a dual-source XR3D scanner, you can use an optional second monitor that shows a side view of the scanned object. This allows an operator to view the scanned item in different views independent of the main monitor.
  • Page 42 Figure 22 IMPORTANT  If the belt is no longer properly aligned, do not operate the scanner, and immediately contact VOTI Support or a qualified VOTI-trained technician. Figure 22 - Image Edge Enhancement - Examples of MAX and NONE Operator Manual / 4. Interface...

  • Page 43: Change System Status/Mode

    Archive mode allows the operator to view previously scanned items. The current mode is displayed in the System & Operator Messages area under System Mode , as well as on the button itself. Operator Manual / 4. Interface © VOTI 2020 / 900116-001...
  • Page 44 The software magnifies the image 2X for each cursor movement, centered on the midpoint of the line drawn on the screen. 4. To zoom out, drag the cursor down in a diagonal line (down movement). Operator Manual / 4. Interface © VOTI 2020 / 900116-001...
  • Page 45 Used mostly during calibration procedures, the At. Number button displays the atomic number of the selected area or pixel. BioSans™ can help detect materials such as explosives and sharp objects. It does this by identifying objects using their atomic number and differentiating between organic and inorganic material. Operator Manual / 4. Interface © VOTI 2020 / 900116-001...
  • Page 46 2. Drag the pointer cursor to define an area, or click a pixel, on the area of interest. The average atomic number (Z:) of the selected area appears on the At. Number button. Figure 28 - Example of a Bag with Atomic Number Operator Manual / 4. Interface © VOTI 2020 / 900116-001...
  • Page 47 1. Click the button in the Change System Status/Mode pane until the button displays and the System & Operator Messages pane displays Very High Density Enhance for System Status . 2. Drag the cursor to define an area of interest. Operator Manual / 4. Interface © VOTI 2020 / 900116-001...

  • Page 48: Operator Identification

    Pseudo triggers the Dynamic Contrast Enhancement algorithm. By default, a contrast sweep feature activates which is like Operator Manual / 4. Interface © VOTI 2020 / 900116-001...
  • Page 49 To go through the contrast (a slice at a time), click the contrast control. 4.6.2 Color Clicking displays items in a color representation of their respective atomic number (both organic and inorganic). Figure 34 - Example of Color View Operator Manual / 4. Interface © VOTI 2020 / 900116-001...

  • Page 50: Operations Buttons

    4.7 Operations buttons The Operations buttons trigger the software to automatically perform pre-programmed functions: Figure 36 - Operations Buttons with HAI (Optional) Figure 37 - Operations Buttons with ICON (Default) Operator Manual / 4. Interface © VOTI 2020 / 900116-001...
  • Page 51 (Highlight Area of Interest) toggles the function on or off. The HAI function highlights the possible threats (except sharp objects) on the screen and the area of interest flashes to attract the operator’s attention. Operator Manual / 4. Interface © VOTI 2020 / 900116-001...
  • Page 52 NOTE  Only one of the HAI or ICON functions can be configured at a given time. By default, the XR3D scanner is configured with ICON . Figure 40 - Example of ICON Operator Manual / 4. Interface...
  • Page 53 Clicking the language button toggles the operator Interface to display the controls in the selected language. The default and second display languages can be set in the Language Selection section of the administration module. Operator Manual / 4. Interface © VOTI 2020 / 900116-001...

  • Page 54: Conducting A Scan

    If available, the administrator can also set the detection lists, Threat Image Projection (TIP) parameters, and risk assessment parameters options. Technician – Accesses the XR3D diagnostics software using the keypad. NOTE ...

  • Page 55: Logging In As An Operator

    1. Enter an operator username and password, click BioSans in the permission area, and click Login . Figure 42 - BioSans™ Login Menu - Log in as an Operator 2. Click OK on both system initialization messages. Figure 43 - System Initialization - Conveyor Belt Operator Manual / 5. Conducting a scan © VOTI 2020 / 900116-001...
  • Page 56 Figure 44 - System Initialization - X-Ray Calibration 3. The BioSans™ user interface will launch: Figure 45 - BioSans™ User interface after System Initialization Operator Manual / 5. Conducting a scan © VOTI 2020 / 900116-001...

  • Page 57: Scanning An Object

    5. After the item moves into the tunnel of the X-ray scanner, the moving item triggers a photosensor (emitter and receiver) located inside the protective curtains. As the item moves past the photosensor, the X-ray generator starts. Operator Manual / 5. Conducting a scan © VOTI 2020 / 900116-001...
  • Page 58 NOTE  There is another photosensor on the opposite end of the XR3D tunnel that is used when the scanner is operating in reverse. 6. Indicator lights on the scanner turn red during X-ray generation. A warning icon appears on the monitor.

  • Page 59: Switching X-Ray Views

    Figure 50 - Switching X-Ray Views on Screen 1 If the scanner is dual-source with two screens, then the X-ray view can be switched on the second screen as well: Operator Manual / 5. Conducting a scan © VOTI 2020 / 900116-001...
  • Page 60 Figure 51 - Switching X-Ray Views on Screen 2 Operator Manual / 5. Conducting a scan © VOTI 2020 / 900116-001...

  • Page 61: Retrieving An Archived Image

    1. Click the button in the Change System Status/Mode pane. The message box switches to . The BioSans™ Archive window appears, displaying information on all the scans that were automatically archived. Operator Manual / 5. Conducting a scan © VOTI 2020 / 900116-001...
  • Page 62 3. To move faster through the archive, use the sliding bar located between the two arrows. As you move through the archive, the information on the top of the slider changes, reflecting the scan number, date and time of the scanned image. Operator Manual / 5. Conducting a scan © VOTI 2020 / 900116-001...
  • Page 63 Figure 55 - Archive Number 6. Click to view the data information in the main operator interface. 7. To return to the archive list, click the button. Operator Manual / 5. Conducting a scan © VOTI 2020 / 900116-001...
  • Page 64 8. To return to the main operator interface, click 9. To return to Live mode, click the button in the Change System Status/Mode pane. The message box switches to Operator Manual / 5. Conducting a scan © VOTI 2020 / 900116-001...

  • Page 65: Administration Module

    Software Versions – Contains lists of all the applications with their version numbers and changesets NOTE  To enter information, you can use either the touchscreen or an external keyboard. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...

  • Page 66: Access Rights

    If available, the administrator can also manage how materials are grouped, the TIP library, and risk level assignment. To log in as an administrator: Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 67 Figure 57 - BioSans™ Login Menu 2. Click Administrator in the permission area. 3. Click Login . The administration window appears. The default view displays the General Settings tab of the administration module. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...

  • Page 68: General Settings

    P1 button to any feature, such as zoom or atomic number. The system supports up to five programmable keys, but each assigned key replaces a thumbnail dedicated to one of the last five archived Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 69 Displays item in color representation of their irrespective Mode atomic number (both organic and inorganic). Organic Displays items with a carbon base, such as clothing, food, Mode water, or paper. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 70 Displays the image in enhanced mode to reveal information Mode about image areas that appear black (dense) in a scan. Enhanced image coloring is used to assist in differentiating the objects. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...

  • Page 71: User Management

    Current users , Deleted users , or All users changes the list of the users to display only the current users, deleted users, or a historical list of any user that has been entered into the system. Figure 59 - Admin Menu - User Management Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 72 2. Click on the Username field and enter the name of the new user. If you enter an invalid or existing username, the field turns red and a message appears at the bottom of the window. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 73 Assessment Management (optional) administration module tabs. Operator : Allows an administrator or supervisor to limit operator access to scanner functionalities. 9. Adjust the shift dates and times if you want to restrict the new user's access to the XR3D to a specific work period.
  • Page 74 10. Click Create Account to confirm the information and exit the window. The new user appears in the Current users list. Figure 63 - New User Added Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 75 1. In the User Management tab, click to highlight an existing user in the list of current users. 2. Click Edit User . The Edit User window appears. Figure 64 - Edit User Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 76 2. Click Details . The Details window appears, displaying a history of all activities. It also displays the permission (or access) level into which the user logged in, for example, as an administrator, supervisor, or operator. Figure 66 - Get User Details Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 77 Figure 67 - User Logs With Time 3. Click a date in the calendar to display the activities for a specific day for the selected user. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 78 4. The selected user is removed from the Current users list. If you click Deleted users , the name of the recently deleted user appears in the Deleted users list. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 79 Figure 70 - Deleted Users List NOTE  To reinstate a user, highlight the user name in the Deleted Users list and click the Restore button. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...

  • Page 80: Archive Management

    Continuous Archiving – Used in conjunction with continuous screening mode, this saves images as separate files instead of multiple objects scanned simultaneously in a single image. Selected HDD – Used to select where the archive will be saved on the computer or network). Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 81 When the database size reaches the set memory size, a warning appears. The warning prompts the user to make a backup copy of the existing information. Clicking Yes starts the backup procedure. If the user clicks No at this time, Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 82 To create a backup: 1. At the prompt, insert an external storage device into the USB port. The system automatically detects the external device. A Data Transfer dialog opens. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 83 Move Files : The files will be transferred to the storage device and erased from the hard drive of the unit. 4. The selected files are transferred to the external device. A folder called Backup_Archive_Date_Time will appear on the external device. 5. Click Cancel to exit the File Transfer dialog. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...

  • Page 84: Language Selection

    System & Operator Messages Area of the operator interface. By default, the XR3D contains a list of common threats. Operator Manual / 6. Administration module...
  • Page 85 (set in the User Management tab). Selecting Use the extended material list activates the Add , Remove and Edit buttons. Figure 77 - Admin Menu - Material Classification Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 86 2. Click Add or click on an item in the grid and click Edit . Figure 78 - Editing a Material 3. Enter or edit the information (e.g. name, family, and atomic number). Figure 79 - Edit Material Details Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 87 5. Check the box next to All . If the check box is not checked, the material remains in the material list; however, it will not be detected during a scan. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 88 5. Click Apply to confirm the information. NOTE  After the last item in the family group is removed, the family group name is also removed. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...

  • Page 89: Risk Assessment

    SEVERE performs only single baggage screening scans at a speed of 22 feet/min. providing a better image quality. The detection assistance sensitivity is set to the highest level. Figure 83 - Admin Menu - Risk Assessment Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...

  • Page 90: Advanced System Settings

    Figure 84 - Admin Menu - Advanced System Settings License Information – Displays basic license information. Bad Pixels – Launches the BioSans™ program to remove false lines appearing in a scanned image. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 91 Administrators and supervisors do not have access to this application. X-Ray Seasoning – Activates the application to season of the X-ray generator. If the XR3D has been powered down for longer than 3 days, the X-ray generator tube must be seasoned to prevent damage to the tube.
  • Page 92 USB key. These logs are important for checking machine behavior and detecting the root causes of errors. Figure 86 - System Logs Window DIOX – Prompts a BioSans™ application to check and verify the XR3D scanner input and output. This tool is for technicians only.

  • Page 93: Image Settings

    Figure 87 - Admin Menu - Image Settings 2. Choose the desired Default Contrast Level and Default Sharpening Level . Figure 88 - Image Settings - Contrast Level 3. Click APPLY . Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...

  • Page 94: Diagnostics

    6.10 Diagnostics The Diagnostics tab contains FDRS (Field Data Reporting System) logs, which can be exported using the Export FDRS Logs button. Figure 90 - Admin Menu - Diagnostics - FDRS Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...

  • Page 95: Software Versions

    Operational events (e.g. buttons pressed by the operator: forward scan, image quality enhancement, etc.) 6.11 Software Versions The Software Versions tab contains lists all the applications with their version numbers and changesets. Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...
  • Page 96 Figure 91 - Admin Menu - Software Versions Operator Manual / 6. Administration module © VOTI 2020 / 900116-001...

  • Page 97: Tip Management

    For example, an image of a gun appears in the scan awaiting the appropriate action from an operator. Figure 92 - Example of TIP Threat The TIP software does not affect the functionality of the XR3D scanning features or the operator interface. When the TIP is set to ON, the operator will see: Operator Manual / 7.
  • Page 98 If there is a threat and they do not press the MANUAL SEARCH REQUIRED button, it will tell them that they missed it. NOTE  The TIP Management System (TMS) can be accessed through the login menu by TIP management users. Operator Manual / 7. TIP management © VOTI 2020 / 900116-001...
  • Page 99 Figure 94 - BioSans™ Login Menu - Log in to TMS Operator Manual / 7. TIP management © VOTI 2020 / 900116-001...

  • Page 100: General Settings

    The parameters in General Settings control the frequency and type of threat displayed. The TIP functionality is controlled by clicking either the TIP Status ON or OFF button and clicking Apply . Figure 95 - TIP Options Operator Manual / 7. TIP management © VOTI 2020 / 900116-001...
  • Page 101 50% of guns, 30% of knives and 20% of IED. The total percentage of all types must equal 100. Diversification Range is not usually used when Random Proportion is used, but they can be used together. For example: Operator Manual / 7. TIP management © VOTI 2020 / 900116-001...
  • Page 102 4 in 10 A random number generator is used with the set percentage of occurrence. If set to 40%, then each individual bag has a 40% chance of containing a threat. Operator Manual / 7. TIP management © VOTI 2020 / 900116-001...
  • Page 103 This window allows TIP management users to set the messages operators will see when the TIP system is on. Click APPLY to set the new message and OK to save and close the window. Figure 96 - TIP Output Messages Operator Manual / 7. TIP management © VOTI 2020 / 900116-001...
  • Page 104 Pressing the Stop button clears the message and the TIP image. Time Out Displays when the operator takes too long to decide whether a Required manual search is required. Operator Manual / 7. TIP management © VOTI 2020 / 900116-001...

  • Page 105: Access Management

    TIP image. ANALYZE AGAIN TO LOOK FOR REAL THREATS 7.2 Access Management This is used to edit the operators that have TIP management rights. Figure 97 - TIP - Access Management Operator Manual / 7. TIP management © VOTI 2020 / 900116-001...

  • Page 106: Configuring The Threat Library

    For example, the authorities in different countries include: Canada : Canadian Air Transport Security Authority (CATSA) USA : Transportation Security Association (TSA) Operator Manual / 7. TIP management © VOTI 2020 / 900116-001...
  • Page 107 Figure 99 - TIP Threat Library In the threat library, click Add TIP From Files or Add TIP From Archive , or select an existing threat and click Edit TIP  or Edit TIP Image . Operator Manual / 7. TIP management © VOTI 2020 / 900116-001...

  • Page 108: Viewing The Output Reports

    Adding or editing TIP information can be performed by: Using the TIP Management > Library tab and selecting the Add and Edit buttons Editing the information in workbook software (for example, Excel) and copying the new TIP data into the XR3D database After creating or editing TIP images, the administrator or supervisor can copy the new information and install it on other scanners to ensure that all units share the same database.
  • Page 109 TIP Image results displays the number of hits, misses, false alarms or cancels. Overall Library hit rate displays the percentage of hit objects versus the total number of scanned objects. Operator Manual / 7. TIP management © VOTI 2020 / 900116-001...
  • Page 110 All reports can be viewed online. The report date can be selected using the calendar on the side of the report screen. Reports can be downloaded to a USB by clicking Download . Figure 102 - Download TMS Reports Operator Manual / 7. TIP management © VOTI 2020 / 900116-001...

  • Page 111: Training Module

    8.1.1 Using TIP Operator Training 1. To enter TIP Operator Training mode, press the TRAINING button on the BioSans login screen. Figure 103 - BioSans Login Screen 2. Log in with your operator credentials. Operator Manual / 8. Training module © VOTI 2020 / 900116-001...
  • Page 112 4. Once a scan appears on the screen, you can either clear the scan by pressing the forward button again or pressing MSR if you suspect a threat. Figure 105 - Suspected Threat Operator Manual / 8. Training module © VOTI 2020 / 900116-001...
  • Page 113 5. If you clear the scan and do not identify an existing threat, TIP MISSED will appear in red on the right side of the screen. NOTE  This message will also appear if you exceed the time limit to identify a threat, which is set by the supervisor. Figure 106 - TIP MISSED Operator Manual / 8. Training module © VOTI 2020 / 900116-001...
  • Page 114 7. If you identify a threat and press MSR within the required time limit, you will receive a TIP HIT message. Figure 108 - TIP HIT 8. The training continues until you exit the training mode by pressing the user icon on the bottom left of the screen. Operator Manual / 8. Training module © VOTI 2020 / 900116-001...
  • Page 115 Figure 109 - Training Results The TIP Operating Training results can be filtered by operator and date range, and data can be exported in .csv format for further processing. Figure 110 - CSV Results Operator Manual / 8. Training module © VOTI 2020 / 900116-001...
  • Page 116 Appendix Accident Investigation Report...

  • Page 117: Accident Investigation Report

    Accident Investigation Report Facility name and address: 790 Begin St. Saint-Laurent, QC H4M 2N5 Canada Tel: +1 514 782 1566 Fax: +1 514 221 3948 www.votidetection.com Equipment manufacturer: Model: Serial #: Site of accident: Date of accident: Description of incident: (care for the victim of exposure, immediate repair of equipment): Actions taken Corrective action...
  • Page 118 VOTIDETECTION.COM ™ VOTI Detection 790 Begin St. St-Laurent, QC H4M 2N5 Canada...
