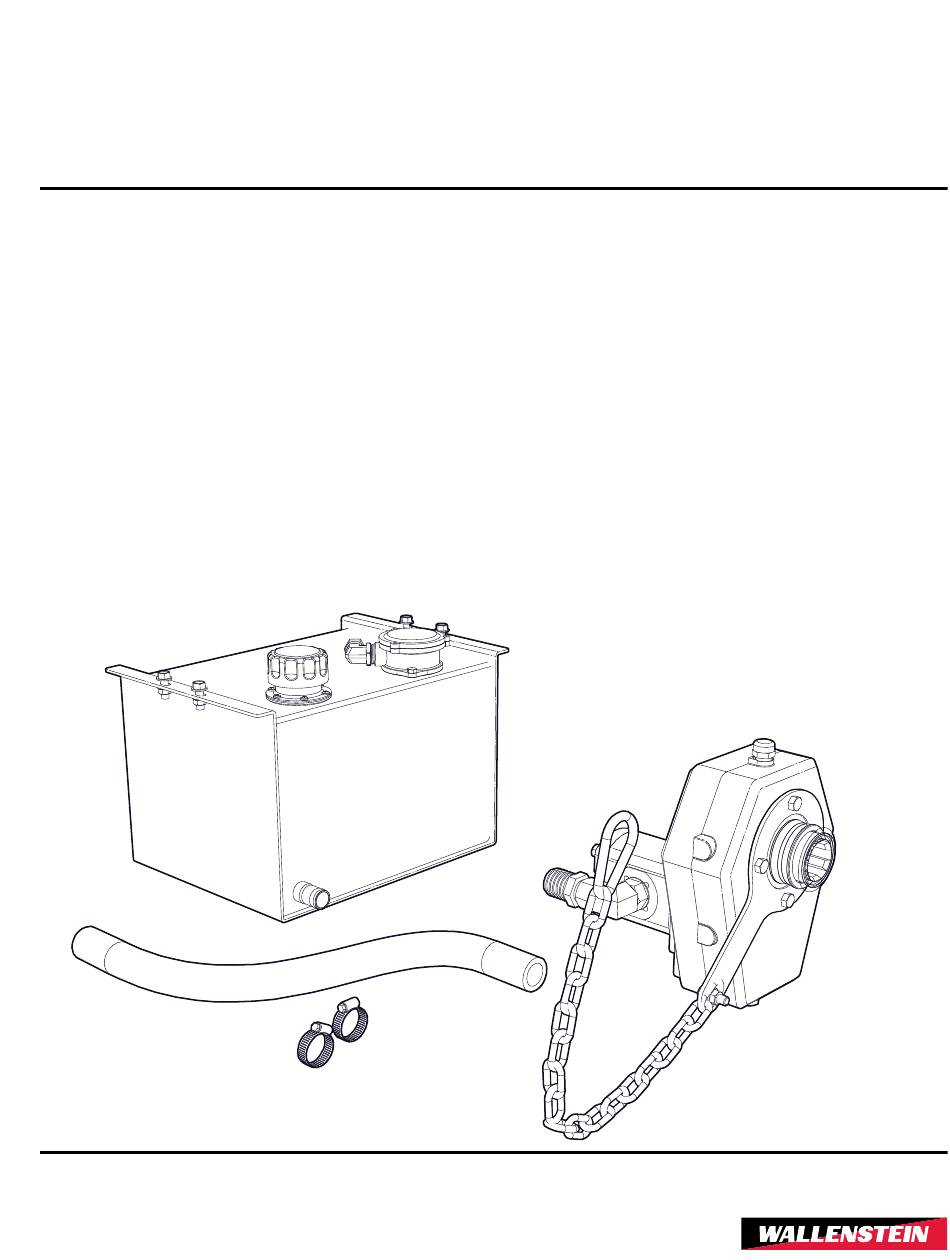

- Page 1 INSTALLATION INSTRUCTIONS PTO Hydraulic Pump Kit Z97802_En Rev Nov-2021...
- Page 2 Read and follow all installation and setup instructions. W091 A Wallenstein PTO hydraulic pump kit is required to provide power to a Wallenstein firewood processor when a tractor has limited or no hydraulics. The kit provides a 15 gpm (57 Lpm) flow and is sufficient to power the firewood processor.
-
Page 3: Safety Alert Symbol
P300 PTO Hydraulic Pump Kit Safety Safety Alert Symbol This Safety Alert Symbol means: ATTENTION! BE ALERT! YOUR SAFETY IS INVOLVED! The Safety Alert Symbol identifies important safety messages on the machine and in this instruction. This symbol means be alert to the possibility of personal injury or death. Follow instructions provided. -
Page 4: Safety Signs
P300 PTO Hydraulic Pump Kit Safety Signs Replace Damaged Safety Signs • Always replace safety signs that are missing or have become illegible. Replacement safety signs are available WARNING! from your authorized distributor, dealer parts department, Risk of personal injury. Replace safety signs that or Wallenstein Equipment. -
Page 5: Kit Parts
P300 PTO Hydraulic Pump Kit Kit Parts Part of Z43103 Gearbox Part of Z43103 Gearbox Part of Z53114 Gear Pump Part of Z53114 Gear Pump BOM ID Part No. Description Z43103 1-3 Ratio Gearbox, 27HP x 540RPM w/ Adapters Included 1... -
Page 6: Kit Assembly
P300 PTO Hydraulic Pump Kit Kit Assembly Fig. 2 – PTO hydraulic pump kit assembly 1. Filler-breather cap 5. Gearbox 2. Return hose fitting 6. Lock collar 3. Return filter 7. Tank suction 4. Input to the winch control (high pressure line) -
Page 7: Installation Instructions
3. Disconnect the firewood processor from the tractor. 4. Place the P300 hydraulic pump kit on the ground, in front of the hydraulic hoses, near the three-point hitch. Fig. 3 – Add oil to the gearbox... - Page 8 P300 PTO Hydraulic Pump Kit Step 1 - Install the Tank Step 2 - Connect the Hydraulic Hoses a. Remove the four bolts and nuts from the tank. Set them WARNING! aside in a safe place. b. Carefully, lift the tank and set it inside the firewood Hydraulic oil under pressure can penetrate the processor three-point hitch frame.
- Page 9 P300 PTO Hydraulic Pump Kit Step 3 - Fill the Tank Step 4 - Install the Pump Assembly a. Open the filler-breather cap. a. Temporarily set the pump assembly on top of the tank. b. Insert a funnel. b. Attach the firewood processor to the tractor's three-point hitch.
-
Page 10: Gearbox Maintenance
P300 PTO Hydraulic Pump Kit Maintenance Gearbox Maintenance Regular preventive maintenance can improve performance Change the gear oil after the first 60 to 80 hours of operation. and prolong the life of the equipment. Maintenance is your Thereafter, change the gear oil a minimum of every 1,500 responsibility. -
Page 11: Hydraulic Maintenance
P300 PTO Hydraulic Pump Kit Hydraulic Maintenance Replace the hydraulic fluid and return filter every 100 hours or annually. 1. Place a drain pan of suitable capacity below the tank. 2. Clean the area around drain. 3. Use a hex key to remove the drain plug. -
Page 12: Bolt Torque
P300 PTO Hydraulic Pump Kit Bolt Torque Checking Bolt Torque Imperial Bolt Torque Specifi cations The tables shown give correct torque values for various Torque Value bolts and capscrews. Tighten all bolts to the torque values Bolt specified in the table, unless indicated otherwise. Check SAE Gr. -
Page 13: Hydraulic Fitting Torque
P300 PTO Hydraulic Pump Kit Hydraulic Fitting Torque Tightening Flare Type Tube Fittings Hydraulic Fitting Torque 1. Check flare and flare seat for defects that might cause leakage. Tube Size Flats From Size Torque value Across Finger Tight 2. Align tube with fitting before tightening. -
Page 14: Product Warranty
P300 PTO Hydraulic Pump Kit Product Warranty LIMITED WARRANTY Wallenstein products are warranted to be free of defects in materials and workmanship under normal use and service, for a period of Five Years for Consumer Use Two Years for Commercial/Rental Use from the date of purchase, when operated and maintained in accordance with the opera�ng... - Page 16 WallensteinEquipment.com...
