P I N E C R E S T
SIMPLE SELECT SHOWER SYSTEM WITH RAINFALL AND HAND SHOWER
SISTEMA DE DUCHA SIMPLE SELECT CON DUCHA TIPO CASCADA Y DUCHA DE MANO
SKU: 949739
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing �xtures. Signature
Hardware accepts no liability for any damage to the
plumbing, or for personal injury during installation.
Observe all local plumbing and building codes.
Unpack and inspect the product before shipping
damaged product. If any damage is found, contact
our Customer Relations team at 1-800-221-3379.
ANTES DE COMENZAR
Le recomendamos que consulte a un profesional si no
sabe cómo instalar accesorios de plomería. Signature
Hardware no asume ninguna responsabilidad con
respecto a los daños causados al inodoro, sistema de
plomería, suelo o daños personales durante
la instalación.
Cumpla con todas las normas locales de plomería y
construcción.
Retire el inodoro del empaque y verifique si se
produjeron daños durante el envío. Si encuentra algún
daño, comuníquese con nuestro equipo de Servicio al
cliente al 1-800-221-3379.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
CÓMO COMENZAR
Asegúrese de haber reunido todos los materiales
necesarios para la instalación.
For Warranty information, please visit: signaturehardware.com/services/warranty
Para obtener información sobre la garantía, visite: signaturehardware.com/services/warranty

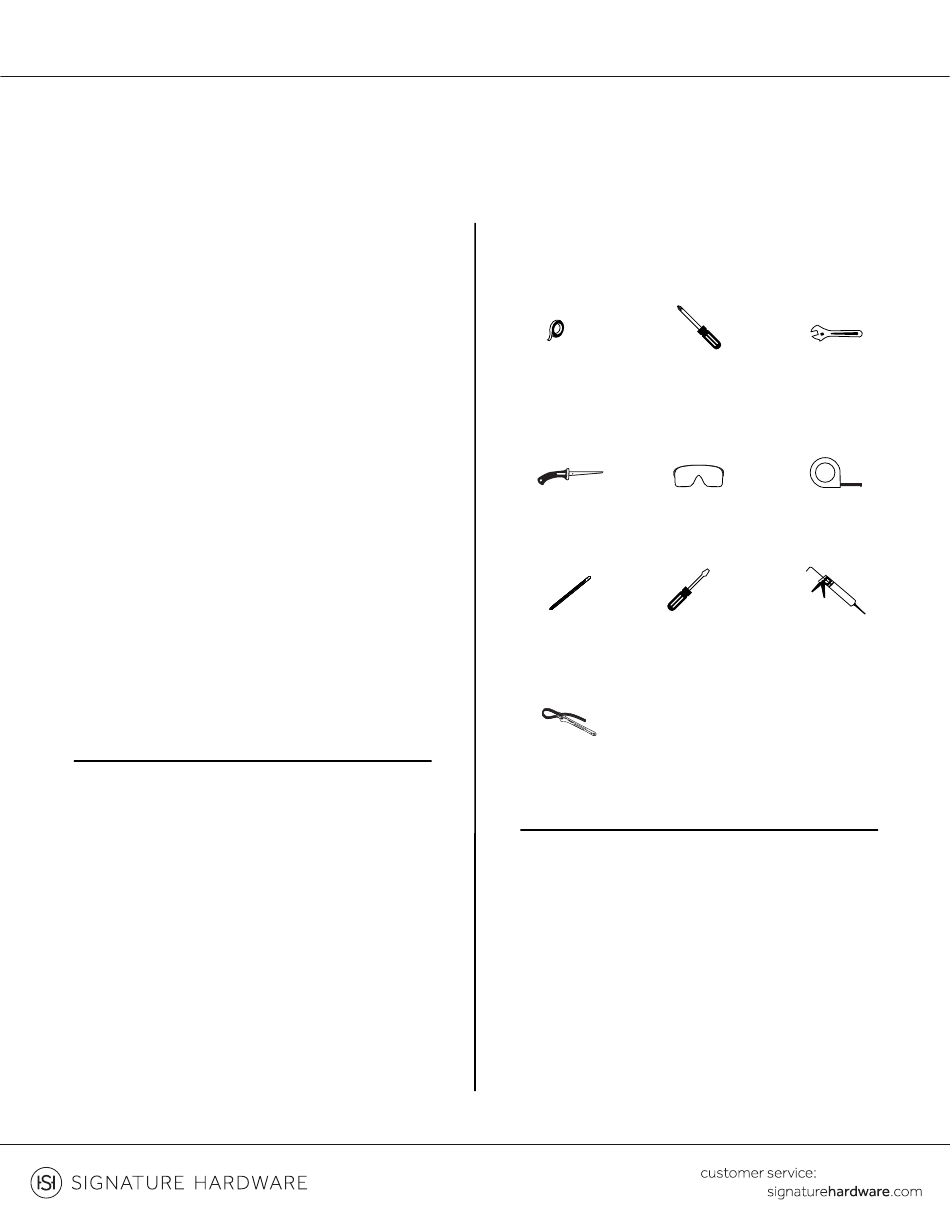

TOOLS AND MATERIALS:
HERRAMIENTAS Y MATERIALES:
Plumbers
Tape
Cinta de
fontanería
Keyhole Saw
Gafas de seguridad
Sierra de punta
Thermometer
Screwdriver
Termómetro
Destornillador de
cabeza plana
Strap
Wrench
Llave de
cincha
NOTE:
You may require di�erent, more specialized tools to
install this valve and the plumbing.
NOTA:
Usted puede necesitar herramientas diferentes y más
especializadas para instalar esta válvula y el sistema
de plomería.
1
Adjustable
Phillips
Wrench
Screwdriver
Llave
Destornillador
ajustable
Phillips
Safety Glasses
Tape Measure
Cinta métrica
Flathead
Silicone Sealant
(100% Neutral Cure)
Sellador de silicona
(100% curado neutro)
REVISED 04/07/2020
CODES: SHPC8040LH, SHPCSSCRS, SHRSA120
SHRS1020TG, SHH1010, SHSB3030
SHWE2060, SH5001SS, SHHS4090G
