Summary of Contents for Software House SWH-4200

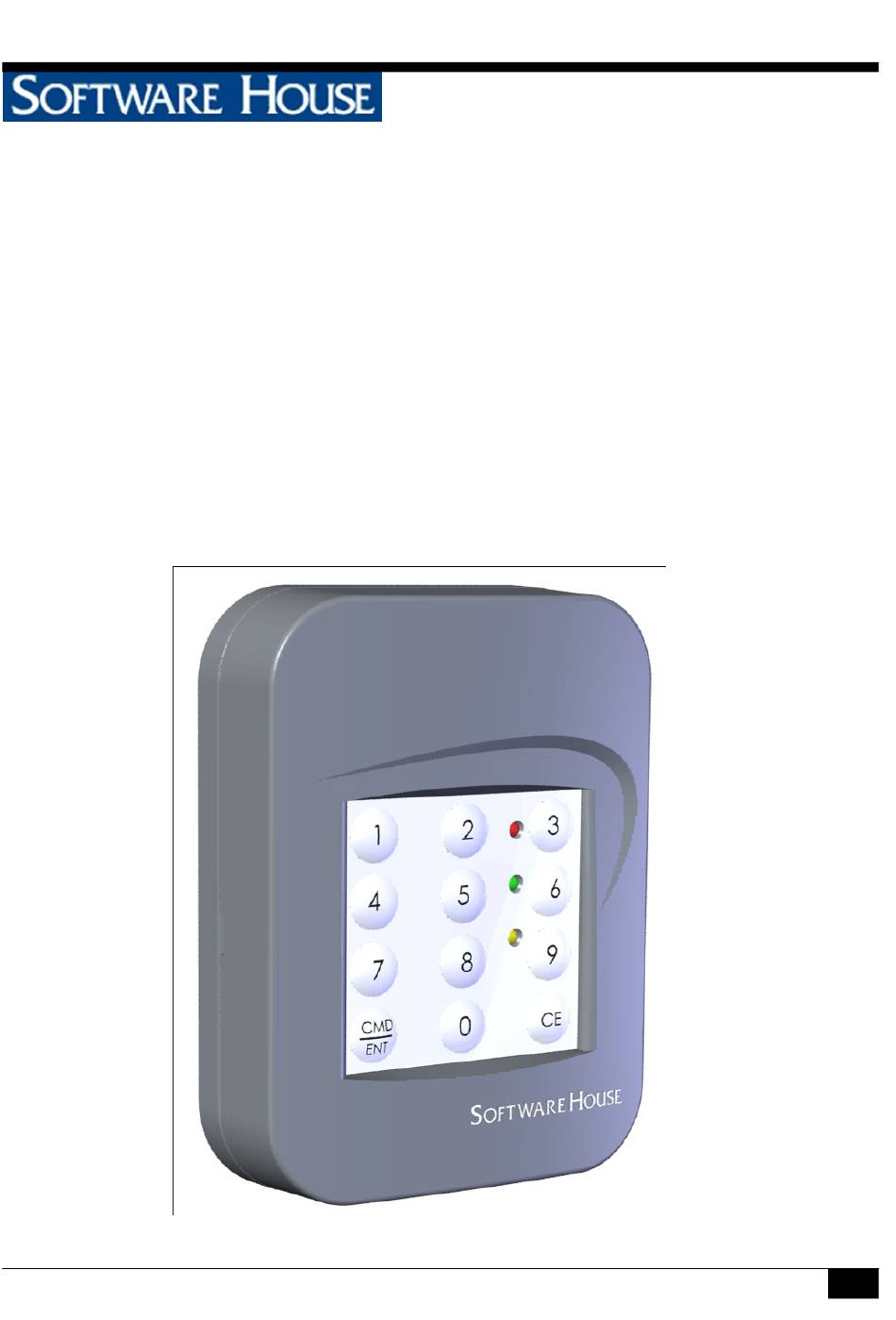

- Page 1 Model SWH-4200 Contactless Multi-Technology 125 KHz and 13.56 MHz Reader Installation Guide Version A0 Part Number UM-090 January 2005...
-
Page 2: Table Of Contents
Troubleshooting ..........10 Model SWH-4200 Technical Specifications ..... . .11 FCC Digital Device Limitations . -
Page 3: Introduction
INTRODUCTION The SWH-4200 Contactless reader will read Prox and Smart Cards at frequencies of both 125 kHz and 13.56 MHz. The reading capability includes, for Smart Cards, both unencrypted serial numbers and encrypted programmed sectors. Refer to Table 1 for a complete list of compatible standards and data. -
Page 4: Features
FEATURES Universal compatibility with most 125 kHz Prox (including all HID® Prox formats) and with all ISO 15693 and ISO 14443A credentials (badges, disk tags and key fobs). Reads both 125 kHz and 13.56 MHz credentials in the same reader. Electrical protection (reverse polarity diode protection on power lines) Data lines: high-speed transient voltage suppressor diodes IP65-rated sealed electronics for deployment in both interior and... -
Page 5: Mounting
MOUNTING Mount the single-gang backplate (with tamper magnet installed) onto the wall. FIGURE 1. Model SWH-4200 Reader Backplate (includes tamper switch magnet) NOTE Mounting holes fit standard U.S. single-width electrical box and standard European (EMEA) electrical box hole patterns. -
Page 6: Installation Considerations
(including 1 optional isolation spacer) INSTALLATION CONSIDERATIONS An isolation spacer (available from Software House, part number SWH-ISOSPC) may be used to improve the read range distance when mounting the reader to a metal surface. To optimize reader range use the number of backplates as indicated in Table 2. - Page 7 TABLE 2. Isolation spacer recommendation for mounting the SWH-4200 reader on metal. Distance Reading Distance No metal plate 100% 4.5 cm 100% 2.7 cm (3 tamper plates) 1.8 cm (2 tamper plates) 0.9 cm (1 tamper plate) 0 cm Installation of two SWH-4200 readers side-by-side...
-
Page 8: Wiring
WIRING The Model SWH-4200 has twelve terminals as noted in Table 3. The terminal strip is removable for easy installation and wiring. When attaching wires to the connector, strip off only the minimum insulation required (approx. 1/8'') and push the wire into the connector until the insulation is flush or inside the connector body. -
Page 9: Installation Notes
Table 4 indicates maximum wiring distances per Wiegand standard with the three most common gauges of cable. TABLE 4. Maximum cable distance for 18, 20, or 22 AWG wire Wire Gauge 18 AWG 20AWG 22 AWG Cable 500 feet 300 feet 200 feet Distance (152 meters) -
Page 10: Troubleshooting
TROUBLESHOOTING If the operation of a component is in doubt, substitute a known good component and retry the system. Always verify wiring against the provided wiring information before powering up the reader. TABLE 5. Error Conditions and Possible Solutions Condition Possible Solutions None of the LEDs Check the following:... -
Page 11: Model Swh-4200 Technical Specifications
MODEL SWH-4200 TECHNICAL SPECIFICATIONS Cable Recommendations: 4 core (minimum), shielded, 22 AWG (minimum) cable. Connectors: 12 position, 3.5 mm Screw Terminals - Plug-In Certifications: FCC Part 15, CE and UL 294 Open Standards ISO 14443A Compliance: ISO 14443B (Depending on specific... - Page 12 Serial Number Read Fixed Wiegand bit stream option SmartFrame® encrypted mifare Sector read and conversion to Wiegand Consult your Software House representative for available reconfiguration cards for your reader. Upgrade Complete upgrade capability using RS485 port for reflashing of internal ROM.
-
Page 13: Fcc Digital Device Limitations
FCC DIGITAL DEVICE LIMITATIONS Radio and Television Interference This equipment has been tested and found to comply with the limits for a digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 14: Ul Standards Compliance
CANADIAN RADIO EMISSIONS REQUIREMENTS This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le present appareil numerique n'emet pas de bruits radioelectriques depassant les limites applicables aux appareils numeriques de la class A prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des Communications du Canada. -
Page 15: Ce Marking
SWH-4200 SWH-3100 SWH-1000 SWH-3000 SWH-5000 To obtain a copy, contact Software House and request the “Declaration of Conformity” document for Multi-technology readers. Software House 70 Westview Street Lexington, MA 02421 U.S.A. In case of alteration of the product, not agreed to by us, this declaration will lose its validity. - Page 16 Copyright 2005 Tyco International All rights reserved. Printed in Germany. MIFARE® is a registered trademark of Philips Electronics, N.V. HID® and iCLASS® are registered trademarks of Assa Abloy AB. Software House 70 Westview Street Lexington, MA 02421 http://www.swhouse.com Fax: 781-466-9550...
