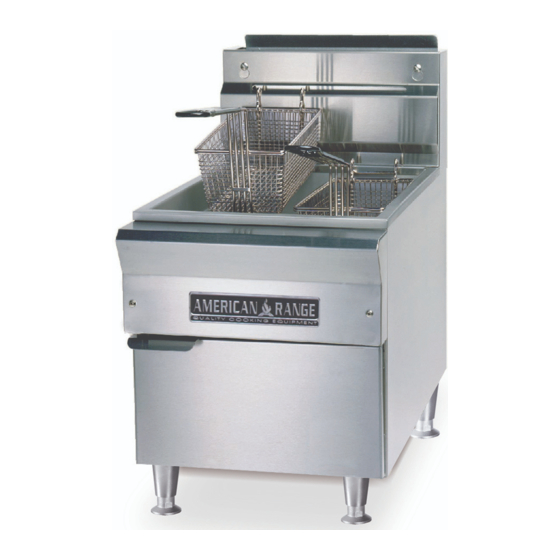

- Page 1 PROFESSIONAL QUALItY cOOKING EQUIPMENt OWNER’S MANUAL FOR COUNTERTOP FRYER MODEL NUMBERS: AFct-15 DESIGN CLASS FUNCTION © 2012 American Range 13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com All Rights Reserved...
- Page 2 INStALLAtION thoroughly before installing or servicing this equipment. IMPORTANT SERVICE NOTICE! Using any part other than genuine American Range factory supplied parts relieves the manufacturer of all liability. American Range reserves the right to change product design and specifications without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for the previously purchased equipment.
- Page 3 “Troubleshooting” – for a quick solution or guidance regarding the next step required to get back to tip-top condition. Thank you for choosing an American Range product for your kitchen. As you can expect, this appliance is designed for years of reliable service. If you have any questions or comments, please contact the dealer from whom you purchased the unit, or contact American Range Customer Service via email: info@americanrange.com at www.americanrange.com, or call...
-
Page 4: Table Of Contents
Owner’s Manual Countertop Fryer Table of Contents GENERAL ....................1-3 General Information ....................1 About This Manual ....................2 Shipping Damage Claim Procedure .............. 3 Rating Plate ......................... 3 Clearances ........................3 INStALLAtION ..................4-7 Gas Utility Connections-Standards & Codes .......... 4 Instructions ........................ -
Page 5: General
Failure to comply will void any written or implied warranty. Should the equipment require service during the standard warranty period, the receipt proving certified installation must be made available to American Range for verification. If installation was not performed by a certified/licensed contractor be prepared to submit a major credit card for payment for proper installation. -
Page 6: About This Manual
Owner’s Manual Countertop Fryer ABOUt tHIS MANUAL The Use and Care Manual is divided into several sections: The Safety Section informs you about significant safety precautions when installing and operating your new fryer. This is a must read section of the manual. Quick Start and Installation Section describes how to unpack the unit, what to save and what to discard, installation dimensions, gas and electrical connections and how to identify the primary parts of the product so you can better understand what’s going on “under the hood”. -
Page 7: Shipping Damage Claim Procedure
RAtING PLAtE - The location of the rating plate is shown in Figure 1. The information on the rating plate 3013256 defines the model, serial number, AFCT-15 999999-CO9999 MODEL: SERIAL NO. gas type (natural or liquid propane), GAS TYPE: NAT MAN. -
Page 8: Installation
- Installation must conform to Local and National Standards. Local installation codes and/or requirements may vary. If you have any questions regarding the proper installation or operation of your American Range Fryer, please contact your local distributor. If you do not have a local distributor, contact American Range Corporation at 1.888.753.9898 or visit us at www.americanrange.com... -
Page 9: Wiring Diagram
Owner’s Manual Countertop Fryer WIRING DIAGRAM WARNING: DO NOT CONNECT ANY EXTERNAL ELECTRICAL POWER TO THIS UNIT COMBINATION GAS VALVE THERMOPILE WHITE WHITE BLACK BLACK THERMOSTAT WHITE HI-LIMIT SWITCH 13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com... -
Page 10: Models And Parts Identification
Owner’s Manual Countertop Fryer MODEL AND PARtS IDENtIFIcAtION cOUNtERtOP FRYER DESCRIPTION AFCT-15 Basket Hanger Baskets Rack/Screen Burners Drain Extension Pipe Legs Regis. Card U&C Manual 13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com... -
Page 11: Installation Checklist
This checklist has been developed to assure proper installation of your oven. To validate warranty, you must mail, e-mail or fax this form and a copy of your receipt to: AMERICAN RANGE CUSTOMER SERVICE, 13592 DESMOND STREET, PACOIMA, CA 91331 service@americanrange.com 818.897.8839 FAX... -
Page 12: Operating
Owner’s Manual Countertop Fryer OPERAtING INStRUctIONS The installation instructions contained here are for the use of qualified WARNING installation and service personnel only. Installation or service by other than certified / licensed personnel will void the warranty and will result in damage to the oven and/or injury to the operator. -
Page 13: Cleaning
Owner’s Manual Countertop Fryer OPERAtING INStRUctIONS WEEKLY cLEANING Shut down the fryer by turning the thermostat and pilot valve to the OFF position. Disconnect the restraining device before moving the appliance for cleaning and servicing. Drain the fryer into a filtered pan or steel container. Flush out sediment at the bottom of fryer with liquid oil. Close the drain valve and fill the vessel with a mixture of boil-out solution and water. -
Page 14: Exploded View Drawings/Parts Lists
Owner’s Manual Countertop Fryer AFct - 15 13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com... - Page 15 AFct - 15 ITEM NO. PART NO. DESCRIPTION A33004 Basket, AFCT Countertop Fryer Chrome Plated A31087 Rack, AFCT-15 Mesh Screen Chrome Plated A99360 Tank, AFCT-15 Fryer 16GA 304SS 71673 Hanger, Basket AFCT 18GA Stainless 71625 Panel, Side Rt AFCT 18GA Stainless...
-
Page 16: Troubleshooting
Owner’s Manual Countertop Fryer tROUBLESHOOtING GUIDE POSSIBLE cAUSE SUGGEStED ActION SYMPTOM: Burners do not come on. Unit is not connected to gas service Visually check unit is plumbed to gas Pilot is not burning Light pilot Thermostat is set to very low temperature Set temperature to desired value SYMPTOM: Fryer does not reach selected temperature. - Page 17 Notes 13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com...
- Page 18 Notes 13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com...
- Page 19 Notes 13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com...
- Page 20 Failure to comply will void any written or implied warranty. Should the equipment require service during the standard warranty period, the receipt proving certified installation must be made available to American Range for verification. If installation was not performed by a certified/licensed contractor be prepared to submit a major credit card for payment for proper installation prior to service.
