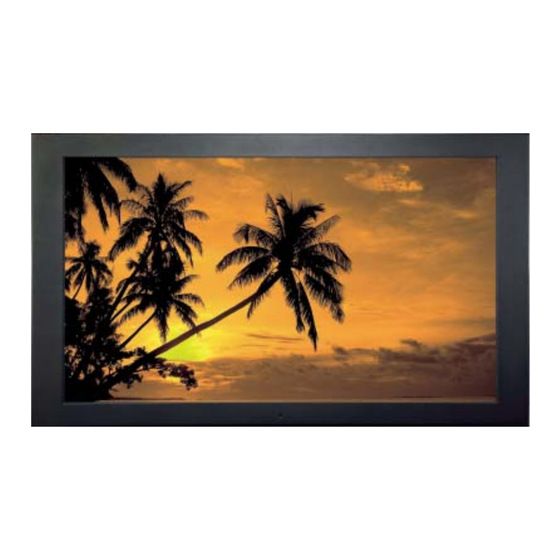

- Page 1 LCD display solutions User Manual 40” FHD LCD AP-W40 Aluminum front bezel NAP-W40 Front NEMA4 / IP65 OP-W40 Universal Mounting Open Frame Designed and manufactured by Austin Hughes UM-UV-W40-Q112V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > AP-W40 / NAP-W40 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 OP-W40 < Part. 2 > Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Ap-W40 / Nap-W40
< Part 1 > < 1.1 > Package Content - AP / NAP-W40 40" FHD LCD Display AP-W40 / NAP-W40 40" FHD LCD display X 1 6ft VGA cable X 1 6ft DVI-D cable X 1 6ft HDMI cable X 1... - Page 6 < 1.2 > Structure Diagram - AP / NAP-W40 Front view AP-W40 NAP-W40 Bottom view Rear case Rear view LCD panel 6mm aluminum front bazel Audio speaker, pair LCD membrane Wall-mount bracket Remote sensor Power Audio Audio DVI-D S-Video R C A...
- Page 7 < 1.2 > Dimension - AP / NAP-W40 40” FHD LCD Display Side View AP-W40 NAP-W40 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-W40-Q112V1 www.austin-hughes.com...
- Page 8 < 1.3 > Wall-mount Installation - AP / NAP-W40 Front wall-mount bracket Step ■ Install left & right front wall-mount brackets at the rear side of the LCD shown above. ■ M5 screw x 8 pcs included ( Left & right side ). Rear side Step Rear wall-mount bracket...
- Page 9 < 1.3 > VESA Installation - AP / NAP-W40 40” FHD LCD Display M6 screw VESA mount ( 100*100mm ) ■ Hardware and M6*8 pcs for VESA mount are not provided UM-UV-W40-Q112V1 www.austin-hughes.com...
- Page 10 < Part 2 > < 2.1 > Package Content - OP-W40 OP-W40 40" FHD LCD display X 1 6ft VGA cable X 1 6ft DVI-D cable X 1 6ft HDMI cable X 1 6ft RCA cable X 1 6ft S-Video cable X 1 Power cord X 1 Remote controller X 1 UM-UV-W40-Q112V1...
- Page 11 < 2.2 > Structure Diagram - OP-W40 40" FHD LCD Display Front view OP-W40 Bottom view Rear case LCD panel Rear view Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Power Audio Audio...
-
Page 12: Part. 2 > Op-W40
< 2.3 > Dimension - OP-W40 Front View Side View OP-W40 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-W40-Q112V1 www.austin-hughes.com... - Page 13 < 2.3 > Installation - OP-W40 40” FHD LCD Display ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M6 screw ■ Hardware and M6*8 pcs for VESA mount are not provided UM-UV-W40-Q112V1 www.austin-hughes.com...
-
Page 14: Product Specifi Cations
< Part 3 > < 3.1 > Product Specifi cations Mechanical AP / NAP-W40 OP-W40 Design Front Panel Black, RAL 9005 Rear Casing Dark grey, RAL 7037 Dark grey, RAL 7037 VESA Mounting 100 x 100mm 100 x 100mm Other Mounting Panel mount Universal mount Protection... - Page 15 40” FHD LCD Display Safety Approval FCC & CE Regulatory Operating Temperature 0 to 50°C degree Environmental Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical AP / NAP-W40 OP-W40...
-
Page 16: On-Screen Display Operation ( Osd )
< 3.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 17 < 3.2 > On-screen Display Operation ( OSD ) 40” FHD LCD Display Audio Audio mode : Movie / Voice / Normal / Music mode to choose Volume : Adjust the volume of sound Bass : Set the value of bass sound Treble : Set the value of treble sound Balance :...
-
Page 18: Remote Controller ( Rc-2 )
< 3.3 > Remote Controller ( RC-2 ) INPUT MUTE -/-- AUTO FREEZE MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO Select the source INPUT Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds. -
Page 19: Part 4 > Options
< Part 4 > Options < Part 4 > Options 40” FHD LCD Display < 4.1 > Option Table Basic Options AP / NAP SDI *** Touchscreen MCS multi-screen control *** MIL-type / lockable connector The user can only select either SDI or MCS inputs. P.15 UM-UV-W40-Q112V1 www.austin-hughes.com... - Page 20 < 4.2 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
- Page 21 < 4.3 > Options : MCS 40” FHD LCD Display More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of ( Multi-display Control ) various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
- Page 22 < 4.3 > Options : MCS P.18 UM-UV-W40-Q112V1 www.austin-hughes.com...
- Page 23 < 4.4 > Options : Touchscreen & driver 40” FHD LCD Display W40" USB Touchscreen Specifi cation Multi-touch Model TMR2 Infrared Technology Dual Touch Point Finger or Gloved Hand Method No pressure required Activation Force 300 million touches Durability 25 ms Response Time 90% ±2% Optical Transmittance...
- Page 24 < 4.5 > Options : MIL-type or Lockable Connector 40” FHD LCD Display Input Part no. MIL Standard MS3470W8-33P MIL - DTL - 26482 MIL - type DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
- Page 25 HDMI DVI-D Audio S-Video R C A Audio Power P.21...
