Remote Control User Guide
Remote Control
Remote control performs the functions of a standard car key without physical
contact. When within a few yards of the car, pressing a button on the remote
can arm or disarm the Helios unit, and lock or unlock the doors. The smaller
button of the remote key fob can also be programmed to work as an
emergency button.

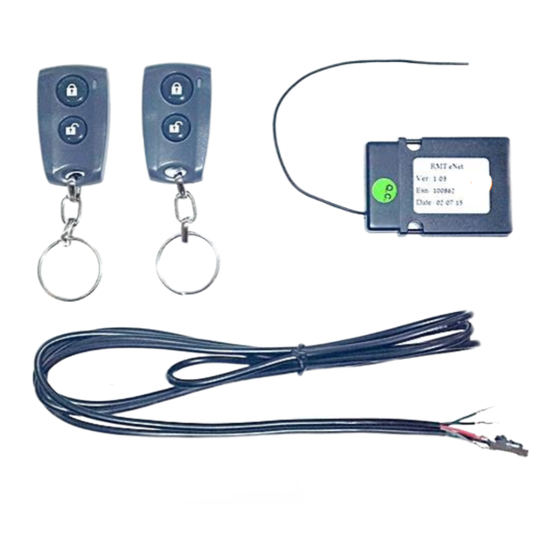

Package content
1
2
3
1. Key fob (x 2)
2. Receiver
3. Remote Control cable
1
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Starcom Systems Helios Track&trace
- Page 1 Remote Control User Guide Remote Control Remote control performs the functions of a standard car key without physical contact. When within a few yards of the car, pressing a button on the remote can arm or disarm the Helios unit, and lock or unlock the doors. The smaller button of the remote key fob can also be programmed to work as an emergency button.
- Page 2 Remote Control User Guide Connecting the Remote Control to Helios Plug the Remote Control cable connector to the socket on the Receiver. Cut the Keypad/Dallas connector on the Helios wire harness and connect the wires to the Remote Control cable the following way: Connect the wire from the Remote Control cable to wire on the Helios...
- Page 3 Remote Control User Guide Configuring the Helios unit Connect the Helios unit to the computer, open the Installer application and connect to the unit. In order for the Helios unit to recognize the Remote Control, click on Learn Remote Control in the Unit Status window. Click Send and press the Lock or Unlock button on the key fob.
- Page 4 Remote Control User Guide Open the Helios Parameters window and press the Read from unit button. The Remote Control will appear as a code in the Driver IDs tab.
- Page 5 Remote Control User Guide To configure the Remote Control to Arm and Disarm the Helios unit, in the Inputs tab, disable all Use for Arm and Use for Disarm options. In the Logic tab, change the Idle -> Arm dropdown menu value to None.
- Page 6 Remote Control User Guide Click Send to send the changes to the unit. Now you can use the larger Lock button to Arm and the smaller Unlock button to Disarm the Helios unit. Disarm To use the Remote Control in combination with immobilizer, in the Outputs tab select the Immobilizer option and set On when: Armed in the dropdown menu.
- Page 7 Remote Control User Guide To configure the Remote Control to Lock and Unlock the vehicle doors, in the Hardware tab, enable the Lock/Unlock from the Remote Control option. Click Send to send the changes to the unit. Now you can use the larger Lock button to Arm / Lock and the smaller Unlock button to Disarm / Unlock.
- Page 8 Remote Control User Guide To configure the smaller Unlock button as an emergency button, select the Use the Remote Control’s small button as an Emergency option in the Hardware tab. Click Send to send the changes to the unit. Now you can use the larger Lock button to Arm / Lock / Disarm / Unlock and the smaller Unlock button as an Emergency button.
- Page 9 Remote Control User Guide To receive an audible signal from the vehicle horn when the unit is Armed/Disarmed, select the Use siren when arming/disarming by Remote Control or iButton option in the Hardware tab. Click Send to send the changes to the unit.
