HAHN+KOLB ORION ELECTRONIC DEPTH MICROMETER Operation Manual

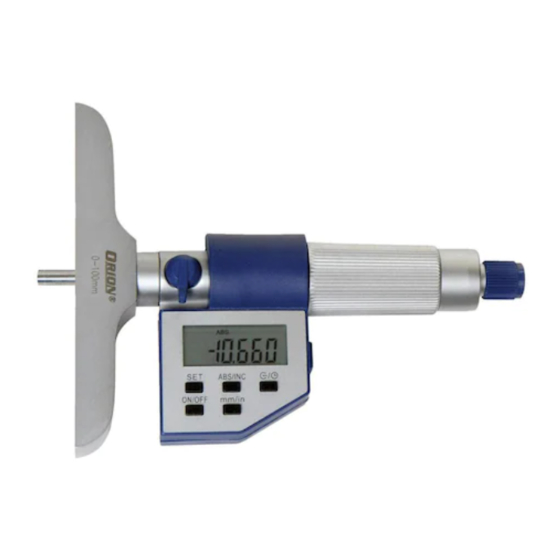

ELECTRONIC DEPTH MICROMETER
OPERATION MANUAL

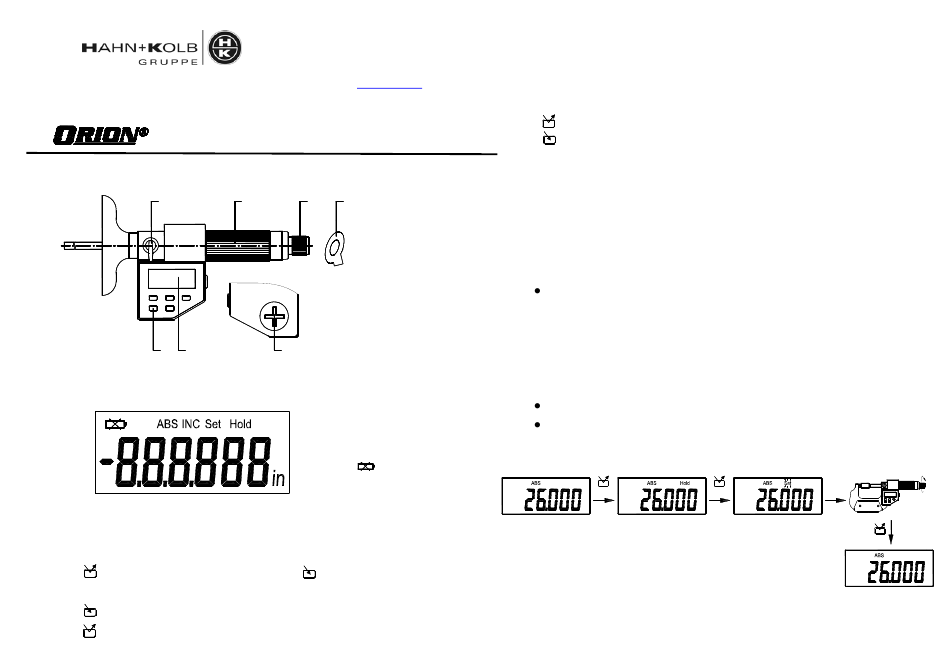

1. Functional elements

1
Front View
5 6
Part of back view

2. LCD Display

3. Operation

Two ways of pressing key are used in the following illustration:
(1) Press and release(or press for short).

3.1 HOLD and ON/OFF

： ON/OFF Power on/off.
： HOLD Hold the displayed value.
HAHN+KOLB Werkzeuge GmbH
Borsigstrasse 50 70469 Stuttgart
Postfach 30 05 69 70445 Stuttgart
Tel. 0711-9813-0 Fax 0711-9813-354
info@hahn-kolb.de www.hahn-kolb.de
2 3 4
1．Locking device
2．Ratchet thimble
(or friction thimble)
3．Ratchet stop
(or quick drive)
4．Spanner
5．Keys
6．LCD display
7
7．Battery cap
: Inch mode
in
INC : Relative measuring
ABS: Absolute measuring
: Battery voltage is low
Set : Set the origin
Hold: Displayed value is held
(2) Press and hold (more than 1 sec.).
Set the origin.

3.2 SET

3.3 0-ABS

： 0 Set display to zero, enter relative measuring mode.
： ABS Absolute measuring mode.
Metric/Inch measuring mode conversion.

3.4 mm/in

4. Set and adjust the origin

4.1 Set the origin

a. Press "SET" key, "Set" flashes and origin is displayed.
b. Press "SET" key again, "Set" disappears and the displayed value is set to the origin.
Rotating spindle will not change the origin when "Set" flashing.

4.2 Adjust the origin

a. Rotate the thimble until desired value is displayed(for example 26.000). Press "HOLD" key
to hold this value.
b. Press "SET" key, "Set" flashes and the displayed value is stored as the origin.
c. Press "SET" key again, "Set" disappears and this value is set to the origin.
Rotating spindle will not change the displayed value when "Set" flashing.
The origin will get back to the factory setting after reset the battery.
Hold SET
SET
