HAHN+KOLB ORION Instruction Manual

1. Maintenance Instructions:

1.1 Before using the Electronic Depth Calliper, clean the surface of the
protective sticker with dry and clean cloth (or soaked with cleaning oil).
Prevent any hydrous liquid from the protective sticker.
1.2 Never apply voltage (e. g. engraving with an electric pen) on any part of the
Electronic Depth Calliper for fear of damaging the circuit.
1.3 As soon as the instrument would be opened from the user the guarantee will
be cancelled.

2. Technical Specifications:

2.1 Measuring range: 0-150mm or 0-200mm or 0-300mm or 0-500mm
2.2 Resolution: 0.01mm / 0.0005in
2.3 Error limit: DIN 862
2.4 Maximum sliding speed: 1,5m/s (60"/s)
2.5 Power: 1 x 1.55 V silver oxyde button cell (type SR44)
2.6 Auto power on after moving the slider
2.7 Power safe function: Auto power off after 20 minutes (last measured value will
be recorded)

3. Working Conditions:

3.1 Working temperature: 0~+40degrees Celsius
3.2 Storage temperature: -10 degrees~+60 degrees Celsius

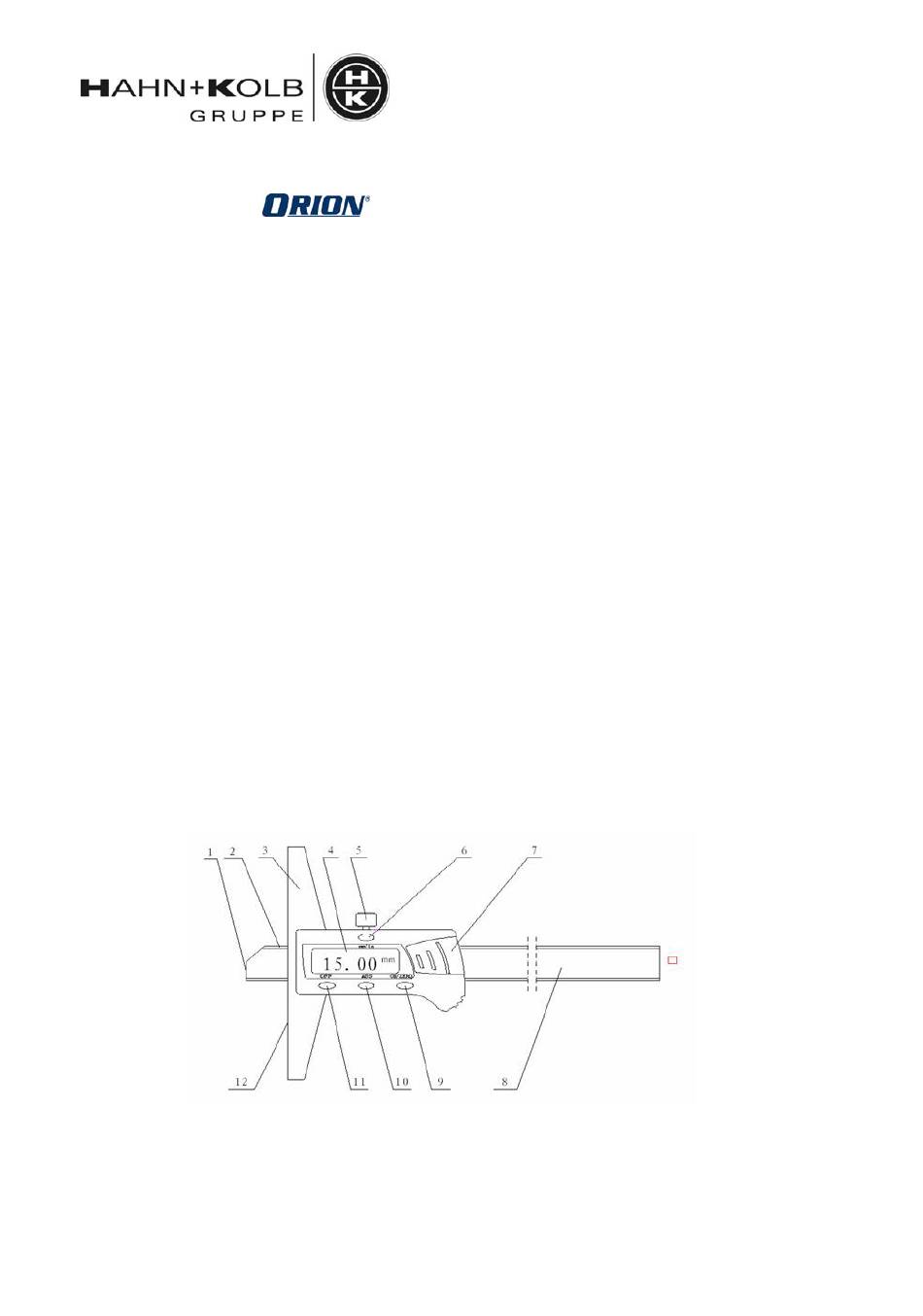

Diagrammatic Sketch of Structure
1. Measuring stop face
4. LCD-display
7. Battery cover
10. ABS button
HAHN+KOLB Werkzeuge GmbH
Borsigstrasse 50 70469 Stuttgart
Tel. 0711-9813-0
info@hahn-kolb.de
Instruction Manual
Electronic Depth Calliper
2. Beam
5. Locking screw
8. Protective Sticker
11. OFF/ON button
Postfach 30 05 69 70445 Stuttgart
Fax. 0711-9813-354
www.hahn-kolb.de
3. Slider
6. mm/inch button
9. ZERO button
12. Measuring Bridge
