- Page 1 User Manual AR-40-108 1x2 HDMI 2.0 Splitter All Rights Reserved Version: AR-40-108_2020V1.0...
- Page 2 Statement Thanks for purchasing this product, please read this user manual carefully before using this product. The functions described in this version are updated till November, 2020. In the constant effort to improve our product, we reserve the right to make functions or parameters changes without notice or obligation.

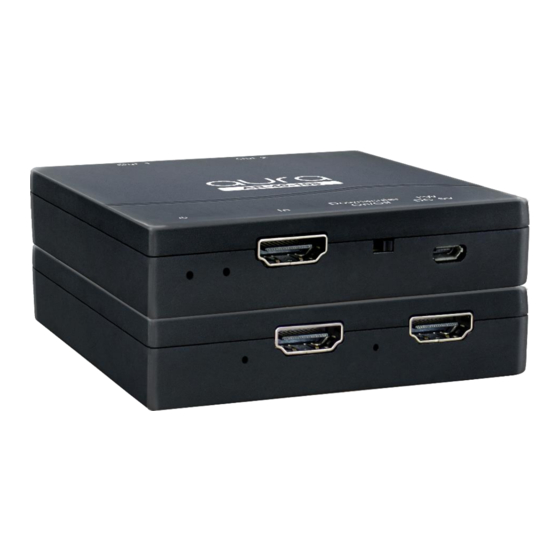

- Page 3 Product Introduction Thanks for choosing the 1x2 HDMI 2.0 Splitter, which can distribute one HDMI input to two outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4 and supports passing EDID information from the display, there is a built-in Down-scaling setting can be selected by the 2-pin DIP switch on the front panel.
- Page 4 Video Resolution Down-scaling The product supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display, shown in the below chart. Input Output Color Resolution Refresh Downscale 1080p Specs Space 3840x2160 4:4:4 Support 1080p@60Hz 4:4:4 3840x2160...
- Page 5 5) If the filename “READY.TXT” automatically turns to “SUCCESS.TXT”, the firmware was upgraded successfully. If the firmware upgrade failed, please check the file (.bin) and then follow the above procedure to operate again. 6) Remove the USB cable after firmware upgrade. Specification Video Input Input...
- Page 6 www.aura-av.com...
