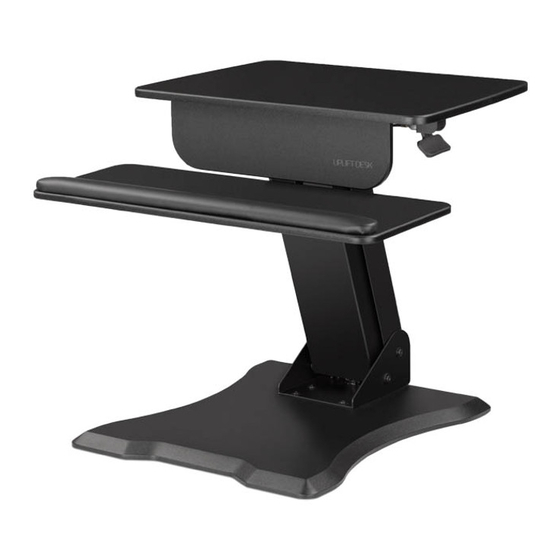

Riser Standing Desk Converter
UDA100-RISER

Package Contents

Main unit
45°
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
Keyboard Tray
M6x10 bolts
(qty 2)

Step 1

Compare the parts you have with the list above. Place the
Main unit upside down on a table.
Attach the Keyboard tray using two M6x10 bolts, and tighten
using the smaller Allen wrench, as shown to the left.
Use the self-adhesive Bolt covers to cover the bolts.

Step 2

With two people, lift and flip the Main assembly and place it on
the table
Adjust the height of the unit by squeezing the release paddle
and moving to the desired position. Release the paddle to lock
in place.
Step 3
This step is optional. We have pre-adjusted the tension for
you. However, you may need to make adjustments once
equipment, such as monitors and keyboards, are placed on
the unit.
To adjust the lift to the exact amount of weight you place on
it; squeeze the paddle then lower the unit until the main sup-
port column is at a 45° angle. Using the larger Allen wrench
and the tension adjustment bolt on the rear of the unit, adjust
the tension for smooth operation. Turn clockwise to lessen
the tension or counterclockwise to increase it.
Allen wrench
Allen wrench
(large)
(small)
(Optional)
Bolt covers
(qty 6)
