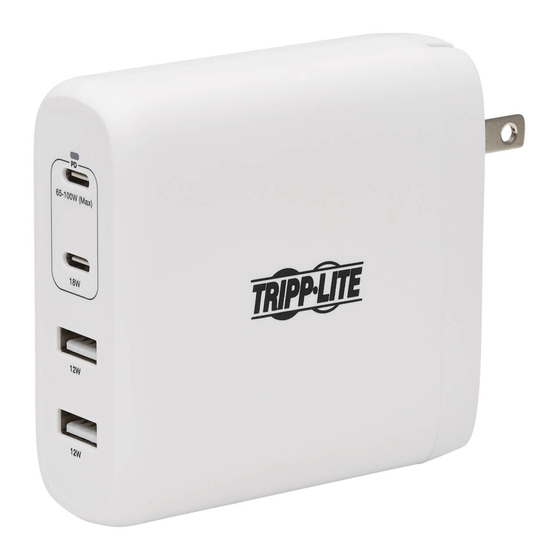

USB-A/USB-C Wall Charger
- GaN Technology, USB-C
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
08-290 933CFE.indd 1
08-290 933CFE.indd 1
Quick Start Guide
100W Compact 4-Port
Power Delivery 3.0
Model: U280-W04-100C2G
Este manual esta disponible en español en la página
de Tripp Lite: www.tripplite.com/support
Ce manuel est disponible en français sur le site Web
de Tripp Lite : www.tripplite.com/support
WARRANTY REGISTRATION
Register your product today and be automatically entered to
win an ISOBAR
tripplite.com/warranty
Copyright © 2020 Tripp Lite. All rights reserved.
USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum
surge protector in our monthly drawing!
®
1
9/15/2020 11:17:35 A
9/15/2020 11:17:35 A
Advertisement
Table of Contents
Related Manuals for Tripp Lite U280-W04-100C2G
Summary of Contents for Tripp Lite U280-W04-100C2G
- Page 1 ® tripplite.com/warranty 1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support Copyright © 2020 Tripp Lite. All rights reserved. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum 08-290 933CFE.indd 1 08-290 933CFE.indd 1...
-
Page 2: Package Contents
Package Contents • U280-W04-100C2G • Quick Start Guide Product Features • Travel-sized wall charger with 2 USB-A and 2 USB-C ports provides up to 100W to quickly and efficiently charge your mobile device at home or on the road • Gallium nitride (GaN) technology generates less heat to support high-efficiency charging •... -
Page 3: Operation
Operation 1. Plug the power adapter into an AC wall outlet. 2. Connect one end of a user-supplied USB cable into the charger and the other end into the mobile device (smartphone, tablet, laptop, e-reader, etc.). 3. Disconnect the USB cable when the device is fully charged. Note: If the charger stops working because of over-current, over- temperature or short circuit, disconnect the device immediately. -
Page 4: Specifications
Specifications Input/Output Input 100–240 VAC, 50/60 Hz Output USB-C Port 1: 5V–15V 3A, 20V 3.25A (output single: 20V 5A) USB-C Port 2: 5V 3A, 9V 2A USB-A Ports 3 & 4: 5V 3.4A (output single: 5V 2.4A) Input Plug NEMA 1-15P (non-polarized) Protection Over-Current Short Circuit... - Page 5 Specifications Overload Performance AC Leakage Current 5 max at 240 VAC input ≤200mV Ripple and Noise Turn-on delay time 3s max Rise time 20 ms Efficiency Conform VI energy efficiency Mechanical Color White Dimensions 3.0 x 8.1 x 8.0 cm / 1.2 x 3.2 x 3.1 in. (H x W x D) 08-290 933CFE.indd 5 08-290 933CFE.indd 5...
- Page 6 Specifications Weight 0.26 kg / 0.58 lb. Environmental Operating 32° to 77°F / 0° to 25°C Temperature Range Storage -4° to 176°F / -20° to 80°C Temperature Range Operating Humidity 20 to 90 % RH Range Storage Humidity 5 to 90 % RH Range Regulatory Approvals Main Unit...
-
Page 7: Warranty And Product Registration
PRODUCT REGISTRATION Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See website for details. - Page 8 1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support 20-08-290 • 93-3CFE_RevA 08-290 933CFE.indd 8 08-290 933CFE.indd 8 9/15/2020 11:17:35 A 9/15/2020 11:17:35 A...
