5-Port USB-IF Certified Charging
Este manual esta disponible en español en la página de Tripp Lite :
Ce manuel est disponible en français sur le site Web de Tripp Lite :
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
19-05-131-93395A-EN.indd 1
Quick Start Guide
Station with (x4) USB-A and
(x1) USB-C

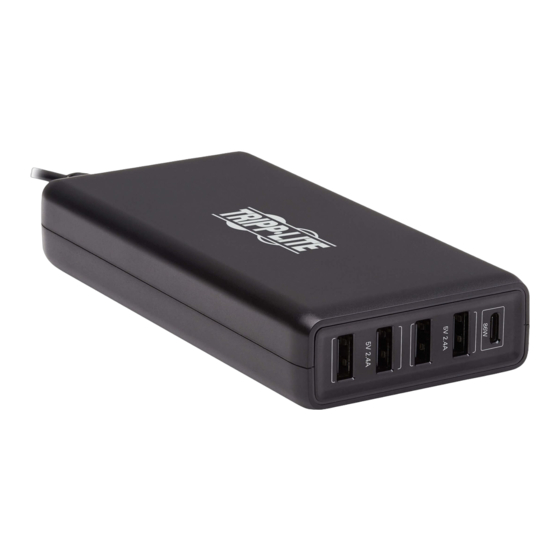

Model: U280-005-WS4C1
USB Type-C and USB-C are trademarks of USB Implementers Forum
www.tripplite.com/support
www.tripplite.com/support
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an
ISOBAR surge protector in our monthly drawing!
www.tripplite.com/warranty
Copyright © 2019 Tripp Lite. All rights reserved.
Charging Ports
™
1
5/23/2019 4:39:23 PM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tripp Lite U280-005-WS4C1
Summary of Contents for Tripp Lite U280-005-WS4C1
- Page 1 USB Type-C and USB-C are trademarks of USB Implementers Forum Este manual esta disponible en español en la página de Tripp Lite : www.tripplite.com/support Ce manuel est disponible en français sur le site Web de Tripp Lite : www.tripplite.com/support WARRANTY REGISTRATION...
-
Page 2: Product Features
• Provides overheating, overcurrent and overvoltage protection • Internal dual-voltage (100-240V) power supply does not require a bulky external power adapter Package Contents • U280-005-WS4C1 • C7 to 1-15P Power Cord, 4 ft. (1.2 m) • Quick Start Guide 19-05-131-93395A-EN.indd 2... -
Page 3: Optional Accessories
Optional Accessories • M100-Series USB to Lightning Cables • M110-Series USB to Apple 30-Pin Cables • P012-006 C7 to 1-15P Power Cord, 6 ft. (1.8 m) • U030-Series USB 5-Pin Mini-B Cables • UR030-Series Reversible USB 5-Pin Mini-B Cables • UR050-001-24G 24 AWG Reversible USB 2.0 Micro-B Cable, 1 ft. -
Page 4: Important Safety Instructions
Important Safety Instructions • Always read the safety instructions carefully. • Keep these instructions for future reference. • Do not install near any heat sources, such as radiators, heat registers, stoves or other equipment (including amplifiers) that produce heat. • Unplug the unit during lightning storms or when unused for extended periods of time. -
Page 5: Usb Charging
USB Charging To charge your USB devices, simply connect the included power cord between the U280-005-WS4C1 and a power source, then plug your devices into the available ports. A maximum of 5V 2.4A, 12W (5V 4.8A, 24W total) power per bank is provided over the four USB-A ports and up to 20V 4.3A (86W) is provided over... -
Page 6: Specifications
Specifications Ports USB-A, Female (x4) USB-C, Female (x1) Protection Output Overcurrent Overvoltage Overload Over Temperature Short Circuit AC Leakage Current 0.25mA Max Performance Ripple and Noise <200mV Turn-On Delay Time 3s Max Rise Time 20mS Efficiency USB-A: > 81.39% USB-C: >81.39%---5V >86.62%---9V >87.40%---12V >87.73%---15V... -
Page 7: Warranty And Product Registration
Warranty and Product Registration 2 Year Limited Warranty TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of two (2) years from the date of initial purchase. TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. - Page 8 • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment. WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)
