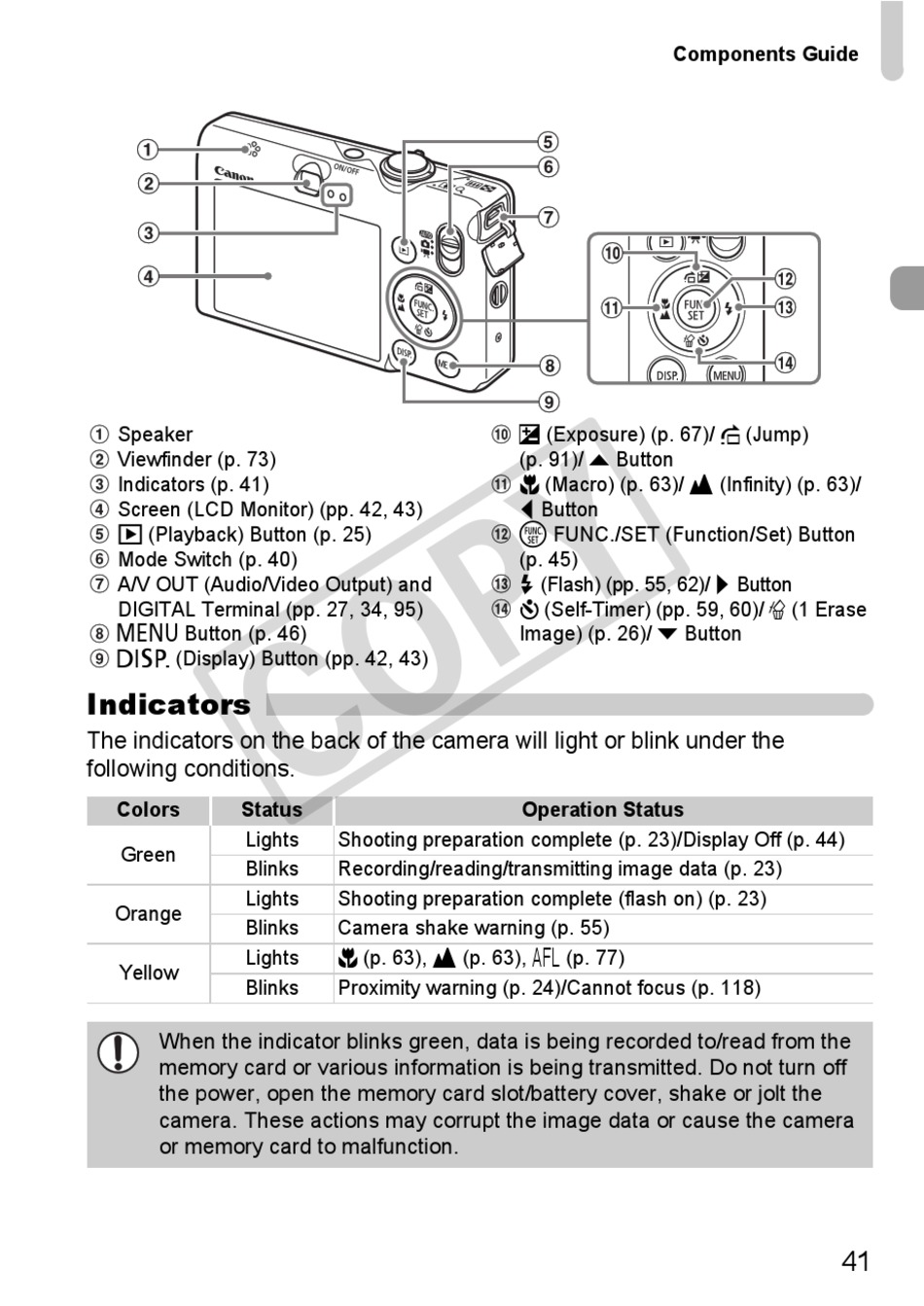

Canon SD1200 IS User Manual page 41

Speaker
Viewfinder (p. 73)
Indicators (p. 41)
Screen (LCD Monitor) (pp. 42, 43)
1 (Playback) Button (p. 25)
Mode Switch (p. 40)
A/V OUT (Audio/Video Output) and
DIGITAL Terminal (pp. 27, 34, 95)
n Button (p. 46)
l (Display) Button (pp. 42, 43)
Indicators
The indicators on the back of the camera will light or blink under the
following conditions.
Colors Status
Lights
Green
Blinks
Lights
Orange
Blinks
Lights
Yellow
Blinks
When the indicator blinks green, data is being recorded to/read from the
memory card or various information is being transmitted. Do not turn off
the power, open the memory card slot/battery cover, shake or jolt the
camera. These actions may corrupt the image data or cause the camera
or memory card to malfunction.
Shooting preparation complete (p. 23)/Display Off (p. 44)
Recording/reading/transmitting image data (p. 23)
Shooting preparation complete (flash on) (p. 23)
Camera shake warning (p. 55)
e (p. 63), u (p. 63), % (p. 77)
Proximity warning (p. 24)/Cannot focus (p. 118)
Components Guide
b (Exposure) (p. 67)/ d (Jump)
(p. 91)/ o Button
e (Macro) (p. 63)/ u (Infinity) (p. 63)/
q Button
m FUNC./SET (Function/Set) Button
(p. 45)
h (Flash) (pp. 55, 62)/ r Button
Q (Self-Timer) (pp. 59, 60)/ a (1 Erase
Image) (p. 26)/ p Button
Operation Status
41
