PA MI42-316 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
E
T
L

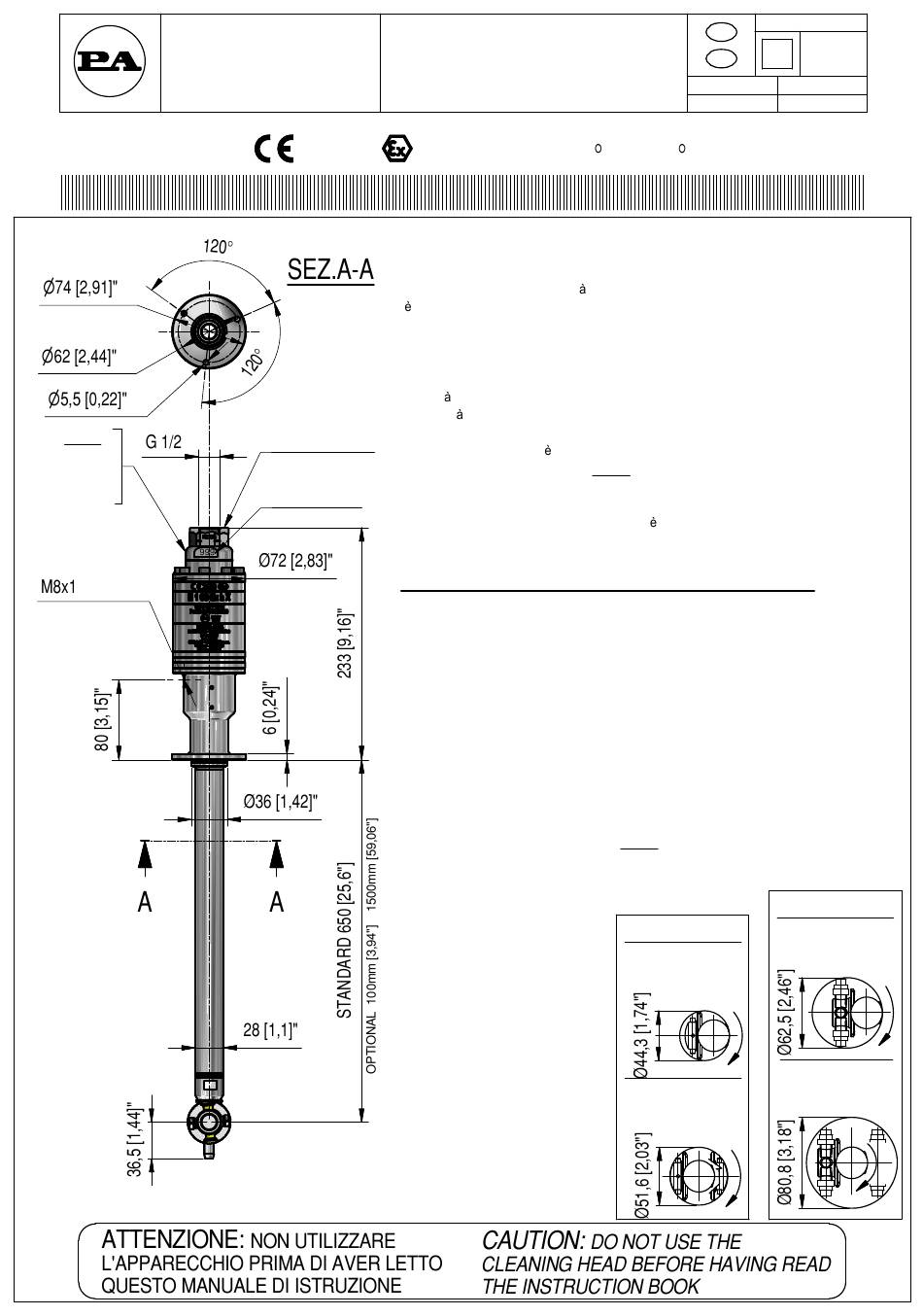

MI42-316
E ( EPDM )
N ( NBR )
K ( FFKM )
V ( FKM)
- CONTAGIRI INDUTTIVO
NON FORNITO
- COUNTER INDUCTIVE
NOT PROVIDED
QUIPAGGIAMENTI
ECNICI
AVAGGIO
2460
FILTRO INTERNO
INTERNAL FILTER
NUMERO DI SERIE
SERIAL NUMBER
TESTINE ROTANTI
TANK CLEANERS
MI42-316
MOD.
II 1 G Ex h IIC T6...T4 Ga
II 1 D Ex h IIIC T85 C...T135 C Da
TESTINA AUTOMOVENTE PULIZIA CISTERNE
-Costruzione in acciaio INOX AISI 316.
-Idonea per impiego settore alimentare.
-Testina volumetrica , la velocit di rotazione
proporzionale alla portata in ingresso.
-Lavaggio superfici interne di contenitori e serbatoi.
-Portata ridotta, alta pressione, elevata forza di impatto.
-Copertura orbitale completa degli interni.
-Minimo ingombro radiale che ne permette l'introduzione in passaggi ridotti
-Velocit di rotazione indipendente dalla temperatura dell'acqua.
-Possibilit di installare un contagiri.
ATTENZIONE !
-La Testina STANDARD
fornita di guarnizioni
(DINAMICHE) in PTFE + O-Ring EPDM .
-Lubrificare solo con: Grasso al silicone teflonato
-Per l'utilizzo di liquidi detergenti, additivi chimici ecc.
non compatibili con le guarnizioni standard
contattare il nostro UFFICIO TECNICO.
-Le guarnizioni (STATICHE) sono in FKM (viton).
-Tutti i materiali utilizzati per la costruzione sono approvati dalla NSF.
CLEANING HEAD
-Stainless steel construction.
-Suitable for utilization in food industry.
-This is a self-propelled tank cleaning
head: when the flow rate increases, the head rotates faster.
-Cleaning of interior surfaces of tanks and drums.
-Reduced flow, high pressure, high cleaning impact.
-Complete orbital coverage of all interior surfaces.
-Small spray turret that fits through reduced tank opening.
-Rotating speed indipendent from water temperature.
-Possible installation of an RPM counter.
ATTENTION !
-The STANDARD Tank cleaning head is supplied with
seals (DYNAMIC) in PTFE + O-Ring EPDM .
-Lubricate only with silicone-teflon grease
-For use with Detergent liquid, Chemical additives etc that are not compatible
with the standard seals, it is essential to contact
our TECHNICAL OFFICE
for further information.
-The STATIC seals
are in FKM (viton)
-Materials used for manufacturing
have NSF approval.
I
4
GB
(ATEX)
12.9428.16
MANUALE ISTRUZIONI
INSTRUCTIONS BOOK
indispensabile
UGELLI
M4
NOZZLES
Foro entrata minimo
in manuale
Minimum inlet hole
for manual operation
Foro entrata minimo
in automatico
Minimum inlet hole
for automatic operation
27
Rev. 04
10/04/2020
UGELLI
1/8NPT
NOZZLES
Foro entrata minimo
in manuale
Minimum inlet hole
for manual operation
Foro entrata minimo
in automatico
Minimum inlet hole
for automatic operation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MI42-316 and is the answer not in the manual?

Questions and answers

Related Manuals for PA MI42-316

Summary of Contents for PA MI42-316

  • Page 1 TESTINE ROTANTI QUIPAGGIAMENTI TANK CLEANERS ECNICI Rev. 04 MI42-316 (ATEX) MOD. AVAGGIO 12.9428.16 10/04/2020 II 1 G Ex h IIC T6...T4 Ga MANUALE ISTRUZIONI MI42-316 2460 II 1 D Ex h IIIC T85 C...T135 C Da INSTRUCTIONS BOOK TESTINA AUTOMOVENTE PULIZIA CISTERNE -Costruzione in acciaio INOX AISI 316.
  • Page 2 TESTINE ROTANTI QUIPAGGIAMENTI TANK CLEANERS ECNICI Rev. 04 MI42-316 (ATEX) MOD. AVAGGIO 12.9428.16 10/04/2020 II 1 G Ex h IIC T6...T4 Ga MANUALE ISTRUZIONI MI42-316 2460 II 1 D Ex h IIIC T85 C...T135 C Da INSTRUCTIONS BOOK SPECIFICHE TECNICHE...
  • Page 3 ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 1 of 10 DOCUMENT REVISION REV. DATE MODIFICATION 22/04/2020 First issue PREPARED BY Michele QUATTRONE SIGNATURE CHECKED BY Fabio PEDRONI SIGNATURE APPROVED BY Alberto BENETTI SIGNATURE...

  • Page 4: Table Of Contents

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 2 of 10 INDEX INTRODUCTION ..............................3 DESCRIPTION OF THE PRODUCT ........................... 3 CLASSIFICATION & MARKING ........................3 FIELD OF APPLICATION ..........................4 TERMS USED............................... 5 INSTRUCTIONS FOR USE............................5 STORING, SHIPPING AND MOVING ......................

  • Page 5: Introduction

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 3 of 10 1. INTRODUCTION PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE INSTALLING ANY EC-MARKED PART (CLEANING HEAD), ACCORDING TO THE ATEX PARTS DIRECTIVE 2014/34/EU IN A POTENTIALLY EXPLOSIVE ATMOSPHERE AS DEFINED IN THE ATEX WORK ENVIRONMENT DIRECTIVE 99/92/EC.

  • Page 6: Field Of Application

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 4 of 10 2.2 FIELD OF APPLICATION The head is designed to be used with water up to 90 °C, with addition of mild detergents or disinfectants. In case of use with special or even flammable liquids (different viscosity, chemical harshness or other), please contact our technical department.

  • Page 7: Terms Used

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 5 of 10 2.3 TERMS USED Qualified/Specialised Technician: personnel who was trained for installation, adjustment, maintenance, repair. It is required that the technician shall be trained and allowed to perform such tasks, and to have specific knowledge not only of the tool and the risks stemming from its use, but also the possible risks of the appliance in question.

  • Page 8: Filtering Of Liquid

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 6 of 10 3.4 FILTERING OF LIQUID The fluid sent from the system to the head has to be filtered in order to prevent particles to slip through causing malfunction and therefore frequent maintenance interventions.

  • Page 9: Suitable & Non-Suitable Use

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 7 of 10 3.5.2 SUITABLE & NON-SUITABLE USE Overall utilization: The head can work solely by a continuous flow which fills constantly the body, minus impurities and air bubbles.

  • Page 10: Ppe (Personal Protective Equipment) & Procedures Training

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 8 of 10 Electric currents and protection against cathode corrosion. Static electricity Earth connect all the wires which could dangerously charge through certain connection points. The installer is responsible for checking that there are no insulated metal parts. The User must regularly check the effectiveness of the ground connection.

  • Page 11: System Procedures

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 9 of 10 3.6 SYSTEM PROCEDURES 3.6.1 TOOLS & MACHINERY The safety of the system is also in function with control devices (conform with Directive 2014/34/EU) which must be absolutely independent from the head.

  • Page 12: Extraordinary Maintenance And Repair

     A42R-316: pos. 23 and 32  A42R-316-360°: pos. 3 and 16  MI42-316: pos. 21 and 36  A80RA: pos. 5 and 19  MI63A: pos. 3 and 23 Verify that the slide surfaces of the seals are in good conditions: replace the parts if worn out. Check also bearings, bushings and gears: replace if damaged.
  • Page 13 25.3650.40 MI42-316 Test.L.650-1/8Npt >40 l/m-NSF 25.3650.50 MI42-316 Test.L.650-1/8Npt >50 l/m-NSF Pos. Codice Descrizione Q.tà K1K2K3K4 Pos. Codice Descrizione Q.tà K1K2K3K4 1 16.1910.00R ViteTCei M6 x 100 mm inox 23 80.0816.60R Boccola p/tenute nich.Ai316 2 80.0813.60R Raccordo entrata Ai316 24 10.3019.19R O-Ring, 1,5x9,0 mm Vi 70-Nsf •...
  • Page 14 Codice Descrizione K1 25.3652.24 Kit ric.guarniz. MI42-316 8x1Stk. (1) 25.3650.50 Aggiornato al 18/02/2022...
  • Page 15 25.3650.40 MI42-316-rot.nozz.L 650- 40l/min-NSF 25.3650.50 MI42-316-rot.nozz.L 650- 50l/min-NSF Pos. Description Q.ty K1K2K3K4 Pos. Description Q.ty K1K2K3K4 1 16.1910.00R Screw, DIN912 M6x100 mm Sst. 23 80.0816.60R Seal holding pin, Sst. 2 80.0813.60R Inlet coupl., 1/2Bsp F Sst. 24 10.3019.19R O-Ring, 1,5x9,0 mm Vi 70-Nsf •...
  • Page 16 Description K1 25.3652.24 Seals Spares Kit - MI42-316 8x1Stk. (1) 25.3650.50 Last updated 18/02/2022...
