PA MI63-50 Instruction Book

Atex hydrokinetic rotating cleaning head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2460
2460

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MI63-50 and is the answer not in the manual?

Questions and answers

Related Manuals for PA MI63-50

Summary of Contents for PA MI63-50

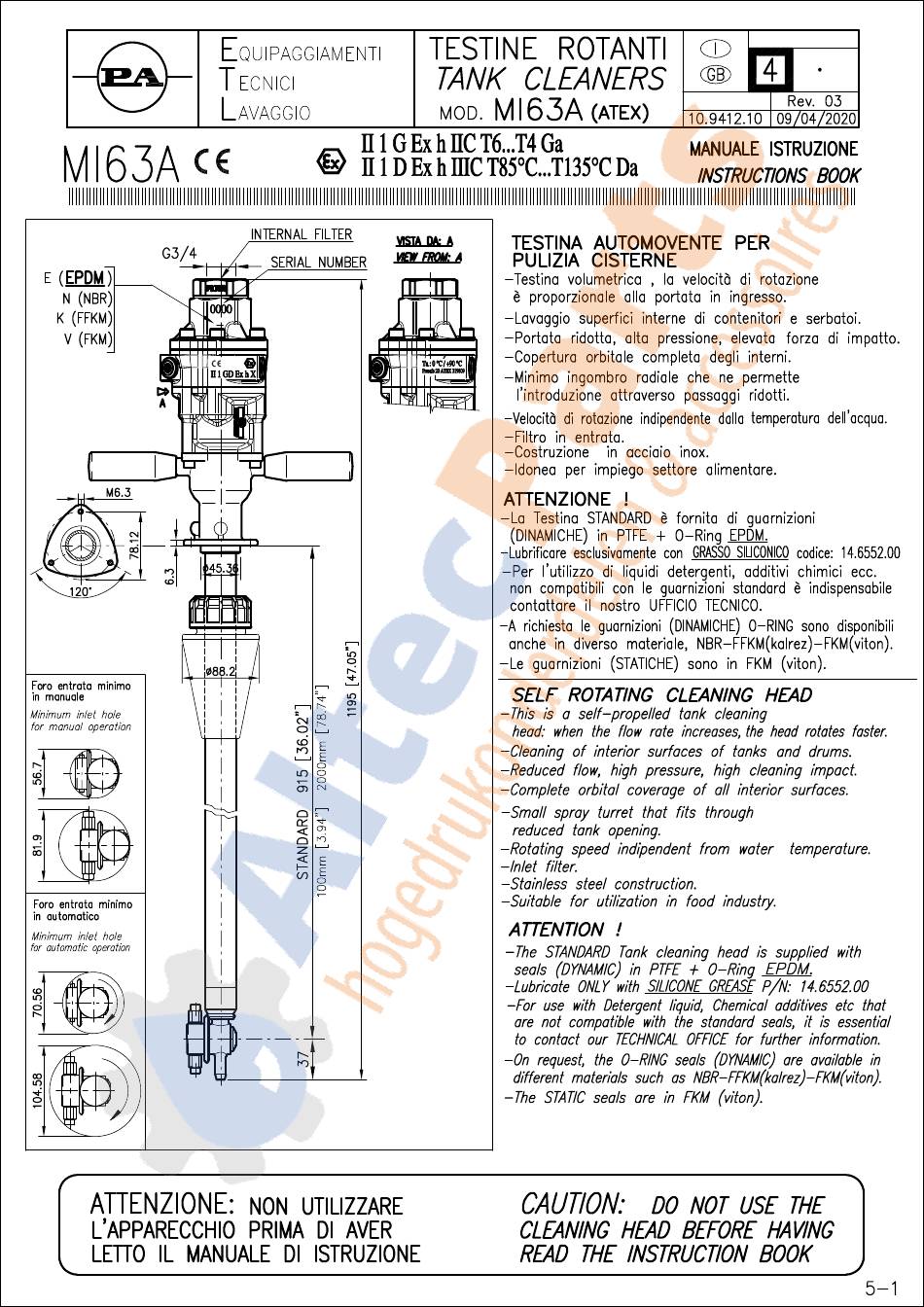

  • Page 1 2460 2460...
  • Page 2 2460...
  • Page 3 ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 1 of 10 DOCUMENT REVISION REV. DATE MODIFICATION 22/04/2020 First issue PREPARED BY Michele QUATTRONE SIGNATURE CHECKED BY Fabio PEDRONI SIGNATURE APPROVED BY Alberto BENETTI SIGNATURE...

  • Page 4: Table Of Contents

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 2 of 10 INDEX INTRODUCTION ..............................3 DESCRIPTION OF THE PRODUCT ........................... 3 CLASSIFICATION & MARKING ........................3 FIELD OF APPLICATION ..........................4 TERMS USED............................... 5 INSTRUCTIONS FOR USE............................5 STORING, SHIPPING AND MOVING ......................

  • Page 5: Introduction

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 3 of 10 1. INTRODUCTION PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE INSTALLING ANY EC-MARKED PART (CLEANING HEAD), ACCORDING TO THE ATEX PARTS DIRECTIVE 2014/34/EU IN A POTENTIALLY EXPLOSIVE ATMOSPHERE AS DEFINED IN THE ATEX WORK ENVIRONMENT DIRECTIVE 99/92/EC.

  • Page 6: Field Of Application

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 4 of 10 2.2 FIELD OF APPLICATION The head is designed to be used with water up to 90 °C, with addition of mild detergents or disinfectants. In case of use with special or even flammable liquids (different viscosity, chemical harshness or other), please contact our technical department.

  • Page 7: Terms Used

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 5 of 10 2.3 TERMS USED Qualified/Specialised Technician: personnel who was trained for installation, adjustment, maintenance, repair. It is required that the technician shall be trained and allowed to perform such tasks, and to have specific knowledge not only of the tool and the risks stemming from its use, but also the possible risks of the appliance in question.

  • Page 8: Filtering Of Liquid

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 6 of 10 3.4 FILTERING OF LIQUID The fluid sent from the system to the head has to be filtered in order to prevent particles to slip through causing malfunction and therefore frequent maintenance interventions.

  • Page 9: Suitable & Non-Suitable Use

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 7 of 10 3.5.2 SUITABLE & NON-SUITABLE USE Overall utilization: The head can work solely by a continuous flow which fills constantly the body, minus impurities and air bubbles.

  • Page 10: Ppe (Personal Protective Equipment) & Procedures Training

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 8 of 10 Electric currents and protection against cathode corrosion. Static electricity Earth connect all the wires which could dangerously charge through certain connection points. The installer is responsible for checking that there are no insulated metal parts. The User must regularly check the effectiveness of the ground connection.

  • Page 11: System Procedures

    ATEX HYDROKINETIC ROTATING CLEANING HEADS SAFETY NOTE SN01 Rev. 00 Date 22/04/2020 Pag. 9 of 10 3.6 SYSTEM PROCEDURES 3.6.1 TOOLS & MACHINERY The safety of the system is also in function with control devices (conform with Directive 2014/34/EU) which must be absolutely independent from the head.

  • Page 12: Extraordinary Maintenance And Repair

    Verify that the slide surfaces of the seals are in good conditions: replace the parts if worn out. Check also bearings, bushings and gears: replace if damaged. Use only original “PA” spare parts. Lubricate only with silicone grease (14.6552.00) and do not use mineral grease or oil otherwise internal parts will be subject to rupture.
  • Page 13 25.4600.20 MI63-50 test.mot.idrocin.,iniett.2mm 25.4600.40 MI63-50 test.mot.idrocin.,iniett.4mm 25.4600.24 MI63-45 test.mot.idrocin.,iniett.2mm 25.4600.50 MI63-50 test.mot.idrocin.,iniett.5mm 25.4600.30 MI63-50 test.mot.idrocin.,iniett.3mm 25.4902.25 MI63A-50-1/8 tes.id/cin.inie.2,5mm Atex 2460 Aggiornato al 06/07/2020...
  • Page 14 Pos. Codice Descrizione Q.tà K1K2K3K4 Pos. Codice Descrizione Q.tà K1K2K3K4 1 16.1954.12R Vite DIN7991 M8x12 mm inox 26 10.3080.58R An.OR 1,78x56,87 mm Vi 70 • 2 80.0015.51R Rosetta svas. 8,5x22x4,5mm inox 27 80.0219.51R Tappo EI M14x1 inox 3 10.2030.00R Guarn. stelo 15x20x2,2 mm +OR •...
  • Page 15 25.4600.20 MI63-50 Tank cl.,hydr.-driv.,2mm-inject. 25.4600.40 MI63-50-1/8 inject.4,00mm 25.4600.24 MI63-45 Tank cl.,hydr.-driv.,2mm-inject. 25.4600.50 MI63-50 Tank cl.,hydr.-driv.,5mm-inject. 25.4600.30 MI63-50 Tank cl.,hydr.-driv.,3mm-inject. 25.4902.25 MI63A-50 Tank cl.,hy.-driv.,2,5mm-Atex 2460 Last updated 06/07/2020...
  • Page 16 Pos. Description Q.ty K1K2K3K4 Pos. Description Q.ty K1K2K3K4 1 16.1954.12R Screw, DIN7991 M8x12 mm Sst. 26 10.3080.58R O-ring, 1,78x56,87 mm Vi 70 • 2 80.0015.51R C/sunk washer, 8,5x22x4,5mm Sst. 27 80.0219.51R Plug, int.hex., M14x1 Sst. 3 10.2030.00R Stem seal, 15x20x2,2 mm +O-ring •...
  • Page 20 P.A. S.p.A. Via Milano, 13 42048 Rubiera, Reggio Emilia - Italy Tel +39.0522.623611 Fax +39.0522.629600 info@pa-etl.it www.pa-etl.it COMPANY WITH QUALITY MANAGEMENT SYSTEM CERTIFIED BY DNV ISO 9001...

This manual is also suitable for:

Mi63-45Mi63a-50-1/825.4600.2025.4600.2425.4600.3025.4600.40 ... Show all
