ASSEMBLY TEMPLATE
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED

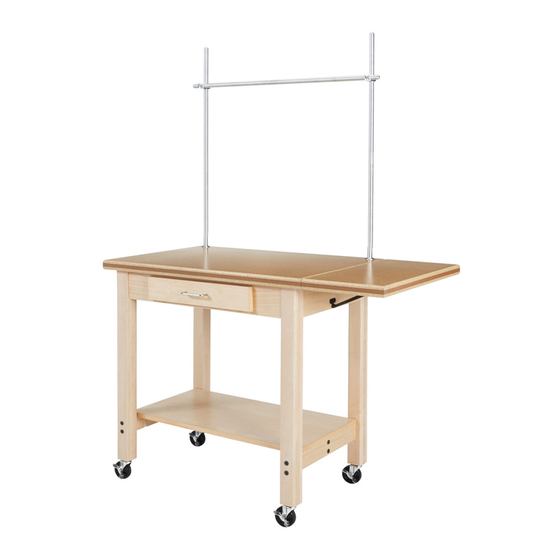

3D PRINTER TABLE
3DP-3624 (OAK OR MAPLE)
ASSEMBLY INSTRUCTIONS
A
CREATED DRAWING
REV.
DESCRIPTION
DWN
EMK
BY:
APR
BY:
APR
BY:
UNLESS OTHERWISE SPECIFIED
DIMENSION ARE IN INCHES
10/26/17
EMK
-
THIS DRAWING IS THE SOLE PROPERTY OF
DIVERSIFIED WOOD CRAFTS. IT MAY NOT
DATE
NAME
ECN NO.
BE ALTERED OR CHANGED WITHOUT
REVISION LEVEL
PERMISSION
DWN
10/26/17
DATE:
DATE
APR:
DATE
APR:
TITLE:
3D PRINTER TABLE
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
3DP-3624
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
SCALE:
SHEET:
REVISION:
REV A
NTS
1 OF 5
Advertisement
Related Manuals for DIVERSIFIED WOODCRAFTS 3D PRINTER TABLE 3DP-3624
Summary of Contents for DIVERSIFIED WOODCRAFTS 3D PRINTER TABLE 3DP-3624

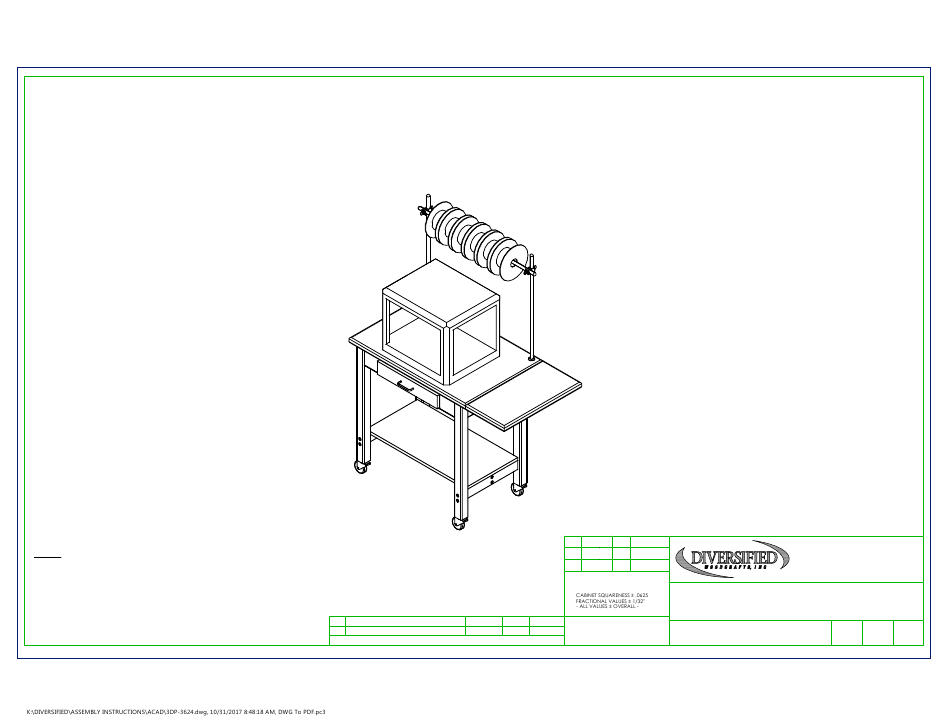

- Page 1 ASSEMBLY TEMPLATE 3D PRINTER TABLE 3DP-3624 (OAK OR MAPLE) ASSEMBLY INSTRUCTIONS 10/26/17 DATE: 300 South Krueger Street NOTE: DATE APR: Suring, WI 54174 DATE APR: diversifiedwoodcrafts.com MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES TITLE: 3D PRINTER TABLE ASSEMBLY INSTRUCTIONS...
- Page 2 ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION " WRENCH TOP ASSEMBLY (FACTORY ASSEMBLED) TOP AND APRON ASSEMBLY " SOCKET AND TORQUE WRENCH - OPTIONAL 4MM ALLEN WRENCH LEGS WITH CASTERS 501103 LEG,MPL 2.25X2.25X32.25 SCREW DRIVER STRETCHER STRETCHER - 0.75"THK X 2.50"W X 29.50"L LEG BRACE...
- Page 3 ASSEMBLY TEMPLATE LEG BRACES APRON SIDE INSERT HANGER BOLT FACING UP THROUGH HERE WITH LOCK WASHER AND HEX NUT CLOSE UP OF CORNER LEG ASSEMBLY (INTERNALS REMOVED TO SHOW CLARITY) STEP 1: STEP 2: STEP 3: LAY TOP ASSEMBLY ON FLOOR WITH APRON SIDE FACING UP. BE INSERT HANGER BOLT THROUGH CORNER BRACKET AND INSERT USING A 4MM ALLEN WRENCH, INSERT THE CONFIRMATS INTO ONE OF THE SURE TOP ASSEMBLY IS ON A CLEAN SURFACE TO PREVENT DAMAGE .
- Page 4 ASSEMBLY TEMPLATE ROD SOCKET - TYPICAL STRETCHER DRAWER SHELF ATTACH SHELF THROUGH THESE POCKET HOLES (REPEAT ON OTHER BRACE) UNDERSIDE OF TABLE SHOWN STEP 4: STEP 5: STEP 6: INSERT STRETCHER ONCE LEG BRACES ARE IN POSITION. ATTACH STRETCHER TURN TABLE OVER SO TOP IS UP. ATTACH THE SHELF TO THE TOP PLACE DRAWER INTO TABLE.
- Page 5 ASSEMBLY TEMPLATE SPOOLS FINGER BOLT - TYPICAL CROSSBAR ROD SOCKETS - TYPICAL ROD CLAMP UPRIGHTS - TYPICAL CLOSE UP OF UPRIGHT COMPLETE UNIT SHOWN STEP 7: STEP 8: STEP 9: STEP 10: INSERT TAPERED END OF THE UPRIGHT INTO THE SLIDE ROD CLAMP OVER ONE OF THE PLACE CROSS BAR ON GROOVE LOCATED ON CLAMPS.
