Charging via USB Type-C
Use a genuine Samsung AFC adaptor for 9V fast
charging. Use a minimum 5V/2A rated USB adaptor
for 5V normal charging. (A)
*Fast charging is only supported when using a genuine
Samsung AFC charger.
Charging via DC Connector
The 12V/2A DC power adaptor supports 9V fast charging
when the SKX is mounted on the charging cradle. (B)

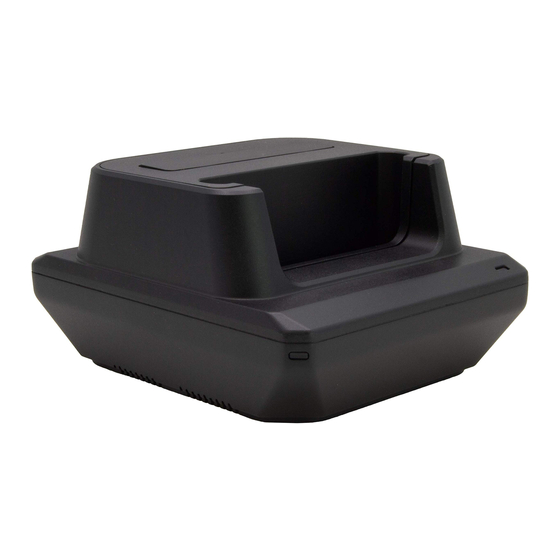

SKX Pistol Grip 1-Slot Charging Cradle
SKX Pistol Grip 5-Slot Charging Cradle
XCover 1-Slot Charging Cradle
XCover 5-Slot Charging Cradle
SKXSLED-mPOS
SKXSLED-MSRIC
5-Slot Charging via DC Connector
The 12V/10A DC power adaptor supports 9V fast charging
when the SKX is mounted on the 5-slot charging cradle. (C)
SKX
SmartSled
™
Charging Cradle Mini Guide
* All pictures shown are for illustration purpose only.
Actual product may vary.
Charging the SKX with Protective Boot
Insert the SKX with Protective Boot into the slot as
shown below. (D)
®
Advertisement
Related Manuals for KoamTac SKX SmartSled SKXSLED-mPOS
Summary of Contents for KoamTac SKX SmartSled SKXSLED-mPOS
- Page 1 Charging via USB Type-C Use a genuine Samsung AFC adaptor for 9V fast charging. Use a minimum 5V/2A rated USB adaptor for 5V normal charging. (A) SmartSled ™ ® Charging Cradle Mini Guide SKX Pistol Grip 1-Slot Charging Cradle SKX Pistol Grip 5-Slot Charging Cradle XCover 1-Slot Charging Cradle XCover 5-Slot Charging Cradle SKXSLED-mPOS...
- Page 2 Charging the SKX Removing the Battery Cover 2. The SKX will now fit into the charging cradle without 1. Assemble the SKX spacer (optional) as shown in the To remove, pull the hook on the battery cover toward the protective boot. (F) figure below.
