EN 2 1.

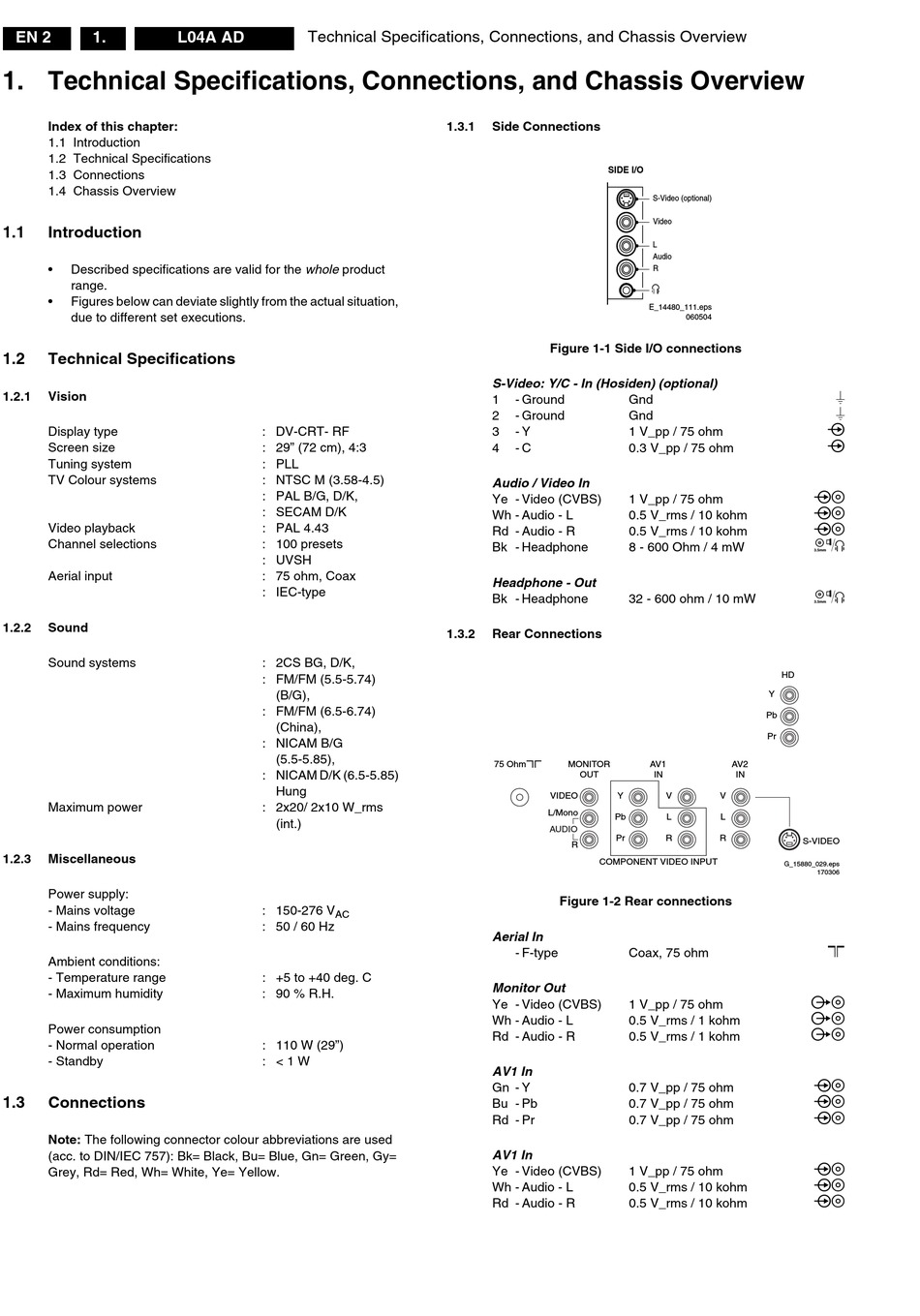

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:
1.1 Introduction
1.2 Technical Specifications
1.3 Connections
1.4 Chassis Overview
1.1 Introduction
• Described specifications are valid for the whole product
range.
• Figures below can deviate slightly from the actual situation,
due to different set executions.
1.2 Technical Specifications
1.2.1 Vision
Display type
Screen size
Tuning system
TV Colour systems
Video playback
Channel selections
Aerial input
1.2.2 Sound
Sound systems
Maximum power
1.2.3 Miscellaneous
Power supply:
- Mains voltage
- Mains frequency
Ambient conditions:
- Temperature range
- Maximum humidity
Power consumption
- Normal operation
- Standby
1.3 Connections
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, Ye= Yellow.
L04A AD Technical Specifications, Connections, and Chassis Overview
: DV-CRT- RF
: 29" (72 cm), 4:3
: PLL
: NTSC M (3.58-4.5)
: PAL B/G, D/K,
: SECAM D/K
: PAL 4.43
: 100 presets
: UVSH
: 75 ohm, Coax
: IEC-type
: 2CS BG, D/K,
: FM/FM (5.5-5.74)
(B/G),
: FM/FM (6.5-6.74)
(China),
: NICAM B/G
(5.5-5.85),
: NICAM D/K (6.5-5.85)
Hung
: 2x20/ 2x10 W_rms
(int.)
: 150-276 V
AC
: 50 / 60 Hz
: +5 to +40 deg. C
: 90 % R.H.
: 110 W (29")
: < 1 W
1.3.1 Side Connections
SIDE I/O
Figure 1-1 Side I/O connections
S-Video: Y/C - In (Hosiden) (optional)
1 - Ground
2 - Ground
3 - Y
4 - C
Audio / Video In
Ye - Video (CVBS)
Wh - Audio - L
Rd - Audio - R
Bk - Headphone
Headphone - Out
Bk - Headphone
1.3.2 Rear Connections
75 Ohm MONITOR
OUT
VIDEO Y
L/Mono
Pb
AUDIO
Pr
R
COMPONENT VIDEO INPUT
Figure 1-2 Rear connections
Aerial In
- F-type
Monitor Out
Ye - Video (CVBS)
Wh - Audio - L
Rd - Audio - R
AV1 In
Gn - Y
Bu - Pb
Rd - Pr
AV1 In
Ye - Video (CVBS)
Wh - Audio - L
Rd - Audio - R
S-Video (optional)
Video
L
Audio
R
E_14480_111.eps
060504
Gnd
Gnd
1 V_pp / 75 ohm
0.3 V_pp / 75 ohm
1 V_pp / 75 ohm
0.5 V_rms / 10 kohm
0.5 V_rms / 10 kohm
8 - 600 Ohm / 4 mW
32 - 600 ohm / 10 mW
HD
Y
Pb
Pr
AV1 AV2
IN IN
V V
L L
R R
G_15880_029.eps
Coax, 75 ohm
1 V_pp / 75 ohm
0.5 V_rms / 1 kohm
0.5 V_rms / 1 kohm
0.7 V_pp / 75 ohm
0.7 V_pp / 75 ohm
0.7 V_pp / 75 ohm
1 V_pp / 75 ohm
0.5 V_rms / 10 kohm
0.5 V_rms / 10 kohm
H
H
j
j
jq
jq
jq
ot
ot
S-VIDEO
170306
D
kq
kq
kq
jq
jq
jq
jq
jq
jq
