D1130S - D1130D
INSTRUCTION & SAFETY MANUAL
SIL 2 Switch/Proximity Detector
Repeater Relay Output
DIN-Rail Models D1130S, D1130D
D1130 - SIL 2 Switch / Proximity Detector Repeater Relay Output
ISM0048-12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D1130S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GM International D1130S

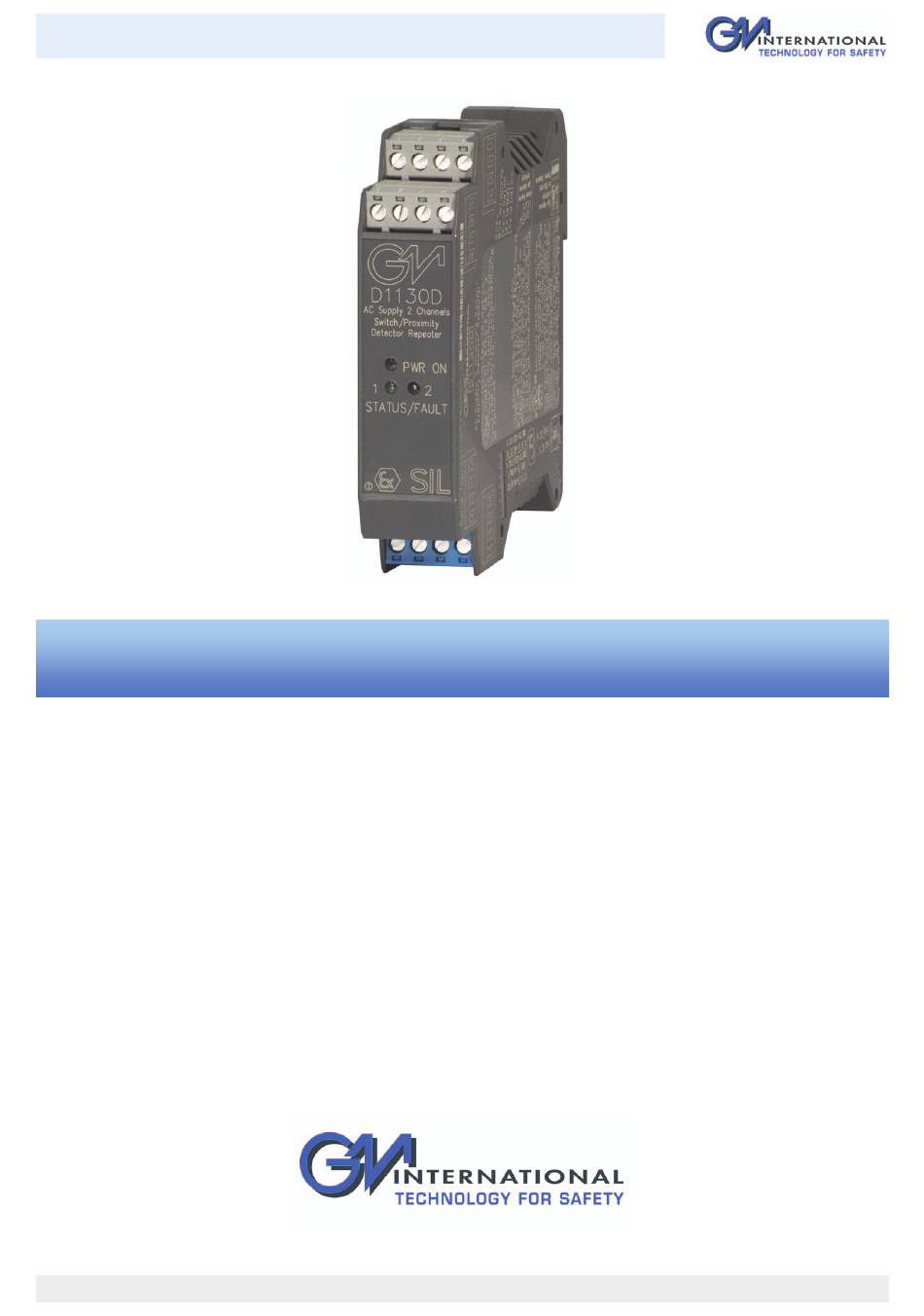

  • Page 1 D1130S - D1130D INSTRUCTION & SAFETY MANUAL SIL 2 Switch/Proximity Detector Repeater Relay Output DIN-Rail Models D1130S, D1130D D1130 - SIL 2 Switch / Proximity Detector Repeater Relay Output ISM0048-12...
  • Page 2 Current consumption @ 230 Vac: 15 mA with short input and relays energized. Max. power consumption: at 250 Vac supply voltage, short circuit input and relays energized, 2.0 W for 2 channels D1130D, 1.9 W for 1 channel D1130S. Isolation (Test Voltage): I.S. In/Out 2.5 KV; I.S. In/Supply 2.5 KV; Out/Supply 2.5 KV; Out/Out 2.5 KV.
  • Page 3: Ordering Information

    Ordering information DIN-Rail accessories: Model: D1130 DIN rail stopper MOR016 1 channel 2 channels Front Panel and Features  SIL 2 according to IEC 61511. Tproof = 2 / 10 years (≤10% / >10 % of total SIF) PFDavg (1 year) 3.60 E-04, SFF 71.28 % . ...
  • Page 4: Terminal Block Connections

    Output Ch 2 Common Output Ch 2 Relay Normally Opened (NO) Output Ch 2 Relay Normally Closed (NC) Output Ch 1 Relay Normally Closed (NC) D1130S HAZARDOUS AREA SAFE AREA + Input Ch 1 for Proximity or Output Ch 1-A Common...
  • Page 5: Parameters Table

    Parameters Table In the system safety analysis, always check the Hazardous Area/Hazardous Locations devices to conform with the related system documentation, if the device is Intrinsically Safe check its suitability for the Hazardous Area/Hazardous Locations and gas group encountered and that its maximum allowable voltage, current, power (Ui/Vmax, Ii/Imax, Pi/Pi) are not exceeded by the safety parameters (Uo/Voc, Io/Isc, Po/Po) of the D1130 series Associated Apparatus connected to it.
  • Page 6 Out 1 1 COM voltage free Proximity Contact 7 NC 6 NO In 2 Out 2 5 COM MODEL D1130S 4 N Supply 115-230 Vac voltage free Proximity Contact 8 NC 2 NO In 1 Out 1-A 1 COM 7 NC...
  • Page 7: Dip-Switch Position

    Functional Safety Manual and Application Application for D1130D ON operation OFF operation Supply Supply 115-230 Vac 115-230 Vac Out 1 relay is energized, Out 1 relay is de-energized, Field Input: proximity is ON Field Input: proximity is OFF 2-1 is closed, 8-1 is open 2-1 is open, 8-1 is closed or switch is closed or switch is open...
  • Page 8 (De-energized relay as safe state condition) Safety Function and Failure behavior: D1130S is considered to be operating in Low Demand mode, as a Type B module, having Hardware Fault Tolerance (HFT) = 0. The failure behavior is described from the following definitions : □...
  • Page 9 Testing procedure at T-proof The proof test shall be performed to reveal dangerous faults which are undetected by diagnostic. This means that it is necessary to specify how dangerous undetected fault, which have been noted during the FMEDA, can be revealed during proof test. Note for switch input: use of voltage free electrical contacts with fault detection enabled requires, near the switch at the end of the line, a 1 KΩ...
  • Page 10: Operation

    On the section “Function Diagram” and enclosure side a block diagram identifies all connections and configuration DIP switches. Identify the number of channels of the specific card (e.g. D1130S is a single channel model and D1130D is a dual channel model), the function and location of each connection terminal using the wiring diagram on the corresponding section, as an example: Connect AC power supply (85 to 250 Vac, 48 to 400 Hz) at terminal “3”...
  • Page 11 Configuration A configuration DIP switch is located on component side of pcb. This switch allows the configuration of input/output relationship, fault detection functions and operating mode. Line fault Disabled Setting detection (contact / proximity sensor) Enabled (proximity sensor or contact For SIL applications.
  • Page 12 Enabled (For SIL applications.) NO-ND or NC-NE (proximity sensor or contact with terminating line resistor, (For SIL applications.) detects field open circuit and short circuit de-energizing output) D1130S Configuration Summary Table IN/OUT Operation Line fault detection B Output Operation Mode...
