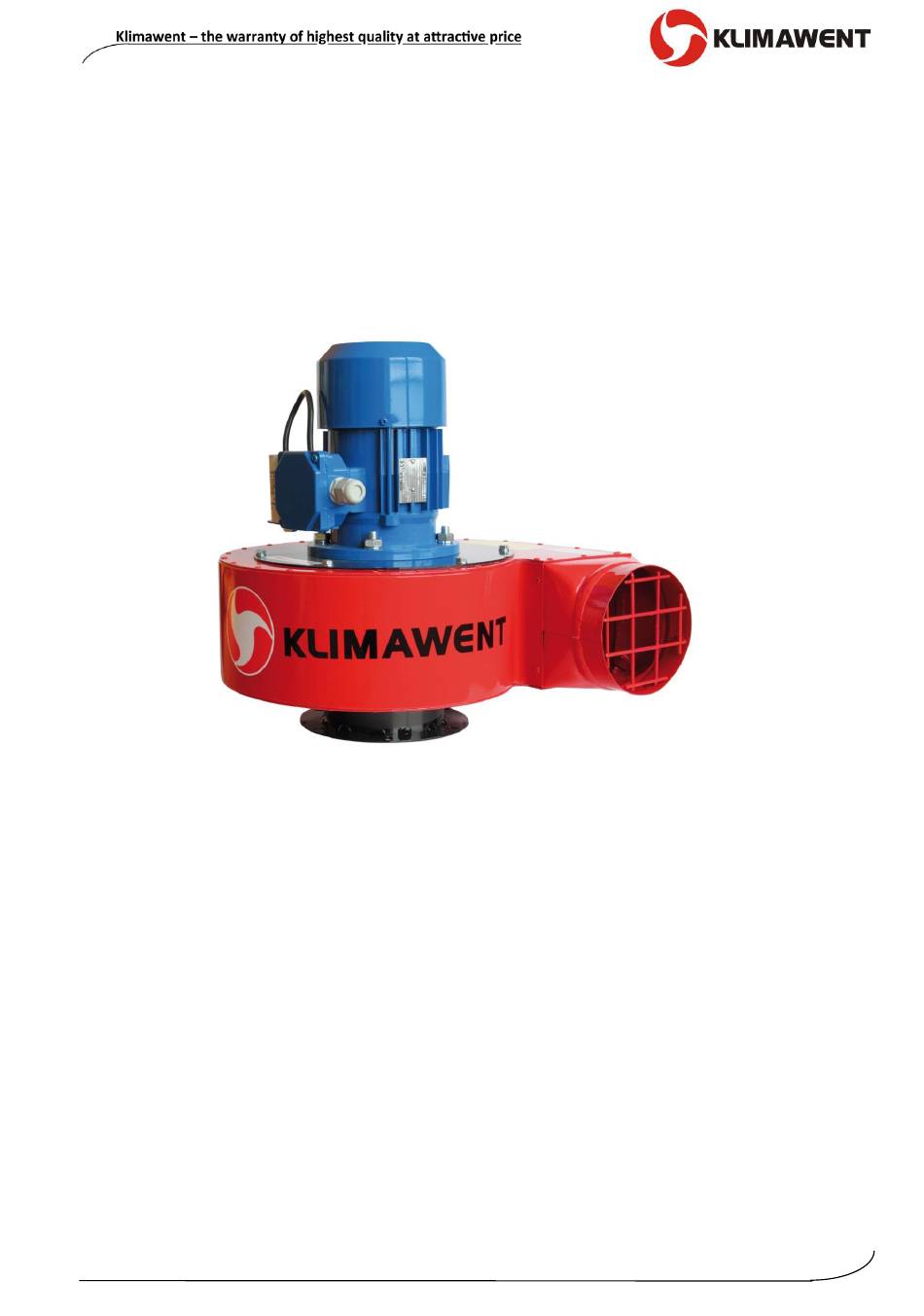

  • Page 1 Use and Maintenance Manual WPA-E-N Stand radial fans 04.06.2019 stand radial fans -E-N...

  • Page 2: Table Of Contents

    Contents: Introductory Remarks ................. 3 Application ..................3 Reservations of Producer ..............4 Technical Data ..................4 Structure and Function ............... 7 Assembly and Start-up ................ 8 Operational Use .................. 9 Troubleshooting Guide ................ 9 Maintenance and Control ..............9 Occupational Health and Safety ............

  • Page 3: Introductory Remarks

    1. Introductory Remarks The purpose of the present User’s Manual is to supply User with directions within the range of application, installation , start-up and the operational use of the WPA-E-N stand radial fans. Installing, start up and operational use are exclusively admissible after getting acquain- ted with the contents of the Use and Maintenance Manual.

  • Page 4: Reservations Of Producer

    3. Reservations of Producer A. Manufacturer accepts no liability for any consequences following from the operational use that is in contradiction to the purpose of application. B. It is unacceptable to install on the device structure any additional elements not belonging to its normal construction or accessory set.
  • Page 5 Fig. No.1 – Stand radial fans of series WPA-E-N – Structure and Dimensions Table No.2 – Dimensions Type [mm] [mm] [mm] [mm] [mm] [mm] [szt.] [mm] [mm] [mm] WPA-3-E-1-N WPA-3-E-3-N WPA-5-E-1-N WPA-5-E-3-N WPA-6-E-1-N WPA-6-E-3-N WPA-7-E-1-N WPA-7-E-3-N WPA-8-E-3-N WPA-9-E-3-N WPA-10-E-3-N WPA-11-E-3-N WPA-13-E-3-N 04.06.2019 stand radial fans...
  • Page 6 Fig. No.2 – Flow Charts 04.06.2019 stand radial fans -E-N...

  • Page 7: Structure And Function

    Information pertaining to energetic efficiency for fans – according to Regulation of Committee (EU) No. 327/2011 Table No.3 Product information WPA- WPA- WPA- WPA- WPA- WPA- WPA- WPA- WPA- WPA- WPA- WPA- WPA- requirements 10-3 11-3 13-3 1 Overall efficiency (%) 67,6 54,1 61,1 65,1 65,6 62,2 66,1 67,1 65,3...

  • Page 8: Assembly And Start-Up

    6. Assembly and Start-up The appliance has been developed for use in industrial rooms. Manufacturer suggests instal- ling the fan on a wall bracket (delivery on separate order). Prior to connection, make sure whether the parameters of the hitherto existing electri- cal installation are matching the values on the nominal plate.

  • Page 9: Operational Use

    7. Operational Use Construction of the device provides reliable function, directly after its start-up without conti- nuous technical supervision. If the place of operational use is changed – repeat the steps as mentioned in Section 6, according to the installing and adapting the ventilation system to the to the new conditions.

  • Page 10: Transport And Storage

    Any activities connected with energizing ought to be executed exclusive- ly by an authorized person with adequate qualifications and in accordance with the valid safety regulations. The motor ought to be protected from the short-circuit- and overload effects. During the opera- tional use, check the connection between the fan and the PE protective cable.

  • Page 11: Sample Of Declaration Of Conformity

    Declaration of Conformity EC No. …………….. Manufacturer (eventually the authorized representative / importer): name: KLIMAWENT S.A. address: 81-571 Gdynia, ul. Chwaszczyńska 194 A person, authorized for issuing the technical documentation: Teodor Świrbutowicz, KLIMAWENT S.A. hereby declares that the appliance: name: stand radial fan...
  • Page 12 Producer: KLIMAWENT S.A. 81-571 Gdynia, ul. Chwaszczyńska 194 tel. 058 629 64 80 fax 058 629 64 19 e-mail: klimawent@klimawent.com.pl www.klimawent.com.pl 804W00 WPA-3-E-1-N 04.06.2019/EN 804W14 WPA-3-E-3-N 04.06.2019/EN 804W01 WPA-5-E-1-N 04.06.2019/EN 804W02 WPA-5-E-3-N 04.06.2019/EN 804W03 WPA-6-E-1-N 04.06.2019/EN 804W04 WPA-6-E-3-N 04.06.2019/EN 804W05 WPA-7-E-3-N 04.06.2019/EN...
