Frigidaire Gallery GLTF1240A Factory Parts Catalog
  1. Manuals
  2. Brands
  3. Frigidaire Manuals
  4. Washer
  5. Gallery GLTF1240A
  6. Factory parts catalog

Frigidaire Gallery GLTF1240A Factory Parts Catalog

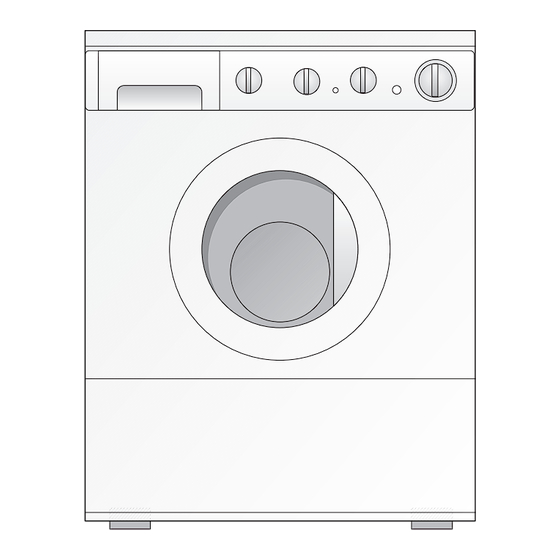

Frontload washer
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
PRODUCT NO.
BASE MODEL NO.
GLTF1240AS0
GLTF1240A
WIRING DIAGRAM - # 134069100
OWNER'S GUIDE - # 134031900
OPERATING INSTRUCTIONS - # 134071500
FACTORY PARTS CATALOG
FRONTLOAD WASHER
COLOR
White
Publication No.
5995358321
010830
ENG/SERVICE/JAM
361
FRONTLOAD WASHER
Model No.
GLTF1240A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gallery GLTF1240A and is the answer not in the manual?

Questions and answers

Related Manuals for Frigidaire Gallery GLTF1240A

Summary of Contents for Frigidaire Gallery GLTF1240A

  • Page 1 PRODUCT NO. BASE MODEL NO. GLTF1240AS0 GLTF1240A WIRING DIAGRAM - # 134069100 OWNER’S GUIDE - # 134031900 OPERATING INSTRUCTIONS - # 134071500 FACTORY PARTS CATALOG FRONTLOAD WASHER COLOR White FRONTLOAD WASHER Publication No. 5995358321 010830 ENG/SERVICE/JAM Model No. GLTF1240A...

  • Page 2: Control Panel

    Publication No. GLTF1240AS0 5995358321 CONTROL PANEL 08/2001...
  • Page 3 Screw-brkt top, pan hd locking, 8-32CA x 0.375, cr/sq drive 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive 131823400 Scr 8-18 x 2.000 131887284 Asmy-cons frame/trim GLTF1240A 134042700 Knob-rot-TAW-wht 134042400 Knob-timer-TAW white 131853900 Pointer-timer wht/drk gray ind 131786100 Hose-dispenser...
  • Page 4 Publication No. GLTF1240AS0 5995358321 CABINET,DOOR &TOP 08/2001...
  • Page 5 POS. NO 33 # 45 # # = Functional Part * = Non-Illustrated Part GLTF1240AS0 CABINET,DOOR &TOP PART NO DESCRIPTION 131279602 Asmy-Inlet Hose Cold 131168200 Screw, 8-18 x 0.31 131279603 Asmy-Inlet Hose-Hot 131770700 Speed cont-Mallory/Sole motor 131205300 Screw, 10-16 x .75 131763200 Door lock/switch USCC 131303300...
  • Page 6 Publication No. GLTF1240AS0 5995358321 TUB & MOTOR 08/2001...
  • Page 7 Screw-motor, hwhd ab, 12-14 x 1.50 131275900 Seal-shell 131462800 Shell-rear/bearing 131709300 Weight-upper back 134051000 Belt-6 rib 131883400 Pulley-drum-reinforced 131304400 Washer .41 x 1.500 x .120 131304500 Washer-lock, 3/8 131303700 Screw-pulley, m10 x .92 131268200 Level-shock 131268300 Pin-level 131268100 Bracket-shock 131303100 Screw, hwhd ab, 10-16 x .625...

  • Page 8: Wiring Diagram

    Publication No. GLTF1240AS0 5995358321 WIRING DIAGRAM 08/2001...
