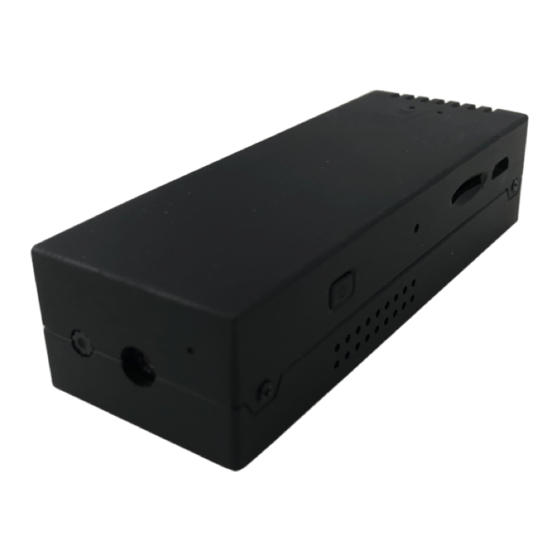

6266 - ZMax 86 MicroStick Cam
How to Charge the Battery:
● Connect the recorder to a PC or USB power supply with the provided USB to USB cable
● Takes 6-8 hours to fully charge
● Orange LED light = Charging but not recording
● Green LED light = Fully Charged but not recording
● A blinking Orange LED light = Charging and recording
● A blinking Green LED light = Charging complete and recording
● Red LED light = no card, card fail or card full
Advertisement
Table of Contents
Related Manuals for Spycentre Security ZMax 86 MicroStick
Summary of Contents for Spycentre Security ZMax 86 MicroStick
- Page 1 SpyCentre Security® Since 1993 1-800-292-77488 6266 - ZMax 86 MicroStick Cam How to Charge the Battery: ● Connect the recorder to a PC or USB power supply with the provided USB to USB cable ● Takes 6-8 hours to fully charge ●...
- Page 2 NOTE: Ensure the unit is fully charged (about 6-8 hours) and plug-in an SD card (up to 256GB). HOW TO FORMAT HIGH CAPACITY SD CARDS (64-256GB): 1. Insert an SD card and plug the device in for power, but do not turn it on. The orange charge light will come on.
- Page 3 MOTION RECORDING MODE: This setting is made available through the Camera Widget for Z82/Z86 desktop application, which works with both Windows and Mac computers: http://zetta.com.hk/index.php/supports/downloads. 1. Download the Camera Widget and open the program. 2. Connect the device to the computer. 3.
- Page 4 How to Playback files on a MAC: 1. Either connect the device to a computer with the included USB cable or remove the Micro SD card from the device and connect it to the computer with an SD card reader. 2.
- Page 5 How to Playback files on an Android Smartphone or Tablet: 1. An OTG Cable is required for this process. 2. Go to your “Device Storage” and look for the “External Memory.” Inside will be all of your files that you can click on to review.
- Page 6 VLC Media Player (Recommended for optimal usage) How to download and use VLC media (Windows) 1. www.videolan.org 2. Click the blue “download VLC.” 3. It will open a new window and begin downloading. 4. If it does not automatically begin downloading, press “Click here” and select one of the mirrored sites. 5.
- Page 7 NOTE: if a folder does not open when connected to PC, disconnect the device and perform the following: 1. Open Control Panel by typing “control panel” in the “Search” bar. 2. Select “Programs.” 3. Under “Default Programs,” click “Change default settings for media or devices.” 4.
