Summary of Contents for MUSTOOL FS8330Pro

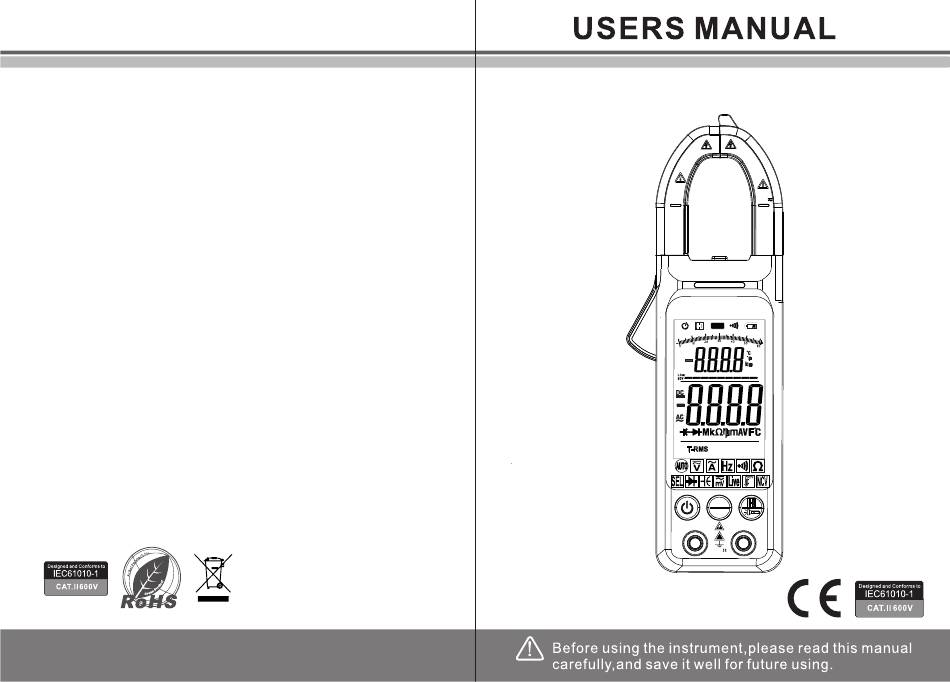

- Page 1 Intelligent digital clamp multimeter CAT II 600V 400A CATIII 300V AUTO 6000Counts INPUT ！ MAX 600V...
-
Page 2: Table Of Contents
Overview Technical indexes 3.2.1 AC current 3.2.2 DC current(Optional features) 3.2.3 DC voltage 3.2.4 AC voltage 3.2.5 Line on-off test 3.2.6 Resistance 3.2.7 DIODE 3.2.8 Capacitor 3.2.9 Temperature 3.2.10 Frequency... - Page 3 1. Safety Information Warning Pay special attention to use of this instrument, for improper use may cause electric shock or damage to instrument. During use, observe usual safety regulations and observe safety measures regulated in use manual. In order to make full use of instrument functions and guarantee safe operation, please carefully read and observe use methods in this manual.
- Page 4 1.2 Symbol Note (refer to use manual for important safety information) Able to be used on dangerous electrified conductors. Dual-insulation protection (Category II) CAT III Over-voltage according to IEC-61010-1 standard (installation), level III, pollution degree 2 refers to protection level of pulse withstand voltage provided.

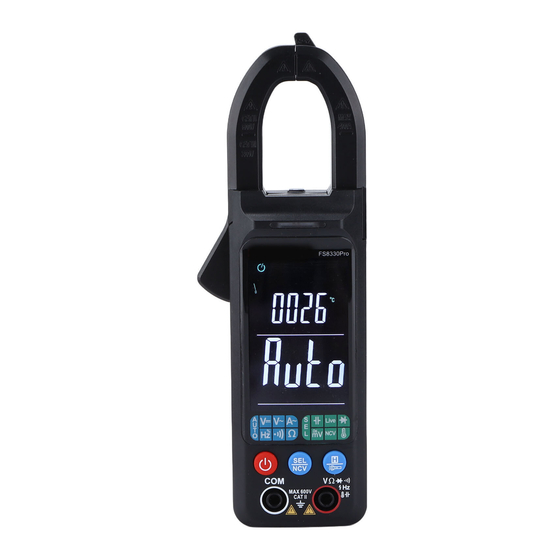

- Page 5 2. Description 2.1 Part name CAT II 600V 400A CATIII 300V AUTO 6000Counts INPUT ！ MAX 600V Data hold and flashlight button SEL and NCV buttons LCD display Input socket On/off key Caution light Current measuring clamp Contactless induction zone Eletric torch...
- Page 6 AUTO LCD display 6000Counts AC & DC Connection/Disconnection indication Automatic range mode Automatic shutdown indication Low battery Reading hold state Volt (voltage), ampere (current) Ohm kilohm and megohm (resistance) hertz DIODE icrofarad Centigrade and Fahrenheit Non-contact measuring voltage Live line voltage identification...
-
Page 7: Overview
3. Specification The instrument specifies one year as a cycle, and shall be re-calibrated under 18℃ ～ 28℃, with relative humidity less than 75%. 3.1 Overview ● Select measurement function and range automatically. ● Overload protection throughout the range. Max. voltage between measurement terminal and ●... -
Page 8: Technical Indexes
3.2 Technical indexes 3.2.1 AC current Range Resolution Accuracy 0.01A ± (2.5% reading + 8 digits) 0.1A - Min. input current: 0.2A AC current. - Max. input current: 400A AC current. - Frequency range: 4 ～ 1000 Hz; (Optional features) 3.2.2 DC current Range Resolution... -
Page 9: Ac Voltage
3.2.4 AC voltage AC voltage Range Resolution Accuracy 600V 0.1V ±( 0.8% reading + 5 digits) - Min. input voltage: 0.5 V AC - Max. input voltage: 600V AC (valid value) - Frequency range: 45 ~ 1000Hz AC voltage Range Resolution Accuracy ±( 0.8% reading + 5 digits) -
Page 10: Diode
- Overload protection: 250V DC or AC (valid value) 3.2.7 DIODE 3.2.8 Capacitor Range Resolution Accuracy ±( 10% reading+40 digits) 60.00nF 0.01nF 600.0nF 0.1nF 6.000uF 60.00uF 10nF ±( 2.5%reading+20 digits) 600.0uF 100nF 6.000mF 1μF 60.00mF 10μF - Overload protection: 250V DC or AC (valid value) 3.2.9 Temperature Range Resolution... -
Page 11: Frequency
Frequency Range Resolution Accuracy % reading + 5 digits ) ±( - Measurement range: 40Hz ~ 1000Hz - Input signal range: ≥ 1/4 Full- scale Value Via gear V: Range Resolution Accuracy % reading + 5 digits ) ±( - Measurement range: 40Hz ~ 1000Hz - Input signal range: ≥... - Page 12 4. Operation guide 4.1 Reading hold During measurement, if it is required to hold reading, touch button, value on display will be locked, touch button again, to cancel reading hold. 4.2 Torch Long press the flashlight button for 2 seconds, turn on the flashlight, and turn it off after about 1 minute.
- Page 13 Even if there is no alarm indication, the voltage may still be present. Do not rely on the non-contact voltage to determine whether a wire has a voltage. Probe operation may be influenced by socket design, type of insulation thickness, etc. In NCV detection mode, the meter does not measure voltage, resistance, and current simultaneously.
- Page 14 electric current measurement Ac current and AC current frequency measurement Press the clamp, open the clamp mouth and clamp one of the wires under test. When the measured signal is greater than 0.2a, the meter display displays the current value and frequency value of the measured conductor.
- Page 15 Connect the test pen to the signal being tested. When the measured DC signal is greater than 0.5V, the display voltage value. When the measured DC signal is <0.5V, the instrument uses the default resistance value and displays the resistance value of the measured signal.
- Page 16 Ac voltage measurement Press SEL to enable the mV function. Instrument display mV Connect the meter and meter pen to the signal under test. When the measured signal is less than 600mV, the meter displays the measured current dc voltage value. When the measurement signal is >...
- Page 18 5. Maintenance 5.1 Change battery Warning Before opening battery cover instrument, remove the pens from the circuit being measured, to avoid electric shock. 1) If symbol " " appears, it indicates to change the battery. 2) Unfasten bolts on battery cover of instrument and remove the cover.
