FAIR Henley Stoves BIO 80 Maintenance And User Manual

Hide thumbs Also See for Henley Stoves BIO 80:

Advertisement

Table of Contents

Maintenance and User Manual
Pellet Stove
BIO 80Q
BIO 80
IMPORTANT!
This Appliance must be fitted by a HETAS / METAC Qualified Installer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Henley Stoves BIO 80 and is the answer not in the manual?

Questions and answers

Aiden
February 17, 2025

What steps are needed to replace the ignitor

0

Related Manuals for FAIR Henley Stoves BIO 80

Summary of Contents for FAIR Henley Stoves BIO 80

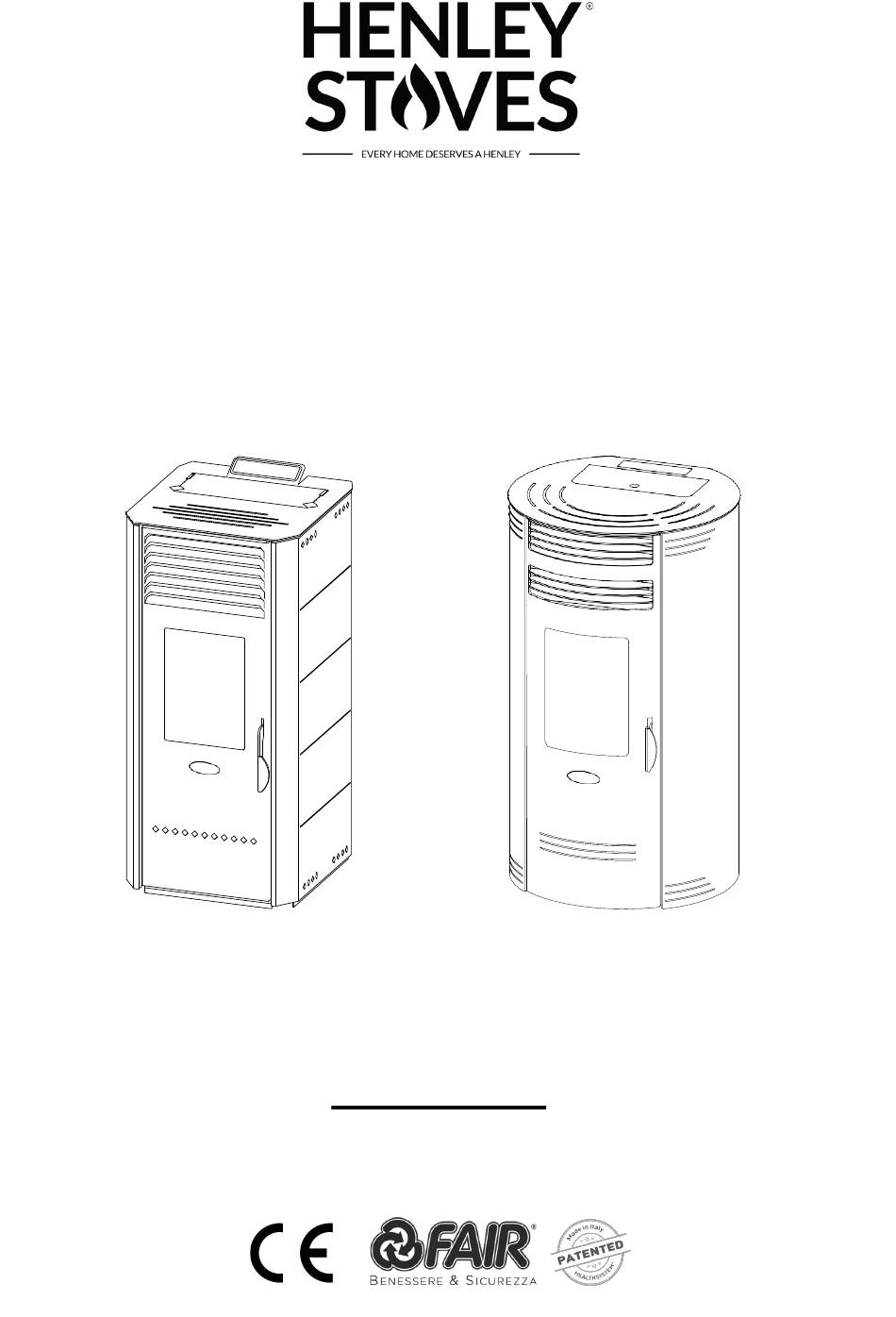

  • Page 1 Maintenance and User Manual Pellet Stove BIO 80Q BIO 80 IMPORTANT! This Appliance must be fitted by a HETAS / METAC Qualified Installer...
  • Page 2 BIO Pellet Stoves a unique pellet stove! Main features: High efficiency Automatic temperature control With the use of an advanced electronics The internal thermostat senses the temperature environment and maintains it and an excellent heat exchange system, constant according to the settings inserted an high efficiency is reached Intelligent heating Control display...

  • Page 3: Table Of Contents

    Installation should be carried out by a HETAS / METAC Qualified Installer, who will take complete responsibility for final installation and for consequent correct operation of the installed product. Fair will not be liable in the event of failure to respect these instructions.

  • Page 4: Warning For The User

    BIO Pellet Stoves • WARNING FOR THE USER You shall do this for a proper functioning of the stove 1. Use certified quality pellet; 2. Before any ignition or ignition failure you shall clean the grate, so remove it, vacuum the space below and then place it in its proper housing;...
  • Page 5 BIO Pellet Stoves If your stove emits a small quantity of smoke in starting phase because of this DO NOT turn off your stove (the stove will extract the smoke given time – turning off the stove while there is smoke will cause further smoke to build and not be extracted.) How to register my new stoves warranty : Henley Stoves does not accept warranty submissions through post/email...

  • Page 6: Chimney Flue

    BIO Pellet Stoves • CHIMNEY FLUE Please refer to the current issues of British Standards BS EN 15287-1:2007 - design,installation and commissioning of chimneys before commencing installation The chimney draw is critical on any installation and should be checked to ensure that it matches what is specified. If the draw is higher than recommended, we advise that provision must be made to correct the overdraw.
  • Page 7 BIO Pellet Stoves If the chimney is believed to have previously served an open fire it must be swept a second time within a month of regular use after installation to clear any soot falls that may have occurred due to difference in combustion levels.
  • Page 8 BIO Pellet Stoves Height Over Adjacent Building The Outlet of a chimney or flue in relation to an adjacent building should be as seen above Height Over Roof Outlet of a chimney or a flue to be not less that 1m above the highest point of contact of chimney and roof. Where the roof has a pitch of more than 10º...
  • Page 9 BIO Pellet Stoves External air intake We recommend to set an air intake from the outside to have a healthy inner environment. The air flow between the outside and the room can be vented directly from a duct on the external wall of the room (best solution, see picture 5-A) or indirectly from adjacent rooms (see picture 5-B) as long as these rooms are not bedrooms, garages, store rooms, rooms that present the risk of fire or with an opposite draft due to a suction system without air intake.
  • Page 10 BIO Pellet Stoves Pic. 7 The air intake must be at a distance of: Doors, windows, fume exhaust, air 1.5 m Below spaces etc. Doors, windows, fume exhaust, air 1.5 m Level with spaces etc. Doors, windows, fume exhaust, air 0.3 m Above spaces etc.

  • Page 11: Fuel

    BIO Pellet Stoves Examples of correct installation 1. Installation with hole on the roof for the passage of the pipe using an adequate mineral insulator (rock wool, ceramic fibre with a density bigger than 80 kg/m ). The hole diameter varies from 300 mm, if the hole is in contact with flammable materials (wood etc.), to 200 mm if in contact with non- flammable materials (cement, bricks, etc.).

  • Page 12: Installation

    BIO Pellet Stoves • INSTALLATION Introduction The stove position must be chosen in accordance with the environment, the waste pipe and the chimney flue. Verify with the local authority if there are restrictive rules about the air intake for combustion purposes and ventilation of domestic environment and about the waste fumes pipes plant with chimney flue and chimney pot.

  • Page 13: Use

    BIO Pellet Stoves To use this option, after installing the remote thermostat, set the ambient temperature below the minimum value of 6°C with the (P2) button on the display. When "t-E" appears in the display, the function will be active: from this time the room temperature must be set by the external thermostat. Ventilation The air vented by the motoventilators keeps the stove temperature low preventing the materials the stove is made of from excessive stress and heating the domestic environment more homogeneously.
  • Page 14 BIO Pellet Stoves Pic. 11 Control panel Key (P1+) and (P2-): they increase or decrease the thermostat parameter from minimum 06°C to maximum 40°C. If you keep (P1) pressed you can see the waste fumes temperature displayed. They both have programming function. Key (P3): to go to menu of parameters of the user and technician.
  • Page 15 BIO Pellet Stoves Non-starting If pellets don’t light up, the non-starting will be indicated by an alarm “Al 5 alar al 5 No lightning”. The stove starting takes about 7/10 minutes with good quality pellets and an environment temperature of about 10°C.
  • Page 16 BIO Pellet Stoves The Timer setting menu is divided into 4 menus: M-2-1 TIMER PROGRAMMING ON/OFF; DAILY PROGRAM; M-2-2 WEEKLY PROGRAM; M-2-3 WEEK-END PROGRAM. M-2-4 Timer programming ON/OFF M-2-1 Activate (ON) / Deactivate (OFF) the time programming of the stove. You will need to follow this step and activate to move forward.
  • Page 17 BIO Pellet Stoves The situation could be the following: Start Stop Mon. Tue. Wed. Thur. Fri. Sat. Sun. Progr. 1 h 07:00 h 09:00 Now you can follow the same procedure above for the second, third and fourth programme and •...
  • Page 18 BIO Pellet Stoves Menu 04 Stand-by The stove includes the possibility to enter in the stand-by function. To enable the stand-by function access the M4 and with the buttons (P1) and (P2) select the value between ON/OFF and confirm with set (P3).
  • Page 19 BIO Pellet Stoves Optional remote control With the remote control it is possible to adjust the heating power, the desired ambient temperature and switch the apparatus on/off automatically. To switch on the stove press buttons (P1) and (P6) simultaneously for 3 seconds; the apparatus will automatically enter the ignition stage.

  • Page 20: Safety Devices

    BIO Pellet Stoves • SAFETY DEVICES Introduction Safety devices are useful to prevent and avoid risks of damages to people, pets or property. You should avoid to tamper with them or cal non-authorised staff to have them repair, making the guarantee not valid and the manufacturer not responsible for them.

  • Page 21: Maintenance

    BIO Pellet Stoves Alarm 7 - Tank safety There is a manual winding thermostat near the tank, which controls if the temperature exceeds the allowed limits preventing in this way the pellets from catching fire because of the over-heating. “Al 7 alar al 7 Safety Thermal”...
  • Page 22 BIO Pellet Stoves Fumes chamber cleaning Every two weeks it is recommended to clean the fumes chamber. Open the door only when the stove is off. Clean it sucking the ash left inside. After cleaning repeat the opposite operation to make sure of the good conditions and efficiency of the strip and when necessary replace it.

  • Page 23: Technical Data & Measures: Bio 80

    BIO Pellet Stoves • TECHNICAL DATA & MEASURES: BIO 80 Characteristics Description BIO 80 Width 42,5 cm Depth 43,5 cm Height 89,5 cm Weight 70 kg Efficiency class Global thermal power 7,6 kW Nominal thermal power 3-6,7 kW Hour consumption 0,6-1,5 kg/h Efficiency 88-91,5 %...

  • Page 24: Technical Data & Measures: Bio 80Q

    BIO Pellet Stoves • TECHNICAL DATA & MEASURES: BIO 80Q Characteristics Description BIO 80Q Width 51 cm Depth 48 cm Height 90 cm Weight 75 kg Efficiency class Global thermal power 7,7 kW Nominal thermal power 3-6,7 kW Hour consumption 0,6-1,5 kg/h Efficiency 88-91,5 %...
  • Page 25 BIO Pellet Stoves Wiring diagram N100 For the correct operation of the stove respect the polarity of the thermo couple.

  • Page 26: If There Is A Problem

    BIO Pellet Stoves • IF THERE IS A PROBLEM Problem Cause Solution The control panel doesn’t • The stove hasn’t got electrical input • Verify if the plug is connected. start • Card protection fuse is burned • Replace the fuse. Call a specialised technician.
  • Page 27 BIO Pellet Stoves The stove switches off. • Fumes feeler is faulty • Replace the feeler. Call a specialised Alarm displayed: “Al 2 alar technician. • Electronic card faulty al 2 Probe Exhaust” • Replace the card. Call a specialised •...
  • Page 28 BIO Pellet Stoves The stove switches off. • The door isn’t closed • Closed the door properly and check Alarm displayed: “Al 8 alar the door strips are in good conditions al 8 Failure Depress” otherwise replace them. • The waste outlet is obstructed •...

  • Page 29: Guarantee

    The same applies in the event that the staff of the Technical Service Centre or of Fair srl discover while doing repairs that the date of installation/first startup is not the true one (which can be detected from identifying details and other elements in the equipment).
  • Page 30 BIO Pellet Stoves Technical Services–Original spare parts Before leaving the factory, this apparatus has been tested and commissioned by expert, specialised staff, in order to achieve the best possible results in operation. Any repairs or commissioning that may become necessary must be carried out with the greatest care and attention;...
  • Page 31 BIO Pellet Stoves Specialised Technical Servicing Centre Work done on: Material used: Guarantee         User’s signature Segnature of TSC Specialised Technical Servicing Centre Work done on: Material used: Guarantee     ...
  • Page 32 BIO Pellet Stoves Specialised Technical Servicing Centre Work done on: Material used: Guarantee         User’s signature Segnature of TSC Specialised Technical Servicing Centre Work done on: Material used: Guarantee     ...
  • Page 33 BIO Pellet Stoves...
  • Page 34 BIO Pellet Stoves Copyright © Fair – Rev.6 – 14/02/2019 EN FAIR srl - Via Lago di Costanza, 24 Z.I. - 36015 Schio (Vicenza) – Italia Tel: +39 0445 698000 - Fax: +39 0445 698100 - www.fair-europe.com – info@fair-europe.com...

This manual is also suitable for:

Henley stoves bio 80qHenley stoves sbiob8g whiteHenley stoves sbion8g blackHenley stoves sbior8g bordeauxHenley stoves sbion8q blackHenley stoves sbior8q bordeaux red ... Show all
