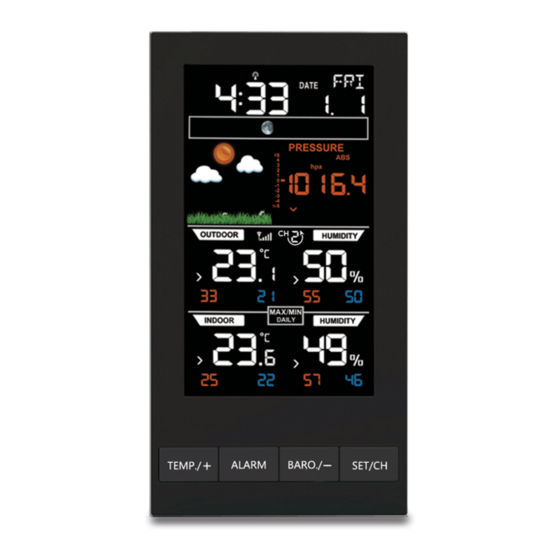

Fine offset WH2810 User Manual

Color screen multi-channel weather station
Hide thumbs

Advertisement

Quick Links

Download this manual

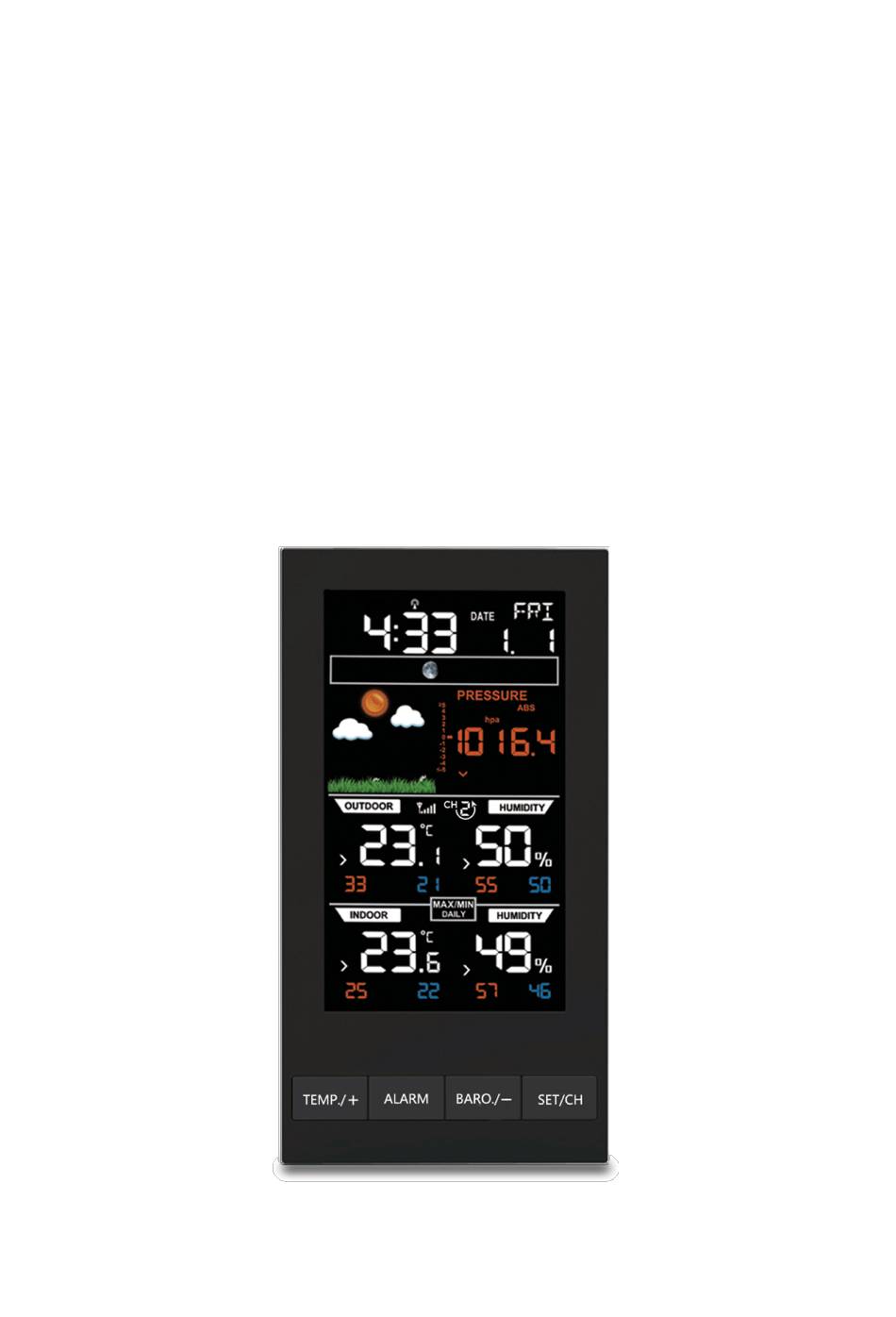

Color Screen Multi-channel Weather Station User Manual
1. Introduction
Thank you for purchasing the color screen weather station with temperature,
humidity, barometric, moon phase and advanced forecasting. This device
can receive signals up to 3 sensors. All the sensors measure temperature
and humidity then transmit to the console and displayed on Outdoor
segment.
The following use guide provides step by step instructions for installation,
operation and troubleshooting.
2. Product Features:
Figure 1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WH2810 and is the answer not in the manual?

Questions and answers

Related Manuals for Fine offset WH2810

Summary of Contents for Fine offset WH2810

  • Page 1 Color Screen Multi-channel Weather Station User Manual 1. Introduction Thank you for purchasing the color screen weather station with temperature, humidity, barometric, moon phase and advanced forecasting. This device can receive signals up to 3 sensors. All the sensors measure temperature and humidity then transmit to the console and displayed on Outdoor segment.

  • Page 2: Getting Started

    Color Screen Multi-channel Weather Station User Manual 1) Wireless outdoor temperature (°F or °C) and humidity (%RH) 2) Indoor temperature (°F or °C) and humidity (%RH) 3) Support 3 outdoor sensors measures temperature and humidity in different spots. 4) Records min. and max. Temperature and humidity 5) Barometric pressure (inHg, mmHg or hPa) 6) Weather forecast 7) Time and date by manual setting or DCF Radio controlled time and date.
  • Page 3 Color Screen Multi-channel Weather Station User Manual Console LIGHT/SNOOZE Key Hanging hole Power jack Folding bracket Figure 2 Remote sensor Figure 3...
  • Page 4 Color Screen Multi-channel Weather Station User Manual 3.2 Thermo-Hygrometer Sensor Set Up Note: To avoid operating problems, please take note of battery polarity before/when inserting any Alkaline Batteries (permanent damaged could be introduced by inserting the battery in wrong direction). Do not use rechargeable batteries.
  • Page 5 Color Screen Multi-channel Weather Station User Manual Channel Number: the weather station support up to three sensors. To set each channel number, slide the button to according number. Temperature unit of Measure: To change the sensor display units of measure (°For °C),Press the round button C/F. Insert two AA batteries Wait for seconds until temperature and humidity displayed on the LCD screen of sensors.
  • Page 6 Color Screen Multi-channel Weather Station User Manual Verify the temperature sensors match closely with all of the sensors in the same location (about 2 to 3m apart). The sensors should be within 2°C (the accuracy is ± 1°C). Allow about 30 minutes for all sensors to stabilize. The temperature can be adjusted or calibrated later to match each other or a known source.
  • Page 7 Color Screen Multi-channel Weather Station User Manual Figure 6 Figure 7 3.6 Display Console Set Up Place the remote thermo-hygrometer about 5 to 10 meters away from the display console (if the sensor is too close, it may not be received by the display console).
  • Page 8 Color Screen Multi-channel Weather Station User Manual Replace the battery door, and fold out the desk stand and place the console in the upright position. Note: The batteries are intended for back-up power only. The backlight will remain on for 5 seconds when on back up battery power only. Only when you use power adapter it will the back-light be continuously on.

  • Page 9: Console Operation

    Color Screen Multi-channel Weather Station User Manual 1. Time 12. Max outdoor temperature 2. Moon phase 13. Min outdoor temperature 3. Weather forecast icon 14. Outdoor humidity 4. Radio controlled clock 15. Min Outdoor humidity 5. Week day 16. Max outdoor humidity 6.
  • Page 10 Color Screen Multi-channel Weather Station User Manual Command Mode Settings SET/CH + 2 Enter Set Mode, Beep Press TEMP./+ or BARO./- to seconds toggle OFF and ON SET/CH Press TEMP./+ or BARO./- to RST-reset max/min at 0:00 toggle OFF and ON SET/CH Press TEMP./+ to increase.
  • Page 11 Color Screen Multi-channel Weather Station User Manual 4.1.2 Set Mode Operation While in Normal Mode, press and hold SET/CH key 2 seconds enter setting mode. The first setting will begin flashing. You can press the SET/CH key again to skip any step, as defined below. Beep on/off.
  • Page 12 Color Screen Multi-channel Weather Station User Manual Press the TEMP./+ key or BARO./- key to adjust the calendar year. Change Month. Press the SET/CH key again to set the calendar month. Press the TEMP./+ key or BARO./- key to adjust the calendar month.
  • Page 13 Color Screen Multi-channel Weather Station User Manual 4.3 Check Barometric Pressure 4.3.1 Barometric Pressure History While in normal mode, press BARO./- to check the barometric pressure. Press the BARO./- button to switch to past 12hr/24hr/48hr/72hr average pressure. To exit the barometric pressure history mode, press the SNOOZE/LIGHT key (on the top of the display console), or wait 30 seconds for the timeout to take effect.
  • Page 14 Color Screen Multi-channel Weather Station User Manual of 1000 feet (305 m), but the relative pressure is 30.00 inHg (1016 mb). The standard sea-level pressure is 29.92 in Hg (1013 mb). This is the average sea-level pressure around the world. Relative pressure measurements greater than 29.92 inHg (1013 mb) are considered high pressure and relative pressure measurements less than 29.92 inHg are...
  • Page 15 Color Screen Multi-channel Weather Station User Manual 3. Press SET/CH to confirm the minute and skip to Alarm on/off setting. Press TEMP./+ and BARO/- button to switch on/off the time ALARM. 4. Press SET/CH to skip to Ice ALARM on/off setting. Press TEMP./+ and BARO/- button to switch on/off the low temperature ALARM(Refer to 4.5.2).
  • Page 16 Color Screen Multi-channel Weather Station User Manual appear in the upper right hand corner of the display). The calibration sequence would be as below: CH1 Outdoor temperature calibration. CH1 Outdoor humidity calibration. CH2 Outdoor temperature calibration. CH2 Outdoor humidity calibration. CH3 Outdoor temperature calibration.
  • Page 17 Color Screen Multi-channel Weather Station User Manual Normally, you would not calibrate the absolute pressure because it is difficult to obtain a calibrated source. The preferred method is to calculate relative pressure to an official source near you, as described in Section 4.3.2.
  • Page 18 Color Screen Multi-channel Weather Station User Manual 4.8 Other Console Features 4.8.1 Color Weather Forecasting This station learns. Please allow 30 days for barometric calibration. This will ensure an accurate personal forecast for your location. Six color forecast icons use changing atmospheric pressure to predict weather conditions for the next 12-hours .
  • Page 19 Color Screen Multi-channel Weather Station User Manual Note: Snowy icon will appear in place of rainy and stormy icons when the outdoor temperature is below 0 °C /32°F. 4.8.2 Moon phase The following moon phases are displayed based on the calendar date. Waxing First Waxing...
  • Page 20 Color Screen Multi-channel Weather Station User Manual Pressure is rising, weather Pressure is unchanged Pressure is falling, expected to improve weather expected to worsen 4.8.5 Restoring Lost Outdoor Temperature and Humidity Sensor If the signal is lost between the remote sensor (or transmitter) and the display console (or the receiver), to resynchronize, while in normal mode, Press and hold SET/CH and TEMP button for 5 seconds, to register the outdoor transmitter.

  • Page 21: Glossary Of Terms

    Color Screen Multi-channel Weather Station User Manual 5. Glossary of Terms Term Definition Absolute Relative barometric pressure, corrected to sea-level. Barometric To compare pressure conditions from one location to Pressure another, meteorologists correct pressure to sea-level conditions. Because the air pressure decreases as you rise in altitude, the sea-level corrected pressure (the pressure your location would be at if located at sea-level) is generally higher than your measured...
  • Page 22 Color Screen Multi-channel Weather Station User Manual 6.2 Measurement Specifications The following table provides specifications for the measured parameters. Measurement Range Accuracy Resolution Indoor Temperature -9.9-60C ± 1 °C 0.1 °C Outdoor Temperature -40 to 60C ± 1 °C 0.1 °C Indoor Humidity 1 0 to 99 % ±...
