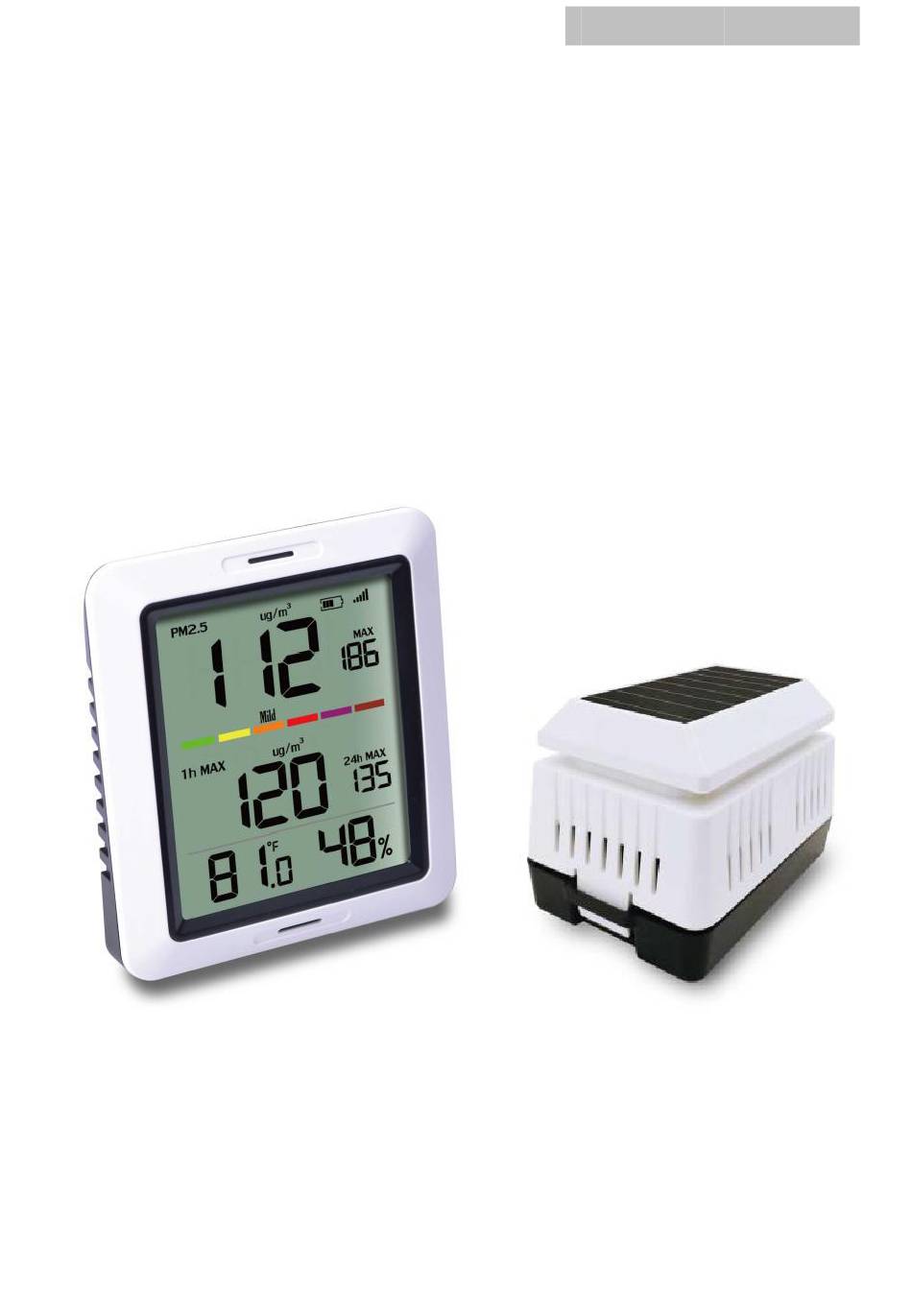

  • Page 1 Instruction Manual Air Quality n or Model: WH...
  • Page 2: Table Of Contents

    Instruction Manual Contents 1. Introduction............2 2. Get Started............2 2.1 Parts List............2 2.2 Air Quality Sensor Set Up......3 2.3 Display Console Set Up......4 2.3.1 Display Console Layout......7 3. Wireless Sensor Installation......8 4. Console Operation..........9 4.1 °C/°F............9 4.2 MAX............9 5. Sensor Resynchronization.........9 6.
  • Page 3: Introduction

     Rechargeable batteries Ensure batteries are installed correctly with  regard to polarity +/- 2.1 Parts List One Air Quality Monitor (Receiver) One Air Quality Sensor(Wireless PM2.5 Sensor) One USB Cable One User Manual LSD( self discharge) Ni-MH Rechargeable Batteries...
  • Page 4: Air Quality Sensor Set Up

    Instruction Manual 2.2 Air Quality Sensor Set Up 1. Remove the battery door on the base of the air quality sensor as shown in Figure 1 Figure 1...
  • Page 5: Display Console Set Up

    Instruction Manual Solar panel Battery Compartment Cover Red LED Indicator (RF transmission) Blue LED Indicator (charging status) USB Port Battery Compartment 2. Insert two AA battery. 3. After inserting the battery, the remote sensor LED indicator will light for 4 seconds, and then flash once per 60 seconds thereafter.
  • Page 6 Instruction Manual the display console (if the sensor is too close, it may not be received by the display console). Remove the battery door on the back of the display, as shown in Figure 2. Insert one AA (alkaline, lithium or rechargeable) battery in the back of the display console.
  • Page 7 Instruction Manual All of the LCD segments will light up for a few seconds to verify all segments are operating properly. Full Display Replace the battery door, and fold out the desk stand and place the console in the upright position. The console will instantly display indoor temperature and humidity.
  • Page 8: Display Console Layout

    Instruction Manual 2.3.1 Display Console Layout Figure 3 1. Current PM 2.5 value 2. Air Quality Level 3. 1h MAX PM 2.5 value 4. Indoor Temperature 5. Indoor Humidity 6. 24h MAX PM 2.5 value 7. History MAX PM 2.5 value 8.
  • Page 9: Wireless Sensor Installation

    Instruction Manual 3. Wireless Sensor Installation Outdoor Installation Use four screws to fix the base of the outdoor sensor on a flat surface.
  • Page 10: Console Operation

    Instruction Manual 4. Console Operation Note: The console has two buttons for easy operation: 【°C/°F】button (on the left), and 【MAX】 button (on the right). 4.1 °C/°F Short press 【 °C/°F 】 button to select the temperature unit: °C/°F 4.2 MAX Press the MAX button for 5s to clear the history max and 24h max PM 2.5 value.
  • Page 11: Function

    Instruction Manual Keep the console several feet away from computer monitors and TVs. 7. Function Indoor temperature and humidity Every 60 second the unit will measure indoor temperature and humidity. PM 2.5 current and max value for 1h/24h/history. Every 60 second the unit will receive wireless PM 2.5 sensor.
  • Page 12: Appendix

    Instruction Manual 8. Appendix About the Air Quality Levels Health Implications Cautionary Statement Pollution (for PM2.5) Level Air quality is considered satisfactory, and air 0 - 50 Good None pollution poses little or no risk Air quality is acceptable; Active children and however, for some adults, and people with pollutants there may be a...
  • Page 13: Specifications

    Instruction Manual 9. Specifications 9.1 Wireless Specifications  Line of sight wireless transmission (in open air): 300feet(100meters)  Frequency: 433.92 MHz  Update Rate: 60 seconds 9.2 Measurement Specifications The following table provides specifications for the measured parameters. Measurement Range Accuracy Resolution Indoor...
  • Page 14: Fcc Statement

    Instruction Manual NI-MH batteries(battery life: 3 weeks) 2. It's recommended recharge outdoor sensor every two week. 3. Charge time: 3h (The blue LED indicator will light when in charge and be off when full charged) 4.Charge Method: USB charge(USB Cable included) 10.
  • Page 15 Instruction Manual interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference radio communications. However, there is no guarantee that interference will not occur in a particular installation.
  • Page 16: Warranty Information

    Instruction Manual 11. Warranty Information We disclaim any responsibility for any technical error or printing error, or their consequences. All trademarks and patents are recognized. We provide a 1-year limited warranty on this product against manufacturing defects materials and workmanship. This limited warranty begins on the original date of purchase, is valid only on products purchased and only to the original purchaser of this product.
