CLASSIC QUARRY TRIPLE NOJOQUI FALLS
IMPORTANT – RETAIN FOR FUTURE REFERENCE – READ CAREFULLY
Assemble as near as possible to the point of installation. Take extreme care when lifting to avoid
personal injury or damage to the product.
This product contains small items and plastic bags. Please be aware of the danger to young children.
Assistance in mounting your fountain is required. You will need 2-3 people.
635 W. Michigan Street Orlando, FL 32805 · 888-499-5433 http://shop.bluworldusa.com
Installation Manual
Page 1 of 10
Advertisement
Table of Contents
Related Manuals for Bluworld WATER WONDERS CLASSIC QUARRY TRIPLE NOJOQUI FALLS
Summary of Contents for Bluworld WATER WONDERS CLASSIC QUARRY TRIPLE NOJOQUI FALLS

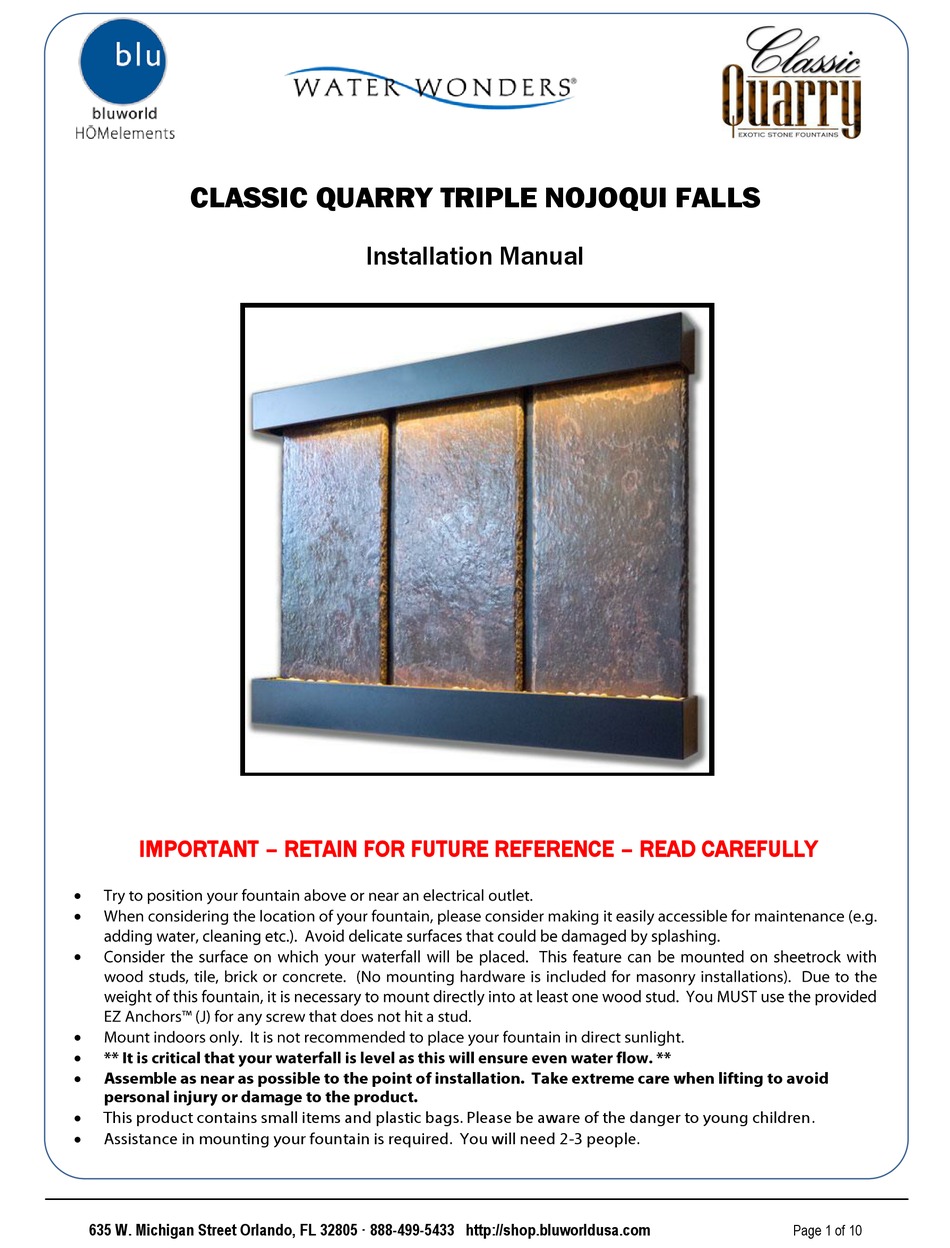

- Page 1 CLASSIC QUARRY TRIPLE NOJOQUI FALLS Installation Manual IMPORTANT – RETAIN FOR FUTURE REFERENCE – READ CAREFULLY Assemble as near as possible to the point of installation. Take extreme care when lifting to avoid personal injury or damage to the product. ...
-
Page 2: Parts List
Parts List Not Shown - Classic Quarry Stones (3) and Trim Strips (2) A. Bracket Template 1 each B. Stone Wall Bracket 3 each C. Remote 1 each D. Reservoir Wall Bracket 3 each E. Water Disperser 3 each F. Water Diffuser 3 each G. -
Page 3: Section 2: Mounting The Wall Brackets
Section 2: Mounting the Wall Brackets 1. Your Triple Nojoqui Falls fountain is 58” tall x 76.5” wide. Determine where on the wall the fountain will be mounted. You may wish to block out the dimensions with low tack or painters masking tape for reference. -
Page 4: Section 3: Mounting The Reservoir And Water Disperser
10. Next locate the 2 Bracket Spacer/Trim Strip Hangers (O). Secure each to the wall using the smallest screws from your hardware bags (J). Place each spacer so it is horizontally level with the center wall bracket and butted up as close to the wall bracket as possible on either side (Fig 2.5). -
Page 5: Section 4: Mounting The First Stone
The curved end of the Pocket Clip should be up and facing the wall. Next slide the tabs on the disperser (E) behind each Pocket clip (M) so it is holding up the disperser (E) (Fig 3.4); you may need to pull the clip out from the wall to slide the tab behind as it should be a very tight fit. -
Page 6: Section 5: Setting Each Disperser And Diffuser
Section 5: Setting Each Disperser and Diffuser 1. Gently lift the disperser (E) of the mounted stone from behind the Pocket Clips (M) and remove each Pocket Clip out of the Wall bracket pocket (B). Slide the tabs on the disperser (E) behind the stone and into the bracket pockets on the wall bracket (B) (Fig 5.1). -
Page 7: Section 7: Connecting The Pumps
Section 7: Connecting the Pumps 1. Place each pump assembly (H) inside the reservoir (L). DO NOT plug the pumps (H) into any outlet. Operating the pumps dry will void any warranty and burn out the pump. You will find a vibration reducing pad affixed to each pump. -
Page 8: Section 9: Installing The Light Kit
Section 9: Installing the Light Kit 1. Carefully unwrap the LED light bar (K). Take care in handling so that the LED strips and connections to transformers are not disturbed. Remove the tie from the electrical cord. 2. Place the LED light bar (K) inside the header (G) with the LED strip facing down (Fig 9.1). - Page 9 RF Wireless LED Remote Control with Finger Slide (Auto Color Changing Functions) 1. Remote Control Technical Information Power supply: AAA battery 3pcs required Working voltage: DC 12V/24V Output control: 3circuits (R/G/B) Receiving range: up to 20 meters or 60 ft. 2.
-
Page 10: Warranty
Bluworld, then the Warranty shall be null and void.
