- Page 1 INFOTAINMENT CENTER Owner’s Manual XSG2NA-X1S Before using this product, please read this manual fully to ensure correct operation. Keep the manual at hand for future reference.
- Page 2 THIS IS A DISCLAIMER OF LIABILITY AND DAMAGE RESPONSIBILITY AS REGARDS TO THE INFOTAINMENT CENTER MANUFACTURER AND YOUR USE OF THE PRODUCT. YOU ASSUME TOTAL RESPONSIBILITY AND RISK FOR USING THIS SYSTEM. Failure to properly focus on the operation of your motor vehicle can result in death, serious injury and property damage.
- Page 3 IMPORTANT SAFETY INFORMATION Safety Information Read the operating instructions for the Infotainment Center and all other components of the system carefully before using the system. FAILURE TO OBSERVE THE INSTRUCTIONS GIVEN IN THIS MANUAL MAY CAUSE INJURY OR DAMAGE AND VOID THE WARRANTY. Warnings Observe the following warnings when using this unit: The driver should neither watch the display nor operate the system while driving.
- Page 4 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: THIS DVD VIDEO RECORDER IS A CLASS 1 LASER PRODUCT. USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
- Page 5 Your Infotainment Center has been designed specifically for use in Recreational Vehicles. This system has been designed to offer a rich and intuitive feature set that is simple to use and even easier to enjoy. We have engineered this system based off input from real RV’ers like you! We want your feedback.
-
Page 6: Table Of Contents
Contents Features ......................7 Main Unit Display ....................8 Setup ......................... 10 3.1 General Settings ................... 10 3.2 Video Setup ....................11 3.3 Audio Setup ....................11 Radio Operation ....................13 CD Player Operation ..................14 USB - MP3/WMA/MP4 Player Operation ............15 DVD/VCD Player Operation ................ -
Page 7: Features
Features 6” Touch Screen LCD Display Picture in Picture (PIP) Display Audio Information Bar for Navigation Mode GPS Navigation (Optional) SiriusXM Satellite Radio Ready AM/FM/RDS Stereo Radio iPod/iPhone Interface and Control DVD R/RW, CD R/RW, VCD Compatible MP3, WMA, MPEG Audio/Video File Compatible Bluetooth Hands-Free Calling and Streaming Audio Player (A2DP) Rearview Camera Connectivity Auxiliary Monitor Support... -
Page 8: Main Unit Display

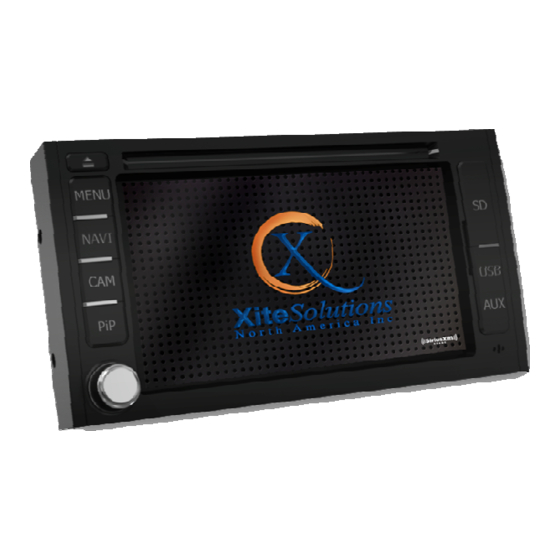

2 Main Unit Display The buttons located on the Infotainment Center front display are assigned the same reference here below. Main unit buttons EJECT Rotary button Volume/Power Mode (Main Menu) Navigation SD card (cover) Navigation AUX/USB port (cover) Camera Bluetooth Microphone PiP (Picture in Picture) EJECT 1. - Page 9 PIP (Picture in Picture) 1. Your Infotainment Center is equipped with PIP. This button will toggle between PIP and full screen of the active source (see page 11 for more details on this feature). Rotary button Volume/Power 1. Turn on the ignition to power up the Infotainment Center. When the Infotainment Center is started up, it will immediately go to the last mode (memory on playback) before it was turned off.
-
Page 10: Setup
System Settings page two (2/3): Temperature: Here the format can be selected how the XSG2NA-X1S should display the outside temperature (Fahrenheit or Celcius). This feature is vehicle depending Compass Display: Here the compass heading format can be selected. The options are by Direction (N, W, etc) or bearing (degree notation). -
Page 11: Video Setup
System Settings page two (3/3): Factory Set: With this option, the Infotainment Center can be reset to factory default. Note: All stored settings, presets, SIRIUSXM content alerts, etc., will be erased and return to original factory settings. Locked/Skipped channels, lock code in SIRIUSXM will remain unchanged. - Page 12 Audio Settings page two (2/2): Center Volume: Sets the volume level for an optional center speaker when connected (MUTE – MAX). Woofer Volume: Sets the volume level for an optional subwoofer speaker when connected (MUTE – MAX). NAV Volume: Sets the gain of navigation volume (-10 - +10).
-
Page 13: Radio Operation
4 Radio Operation Radio mode can be selected from the Main Menu by pressing the Radio icon on the LCD display. The Radio mode can be left at any time by pressing the Radio icon at the top left of the Radio screen. The radio interface contains several buttons that all have their specific purpose. -
Page 14: Cd Player Operation
5 CD Player Operation CD/DVD mode can be selected from the Main Menu by pressing the DVD icon on the LCD display. The CD/DVD mode can be left at any time by pressing the Disc icon at the top left of the CD/DVD screen. Disc Insert/Eject Press the EJECT button below the LCD display to get access to the CD/DVD player behind the LCD... -
Page 15: Usb - Mp3/Wma/Mp4 Player Operation
6 USB - MP3/WMA/MP4 Player Operation USB mode can be selected from the Main Menu by pressing the USB icon on the LCD display. The USB mode can be left at any time by pressing the USB icon at the top left of the USB screen. To access and use the USB feature please connect your USB compatible device (USB stick, HD, etc.) first to the USB cable provided. -
Page 16: Dvd/Vcd Player Operation
7 DVD/VCD Player Operation (Please refer to the safety instructions in regard to video playback on page 3) CD/DVD mode can be selected from the Main Menu by pressing the DVD icon on the LCD display. The CD/DVD mode can be left at any time by pressing the Disc icon at the top left of the CD/DVD screen. Disc Insert/Eject Press the EJECT button below the LCD Display to get access to the CD/DVD player behind the LCD... - Page 17 DVD Settings page two (2/2): Sound Mode: Here a selection can be made to set up the speaker system connected. When a full 5.1 system is connected, the sound mode can be set to 6CH. When a normal audio system is connected, 2CH has to be selected.
-
Page 18: Bluetooth Operation
8 Bluetooth Operation Bluetooth mode can be selected from the Main Menu by pressing the Bluetooth icon on the LCD display. The Bluetooth mode can be left at any time by pressing the Bluetooth icon at the top left of the Bluetooth screen. The Infotainment Center supports Bluetooth wireless connections. - Page 19 Notes on Pairing: 1. If PAIR START appears temporarily, the pairing cannot start due to an active connection. Please disconnect any active mobile phones. 2. Only when PAIRING is displayed, the Infotainment Center becomes visible for mobile phones. Use your mobile phone to search for the Infotainment Center to connect to your mobile phone. 3.
-
Page 20: Incoming Calls
Incoming Calls While the mobile phone is connected, incoming calls will be handled by the Infotainment Center. When an incoming call is present, the LCD display will switch to Bluetooth mode and show the phone number (when available) from the person calling. Under the phone number, the buttons Accept and Reject are present. -
Page 21: Av (A2Dp Audio Playback Over Bluetooth)
AV (A2DP Audio Playback over Bluetooth) Some mobile phones also support the functionality of A2DP (Audio transfer protocol). The Infotainment Center uses this protocol to find audio files on the mobile phone and play the audio over the normal speakers. Some phones will also support the audio playback of certain apps, like internet radio, through the XSG2NA. -
Page 22: Siriusxm Satellite Radio
9 SiriusXM Satellite Radio Everything worth listening to is on SiriusXM, getting over 130 channels, including the most commercial-free music, plus the best sports, news, talk and entertainment. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com. To activate SiriusXM Canada service go to www.xmradio.ca and click on “ACTIVATE RADIO”... -
Page 23: Tuning To A Channel
Tuning to a channel Press once to tune to the next/previous channel. Press and hold to rapid tune. To page through a channel or category list press found to the right of the channel list. The Infotainment Center will store up to 18 preset stations of your choice. Press to go to the next series of preset channels (3 Bands X 6 Presets). -
Page 24: Mature Channel Locking
2. Tune to a locked channel. When the keypad is displayed input your lock code and press enter. Once you have successfully entered the lock code SiriusXM will remain in Unlocked mode until the Infotainment Center is turned off, put into standby mode or you repeat step one above. 9.4.3 Mature Channel Locking The Infotainment Center is set to default the Mature Channel Locking to OFF. -
Page 25: My Artists & My Songs Virtual Categories
the right. Touch the “X” and the alert will be removed. Please see page 24 for instructions to clear all alerts 9.5.3 My Artists & My Songs Virtual Categories When there are active alerts playing the Infotainment Center creates virtual categories called My Artists and My Songs. -
Page 26: Understanding Siriusxm Advisory Messages
Clear All Locks: Press to remove all user defined locked channels. Entry of lock code is required when prompted. Clear All Alerts: Press to clear all saved Artist and Song Alerts. Understanding SiriusXM Advisory Messages Check Antenna The radio has detected a fault with the SiriusXM antenna. The antenna cable is either disconnected or damaged. -
Page 27: Ipod And Iphone Av Interface
10 iPod and iPhone AV Interface The Infotainment Center can also be connected to your Apple iPod or iPhone. When the iPod is connected, press the iPod icon in the Main Menu. The iPod mode can be left any time by pressing the iPod icon at the top left of the screen. -
Page 28: Aux & Aux Operation
The F-AUX is connection is located on the front of the XSG2NA-X1S and can be access by opening the cover. The F-AUX connector is a 3.5mm jack connection that can be used to connected mobile devices like MP3 players and other portable media players. -
Page 29: Camera (Optional)
12 Camera (Optional) The Infotainment Center can be connected to an optional rearview camera or camera control box (for multiple cameras) to enhance viewing around your vehicle while performing maneuvers. When connected, the camera AV source can be displayed in two ways: Manual Viewing: By selecting the Camera icon from the Main Menu you can have full screen display of your rear camera. -
Page 30: Navigation (Optional)
13 Navigation (Optional) The Infotainment Center is capable of providing navigation. If you have purchased this option please see your Navigation Program User Manual for instructions on using the navigation software. Your optional Navigation Program is stored on an SD card. This card is entered into the SD card slot found on the bottom of the LCD display housing. -
Page 31: Premium Remote Control Accessory (Optional)
14 Premium Remote Control Accessory (Optional) The Infotainment Center is compatible with the Premium Remote Control accessory. Main Power Mute Mode Numeric 1 (Preset 1) Numeric 2 (Preset 2) Numeric 3 (Preset 3) Numeric 4 (Preset 4) Numeric 5 (Preset 5) Numeric 6 (Preset 6) Numeric 7 Numeric 8... - Page 32 System (These functions are available with all features of the Infotainment Center) Function Description Power Turns Power ON/OFF to Infotainment Center Mode Return to Main Screen. Press again to cycle through options Mute Toggle Mute ON/OFF Setup Enter Setup Screens Toggle Nav Full Screen ON/OFF Volume up System volume control...
- Page 33 Radio Function Description Next Tune/ Hold for Seek Previous Band Go to next set of Preset Channels (3X6) Numeric (Preset *) Tune to saved Channel Preset 1-6 Numeric 7 (Radio AF) Alternative Frequency ON/OFF Numeric 8 (Radio PTY) Activate Program Type Tuning Numeric 9 (Radio REG) Activate Regional Programming USB/DVD/CD...
- Page 35 2011 All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of River Park Inc. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.
