S T E E R I N G W H E E L R E M O T E C O N T R O L
Lenkradfernbedienung / Adaptateur commande au volant / Stuurafstandsbediening
1.
Green Wire (Vert)
Park Brake (Frein à main)
2.
Pink Wire (Rose) – Speed Pulse
(Impulsion de Vitesse)
3.
Purple Wire (Violet)
Reverse (Marche arrière)
CA-R-CG.001
3.
1.
2.
1/2
Dodge
Avenger, Caliber, Nitro
Chrysler
300C , Sebring (JS 07 →)
Jeep
Grand Cherokee WH (2005 → 2010)
All cars above with/without OE amplifier.

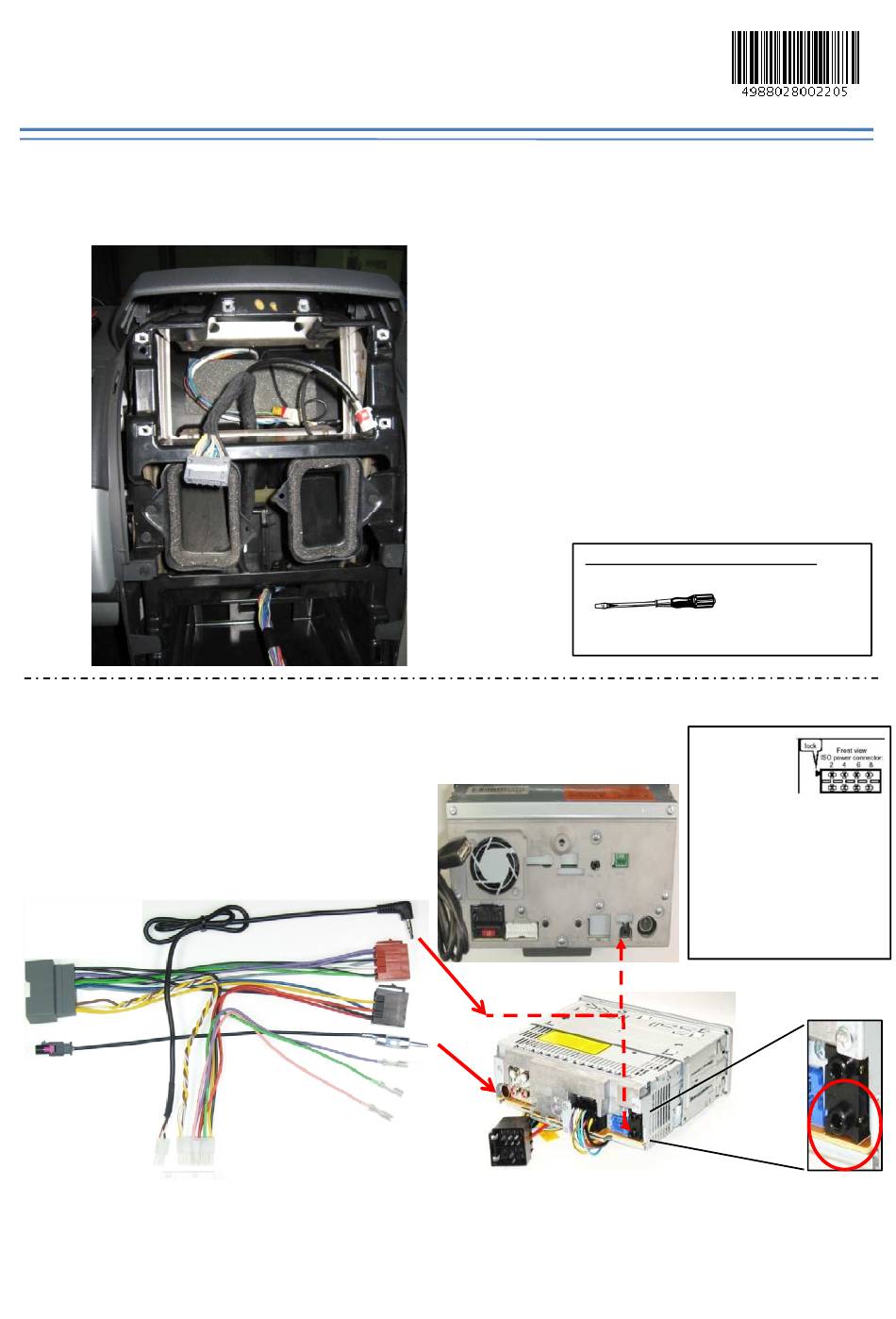

Tools / Werkzeug / Outils / Gereedschap
Phillips screwdriver
Kreuzschraubendreher
tournevis cruciforme
clip
A1 = Not connected
Non relié
A2 = Not connected
Non relié
A3 = Not connected
Non relié
A4 = +12 Volt
+12 Volt
A5 = Antenna Remote
Extérieur d' antenne
A6 = Illumination
Illumination
A7 = Ignition
Ignition
A8 = Ground
Après contact/Masse/Maron
