Page 1

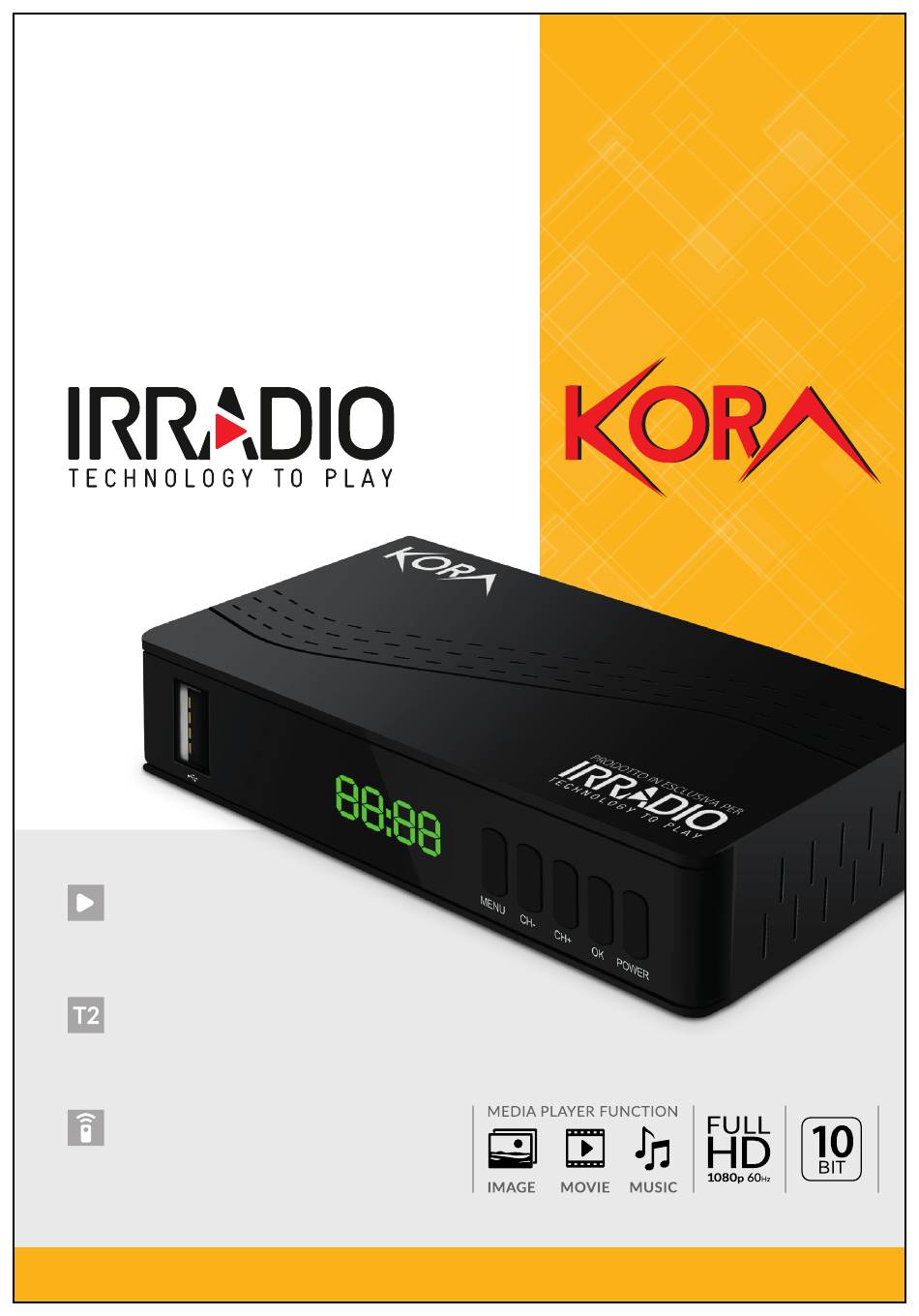

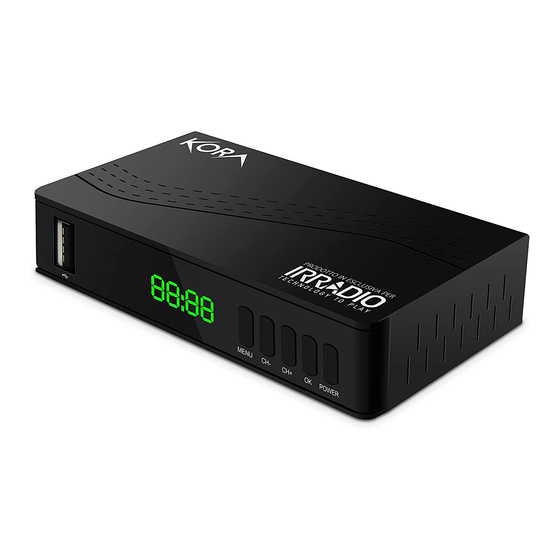

DECODER DIGITALE TERRESTRE DVB-T / T2 DVB-T / T2 H.265-HEVC 10bit i n e s c l u s i v a p e r Riproduzione File multimediali Compatibile DTR-3341 Nuovo standard TV 2021 Telecomando Unificato Decoder e TV con funzione learning...
Page 2
"Switch Off 2021" secondo il nuovo standard DVBT2/HEVC a 60Hz e 10 bit. Con Kora DTR-3341 è possibile ricevere tutti i canali del Digitale Terrestre sia in bassa che in Alta definizione. Kora DTR-3341 integra inoltre la funzione Media Player permettendo la riproduzione di foto e filmati direttamente da una memoria USB.
INDICE (Italiano) 1. INSTALLAZIONE ....................4 1.1 Requisiti di sistema ................... 4 1.2 Contenuto della Confezione ................ 4 1.3 Pannello Frontale e Posteriore ..............5 1.4 Telecomando Remoto ................6 1.5 Cablaggio e Configurazione ................ 8 1.6 Registrazione ..................10 2.
Page 4
IMPORTANTI INFORMAZIONI SULLA SICUREZZA • Leggere attentamente le seguenti istruzioni. • Conservare questo manuale per consultazioni future. • Seguire attentamente tutte le istruzioni. • Non utilizzare mai il dispositivo in ambienti umidi o vicino ad acqua. Non esporre mai l’apparato a schizzi d’acqua. •...
Page 5
• Portare presso un centro abilitato alla riparazione. • Non è un giocattolo. • Tenere fuori dalla portata dei bambini. • L’apparecchio non deve essere utilizzato da persone con problemi fisici ridotti, sensoriali o ridotte capacità mentali o mancanza di esperienza e conoscenza, a meno che non siano sotto la supervisione di persona adulta o che non siano state fornite adeguate istruzioni.
1.2 Contenuto della Confezione Prima dell’utilizzo, verificare che la scatola contenga i seguenti elementi: • Un decoder DVB T2 (Kora DTR-3341) con telecomando (le pile, 2 x AAA, non sono incluse) • Alimentatore da 12V@1A • Un Manuale completo in Italiano ed Inglese •...
1.3 Pannello Frontale e Posteriore Pannello Frontale • USB: Questa è una porta USB 2.0 ad alta velocità utilizzata per connettere una memoria di massa (aggiornamento del FW, riprodurre contenuti video in essa presenti). Nel caso in cui si colleghi un HDD, tanto da 2,5” che da 3,5”, è opportuno provvedere ad un’alimentazione separata (la sezione di alimentazione interna non è...
1.4 Telecomando Remoto Sezione TV Control • STAND-BY[BLU]: Permette la commutazione tra la modalità ACCESO e quella STAND-BY della TV. • AV/TV: Permette di scegliere la porta di ingresso visualizzata sulla TV. • VOL+/VOL-: Permette di aumentare/abbassare il volume della TV. •...
Page 9
• OK: Permette di confermare una scelta o mostra la lista dei canali. • MENU: Passa alla visualizzazione del menu. • EXIT: Permette di uscire dal menu corrente o di tornare al precedente. • Audio/SubT: Permette la selezione del flusso audio/sottotitolo nella riproduzione video da USB o in modalità...
2.Premere e mantenere premuto il tasto SET del [Telecomando DECODER]. Si accenderà la luce rossa con una bassa intensità, mantenendo premuto il tasto per altri 10 secondi circa questa aumenterà in intensità. A questo punto rilasciare il tasto SET. 3.Individuare il tasto del [Telecomando DECODER] che si vuole programmare e premere, per circa 1 secondo, il tasto scelto.
Page 11
Cablaggio • Collegare il cavo antenna all’ingresso RF IN. • È possibile collegare il dispositivo alla TV, in risoluzione standard PAL, tramite il cavo SCART (cavo non fornito). • È possibile collegare il dispositivo alla TV, in risoluzione HD (720p) o FULL HD (1080i/p), tramite il cavo HDMI (cavo non fornito).
Page 12
Il dispositivo partirà in 720p@50Hz. Si consiglia di selezionare 1080p_50 nel caso di televisori FULL HD o 720p_50 nel caso di televisori HD. • [Formato Immagine] premere i tasti Vol-/Vol+ per selezionare il formato di uscita. Si consiglia di lasciare Auto. •...
• Il dispositivo supporta i seguenti file system: FAT32, NTFS. Conf. Sistema->Impostazione Timer • Nel menu Registrazione è possibile eliminare le schedulazioni non più necessarie. Entrare nella Programmazione, spostare la Modalità Timer=Spento e poi evidenziare la voce Salva e cliccare sul tasto OK del telecomando.
2. CONFIGURAZIONE AVANZATA In questo capitolo verranno spiegate tutte le voci presenti nel menu OSD del dispositivo. Premendo il tasto MENU è possibile accedere, tramite la freccia Alto/Basso [CH+/CH-], ai seguenti menu: • Installazione [Scansione Canali automatica, Scansione Canali manuale, LCN] •...
alla funzione desiderata del telecomando per evidenziare, in alto, la scritta Blocca/Salta/Sposta (alcune funzionalità richiedono l’inserimento della password). Premere a questo punto il tasto OK. Verrà visualizzata un’icona, alla destra del canale, indicante l’avvenuta selezione. Un canale Bloccato richiede una password per la visione, mentre un canale saltato viene semplicemente non visualizzato.
2.4 Conf. Sistema Per accedere al menu, premere il tasto MENU e poi, tramite la freccia Dx/Sx [Vol+/Vol-] selezionare [Conf. Sistema], utilizzare tasti freccia Alto/Basso[CH+/CH-] per navigare nel menu (Lingua, Impostazioni TV, Impostazione Schermo, Impostazioni Ora Locale, Impostazione Timer di registrazione, Controllo Parentale, Impostazione OSD, Lista Canali Favoriti, Altro) e premere OK per aprire la voce selezionata.
Page 17
sintonizzazione manuale dei canali) ed il servizio AD (disponibile solo su alcuni canali) e il canale visualizzato alla riaccensione. Media Player Per accedere al menu, premere il tasto MENU e poi, tramite la freccia Dx/Sx [Vol+/Vol-] selezionare [Media Player], utilizzare tasti freccia Alto/Basso[CH+/CH-] per navigare nel menu (Video, Musica, Immagine,...
Page 18
Di seguito un elenco dei file riproducibili: • Codec video: MPEG-2/4 (H.264), VC-1, AVS, AVS+, VPS, HEVC (H.265) • Codec audio: MPEG-1I MPEG-2 layerl/ll, MP3, AAC-LC, WMA, HE-AAC, WMA, AC-3(Dolby Digitai) E-AC-3 (Dolby Digital Plus), IEC958 SPDIF • Contenitore: TS, MPG, MP4, AVI, MKV, FLV, DIVX •...
3. DOMANDE FREQUENTI Problematica Probabile Causa Soluzione Nessuna immagine è Dispositivo spento Accendere dispositivo visualizzata a Video sul Alimentazione Collegare l’alimentazione dispositivo non collegata accendere dispositivo Errore di Input sulla TV Selezionare sulla l’ingresso video corretto è collegato dispositivo La schermata mostra Il cavo dell’antenna non è...
Page 20
Viene riprodotto Il canale selezionato è una Premere TV/Radio per esclusivamente suono RADIO commutare la modalità di ma nessuna immagine funzionamento Il telecomando funziona Orientamento errato Puntare il telecomando male verso il ricevitore posto nel fronte del dispositivo Distanza Ridurre la distanza a non eccessiva/Presenza ostacoli più...
Page 21
fatta ad ogni switch da ora legale/solare. Attivare l’ora legale (Conf.Sistema- >Impostazioni Locale->Ora legale=Acceso) permettere al dispositivo di prendere il DST dalle trasmissioni broadcast automaticamente. Controllo Parentale Password dimenticata La password di default è Menu Blocco Acceso “0000”. Se questa è stata impediscono l’accesso cambiata è...
4. SUPPORTO OFFERTO Per qualunque altro problema o dubbio sul funzionamento del prodotto, è possibile contattare il servizio di assistenza tecnica tramite l’invio di una mail o contattando il servizio di supporto telefonico. Assistenza fornita da: Melchioni Ready srl Tel. 02-49486083 Mail: support@melchioni-ready.com...
Page 23
IMPORTANT SAFETY INFORMATION ● Carefully read the following instructions. ● Keep this manual for future reference. ● Follow all instructions carefully. ● Never use the device in humid environments or near water. Never expose the device to splashes of water. ●...
Page 24
● Keep out of reach of children. ● The appliance must not be used by persons with reduced physical, sensory or reduced mental abilities or lack of experience and knowledge, unless they are under adult supervision or adequate instructions have been provided. ●...
1.2 Contents of the package Before use, check that the box contains the following elements: ● DVB T2 decoder (Kora DTR-3341) with Remote Controller (2xAAA not included) ● AC/DC adapter (12V@1A) ● A complete manual in Italian and English ●...
Page 26
● USB: This is a high-speed USB 2.0 port used to connect a storage device such as HDD, USB Memory Stick. If you use HDD, both 2.5" and 3.5", it is advisable to provide a separate power supply (the internal power supply section has not been designed to supply these additional loads).
1.4 Remote Control TV Control ● STANDBY: Allows switching between the ON and STANDBY modes (TV). ● AV/TV: Allows to select the Input (TV) ● TTX: Teletext is displayed, if supported by the current channel. Press EXIT to exit. ● VOL + / VOL-: Allows raising / lowering the volume level on TV.
● RECALL: Allows to return to the last channel displayed. The programmable remote RC control may not be perfectly compatible with some remote controls available on the market. Please note that this is not a product defect. Programming must be carried out for each individual key, carefully following the instructions below: •...
Page 29
of the device no more than 4 meters away. The remote control has an opening angle of about 60 °. Sunlight or a strongly lit room, or even the presence of obstacles between the remote control and the IR sensor of the device, can interfere with the correct operation of the remote control.
First installation Once all the connections have been made, and after having carefully checked the exactness, it is possible to turn on the TV and then the device via the supplied remote control. The display will show the writing Strt. In this menu you can: ●...
Page 31
● Playing files on USB is active when a compatible device is connected to the front USB 2.0 port. ● Some devices may be not compatible. When large capacity memories are connected, the device may take some time to analyze the entire contents. ●...
2. ADVANCED CONFIGURATION This chapter explains all the items in the OSD menu of the device. By clicking the MENU button you can access the following menus using the Up/Down arrow [CH+/CH-]: ● Media Player [Video, Music, Image, Remove USB device safely] ●...
2.2 Channel To access the menu, press the button MENU and then, using the arrow [Vol+/Vol-], select [Channel]. Using the arrow [CH+/CH-] you can select the sub-menu (TV Channel List, Radio Channel List, Delete All) and press OK to open the selected item.
2.4 System Setup To access the menu, press the button MENU and then, using the arrow [Vol+/Vol-], select [System Setup]. Using the arrow [CH+/CH-] you can select the sub-menu (Language, TV System, Display Setting, Local Time Setting, Timer Setting, Parental Lock, OSD Setting, Favorite, Other) and press OK to open the selected item.
Once the password has been changed, it must be noted and stored in a safe place. 2.5 Tools To access the menu, press the button MENU and then, using the arrow [Vol+/Vol-], select [Tools]. Using the arrow [CH+/CH-] you can select the sub-menu (Information, Factory Setting, Upgrade by USB, Auto StandBy) and press OK to open the selected item.
3. FREQUENTLY ASKED QUESTIONS Problem Probable Cause Solution No image is displayed on Device off Turn the device ON the TV to Video Power supply device is not Connect the power supply connected and switch on the device The Input Error on TV Select (TV) the correct video input device The screen shows "No...
receiver. Moving device Batteries are low Replace the batteries How can I copy files File System device supports larger than 4GB on a FAT32 file systems MicroSD (limited to 4GB maximum connected files) and NTFS. Format device? the memory in NTFS. Press FAV button and Pressing the CH + / CH- The decoder is displaying...
