Installation Manual
P d r a o b p il C
u N e g a
r e b m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AZX6KNXGTWAY and is the answer not in the manual?

Questions and answers

Related Manuals for Airzone AZX6KNXGTWAY

Summary of Contents for Airzone AZX6KNXGTWAY

  • Page 1 Installation Manual P d r a o b p il C u N e g a r e b m...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Warnings and environmental policy ....................................3 Precautions ............................................. 3 Environmental policy ......................................... 3 General requirements ..........................................3 Introduction ..............................................4 Assembly ............................................... 4 Connection ..............................................4 Configuration .............................................. 5 General recommendations ......................................6 Configuration parameters ........................................ 6 Communication objects..........................................

  • Page 3: Warnings And Environmental Policy

    Make all the connections with total absence of power. • Set and connect the elements in accordance with the electronic regulations in force. • In order to connect the elements of the system, use the Airzone cable: shielded twisted cable formed by 4 wires (2x0.22 mm 2x0.5mm •...

  • Page 4: Introduction

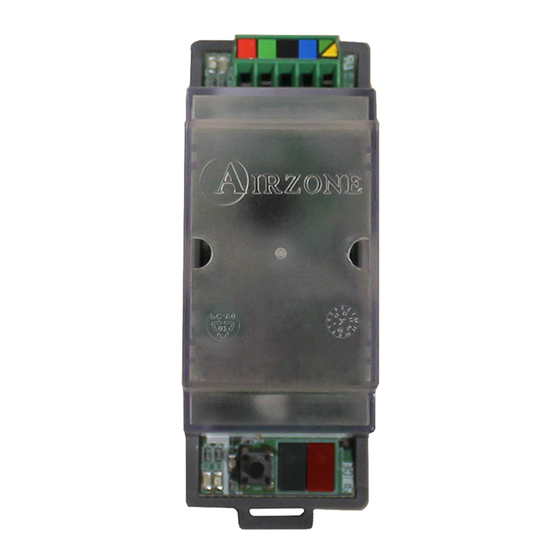

    INTRODUCTION The KNX gateway enables the integration of Airzone HVAC systems through ModBus in KNX TP-1 systems. ASSEMBLY KNX integration gateway is mounted on DIN rail. This module is powered through the automation bus of the main control board and the KNX bus of the installation. It should be placed and mounted in accordance with the current electrotechnical regulations.

  • Page 5: Configuration

    KNX TP-1 bus following the color code. The control module of radiant elements (ARZA6OUTPUT8Z) is a device connected to the Airzone connection bus of the main board. CONFIGURATION This device is totally compatible with KNX, so you can configure it and set it up through ETS tool.

  • Page 6: General Recommendations

    • If there is any zone without an Airzone thermostat, to control the zone from a KNX device, previously configure the zone from the KNX control device or from the group address monitor. This configuration is important to control the zones in water installations (to access a zone, it must have at least a valid Airzone address).
  • Page 7 (Heating/Cooling). Depending on the option selected, the corresponding communication objects will be activated. Activate/deactivate the zones from the zone menu. When a zone is enabled, an Airzone thermostat appears next to the zone menu. The value by default is No.

  • Page 8: Communication Objects

    COMMUNICATION OBJECTS The available communication objects on the ETS will vary according to the system. For this reason, there is a functional division of the communication objects available in two categories: systems or zones. There are 8 zones available for centralized systems and up to 8 for distributed systems.
  • Page 9 Object number Name STOP Mode Function On/off Description This communication object reads the operation mode of the AC unit, switching to STOP mode when object value is ON and returning to the previous mode in system 1 if the mode value is OFF.
  • Page 10 Object number Name HEATING mode Function On/off Description This communication object reads the operation mode status of the AC unit connected to system 1, switching to HEATING mode when the value is ON and returning to the previous mode when the mode value is OFF. Values Off ...
  • Page 11 Object number Name DRY mode Function On/off Description This communication object reads the operation mode status of the AC unit connected to system 1, switching to DRY mode when the value is ON and returning to the previous mode when the mode value is OFF. This mode can be only activated when it is available in the AC unit to which the system is connected.
  • Page 12 Object number Name Date Function Date Description This object is used to read the date stored in the system. Format = day/month/year. Values Day of the month: 1...31 Month: 1…12 Year: 1990...2089 Type of access to the Bus Reading Data point identification 11,001 Object number Name...
  • Page 13 Object number Name COOLING demand Function Status Description This object reads the status register value, which indicates if there is cooling demand. This value is 0 on direct expansion units. Values 0  Deactivated; 1  Activated Type of bus access Reading Data point identification 1,003 (DPT_Enable)
  • Page 14 Z. 1 Z. 2 Z. 3 Z. 4 Z. 5 Z. 6 Z. 7 Z. 8 Z. 9 Z. 10 Z. 11 Z. 12 Z. 13 Z. 14 Object number Name Zone X - Communication Error Function Status Description This communication object allows the gateway to detect the communication errors occurred in the zones.
  • Page 15 Zone X - Local temperature Function Temperature Description It is used to define the local temperature value. In order to make zones without Airzone elements work, it is required to write the room temperature from this object. Values 0ºC…99,9ºC, in steps of 0,1ºC...
  • Page 16 Z. 1 Z. 2 Z. 3 Z. 4 Z. 5 Z. 6 Z. 7 Z. 8 Z. 9 Z. 10 Z. 11 Z. 12 Z. 13 Z. 14 Object number Name Zone x - Zone fancoil speed Function Speed changeover Description These objects are used to read the value of the ventilation speed of the zone in 2-pipe, 4-pipe or mixed installations with Fancoil local module.
  • Page 17 Z. 1 Z. 2 Z. 3 Z. 4 Z. 5 Z. 6 Z. 7 Z. 8 Z. 9 Z. 10 Z. 11 Z. 12 Z. 13 Z. 14 Object number Name Zone X – Heat Stage Function Configuration Description It is used to read the configuration of the heating stages of the zone: Air, Underfloor Heating or both of them at the same time.
  • Page 18 Z. 1 Z. 2 Z. 3 Z. 4 Z. 5 Z. 6 Z. 7 Z. 8 Z. 9 Z. 10 Z. 11 Z. 12 Z. 13 Z. 14 Object number Name Zone X – Cool Stage Function Configuration Description It is used to change the configuration of the cooling stages of the zone: Air, Underfloor Cooling or both of them at the same time.
  • Page 19 Cormano – Milano - Italia Campanillas - Málaga (España) Teléfono: +34 900 400 445 Téléphone : +33 184 884 695 Telefono: +39 02 56814756 Fax: +34 900 400 446 Fax : +33 144 042 114 Fax: +39 02 56816158 http://www.myzone.airzone.es http://www.myzone.airzonefrance.fr http://www.myzone.airzoneitalia.it...
