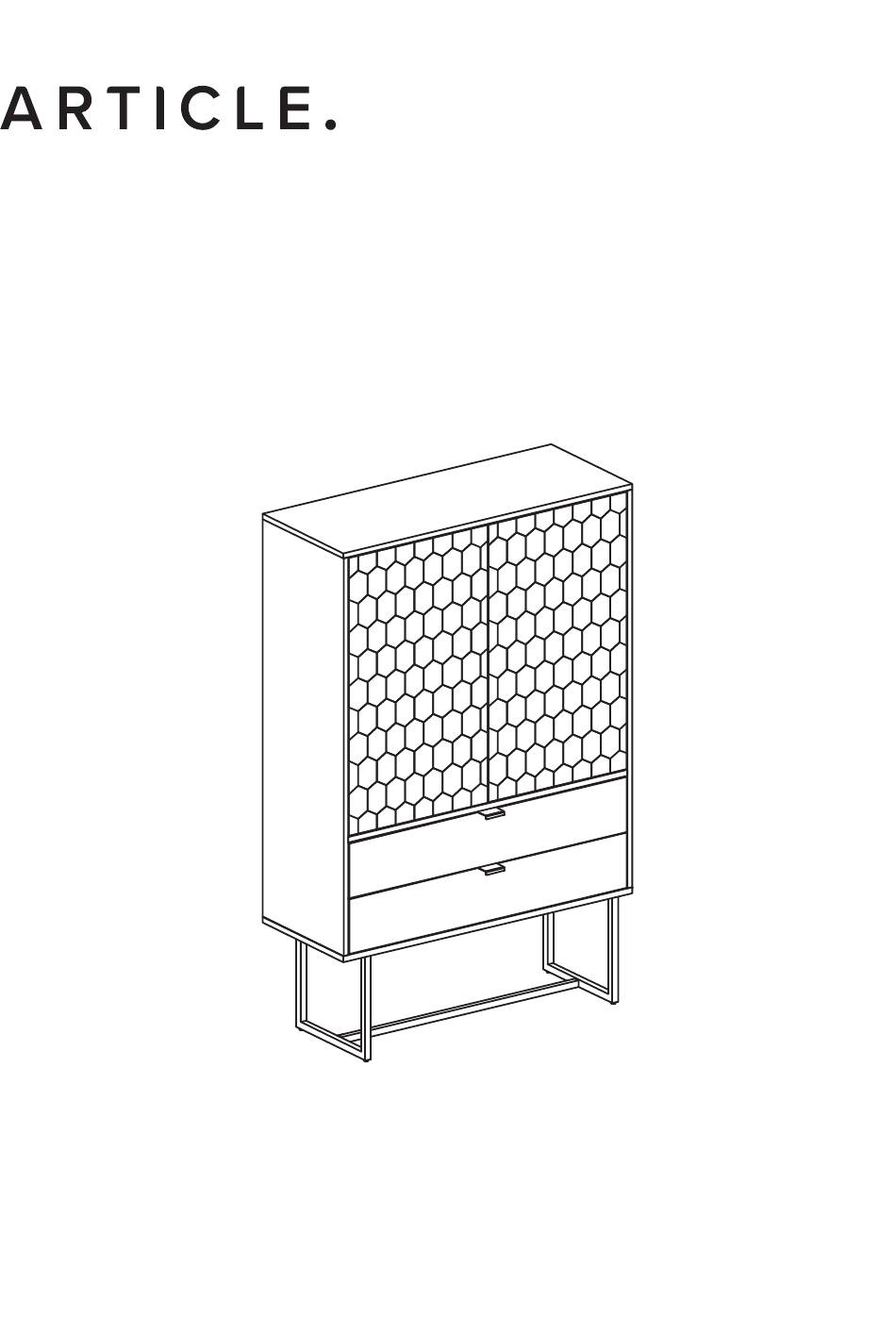

- Page 1 VERSION 1.0 Assembly Instructions GEOME Cabinet...
-
Page 2: Parts Inventory
DIFFICULTY surface such as a carpet to prevent scratches. If you’re having difficulty, our friendly Customer Care team is always here to help. Call us at 1.888.746.3455 during business hours, email service@article.com or chat live at article.com. ANTI-TIP Installation Required... - Page 3 GEOME Cabinet Page 3 of 7 100% × 2 × 2 100% × 4...
- Page 4 GEOME Cabinet Page 4 of 7 × 2 100% × 6 100% Fully tighten all bolts.
- Page 5 GEOME Cabinet Page 5 of 7 × 8 Adjust shelf pins (I) to desired height. × 4 Adjust levelers on leg frames as needed. If the magnet on the door locking mechanism isn’t catching properly, adjust the lock mechanism by twisting the dial on the end to extend it further outward.
- Page 6 GEOME Cabinet Page 6 of 7 DOOR ADJUSTMENT INSTRUCTIONS During shipping, the doors of your cabinet may have shifted slightly. This can easily be corrected by tightening a few screws. Always start by adjusting the top hinge on the affected door. REQUIRED TOOL FIX A CROOKED DOOR If the door is crooked, adjust hinge(s) up or down:...
-
Page 7: Depth Adjustment
GEOME Cabinet Page 7 of 7 SIDEWAYS ADJUSTMENT If the door needs adjustment side to side: DEPTH ADJUSTMENT If the door needs adjustment forward or backward:... - Page 8 Page 1 of 3 CABINET Anti-Tip Installation 1010 Raymur Ave. Vancouver, BC V6A 3T2 ANTI-TIP RESTRAINT INSTALLATION WARNING! Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over: 20 min • Install tip-over restraint provided. • Do not set heavy objects on top of this product, TIME # OF PEOPLE...
- Page 9 Page 2 of 3 CABINET Anti-Tip Installation × 4 × 2 Attach pair of brackets to top Mark on wall where second pair corners of the back of the unit. of brackets should be placed. × 4 × 4 × 4 Drill holes in wall using 8mm / 5/16"...
- Page 10 Page 3 of 3 CABINET Anti-Tip Installation Align brackets on unit with brackets on wall. × 2 × 2 Pull strap down until it snap-locks.
