BFT Genuine Q.Bo Quick Start Manual

Adding a code
1. Press ON button for 5 seconds or wait until the Red LED light flash once.
2. Enter default (1234) or existing password.
3. Press OK button. The Green LED light flashes and Red LED light turn on.
4. Enter the channel number to be activated 4x. (Ch 1: 1111 or Ch 2: 2222)
5. Press OK button. Green and Red LED light turn on at the same time.
6. Enter the new code. Enter 4 digit numbers and best to add the channel
number at the end to remember which function it is. (e.g. New password:
56561 > Channel 1)
7. Press OK button. The Green LED light flashes and Red LED light turn on.
8. Repeat new code and Green LED light turns on. Code added!
WARNING: To add a code, you need to know the system password. T-BOX can
handle up to 100 different codes. The new code will serve the same purpose as the
existing code (activates the same channel).
ABN 27 106 103 315
www.aggdoors.com.au
enquiries@aggdoors.com.au
(03) 8789 1342

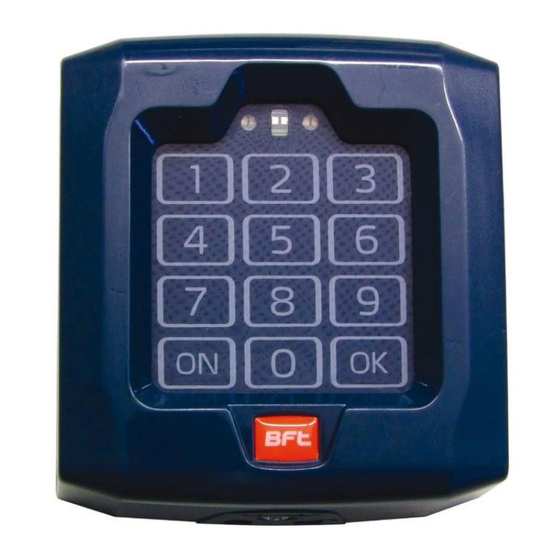

Genuine Q.Bo Wireless Keypad
