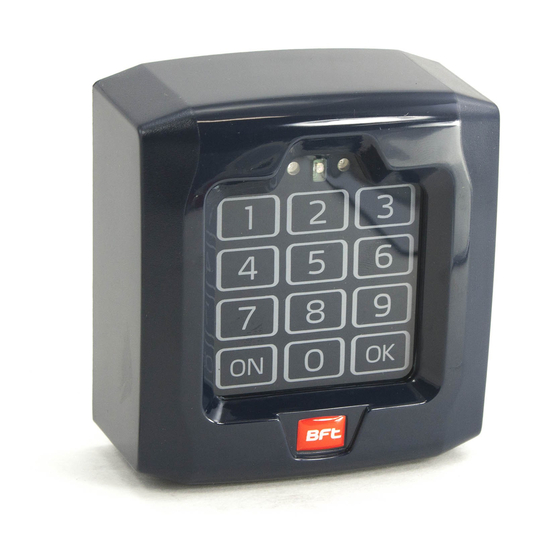

BFT Q.BO TOUCH Installation Manual
Programmable digital pushbutton panel
Hide thumbs
Also See for Q.BO TOUCH:
- Installation manual (14 pages) ,
- Installation manual (12 pages) ,
- Installation manual (12 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for BFT Q.BO TOUCH
Summary of Contents for BFT Q.BO TOUCH
- Page 1 PROGRAMMABLE DIGITAL PUSHBUTTON PANEL Caution! Read “Warnings” inside carefully!
- Page 2 QUICK INSTALLATION INSTALLATION 87,3 OR Ø67x2 Q.BO TOUCH...
- Page 3 ---> 4444= CH 4 ---> 9999= CH 9 ---> 5555= CH 5 ---> 0000= CH 0 Control units with display Timeout 5 min. Timeout 20’’ Receivers Comply with the instructions relating to the receiver/control unit used! (beep x 2) Q.BO TOUCH -...
- Page 4 TOTAL CANCELLATION OF CODES Series of beeps 10” LED state: unlit. MEMORY CANCELLED Q.BO TOUCH...
-
Page 5: Installer Warnings
INSTALLER WARNINGS ENGLISH GENERAL OUTLINE When the Q.BO TOUCH unit’s Red LED flashes after en- Thank you for buying this product, our Company is sure tering the correct code, it means the batteries are low. that you will be more than satisfied with the product’s Repeat the installation procedure in reverse and have performance. -
Page 6: General Outline
The Q.BO TOUCH is a 10-channel transmitter. Each sliding gate opening with channel 1 and overhead channel is associated with a code to be typed on the door opening with channel 2). The Q.BO TOUCH has a keyboard. sensor which, in case of poor light, activates keyboard The transmitter is powered by batteries, therefore lighting to make it easier to enter the code. -
Page 7: Normal Use
Timeout 10’’ WARNING: Q.BO TOUCH will lockout after 3 consecutive incorrect codes are entered and will not accept further codes for 90 seconds. If another incorrect code is entered, Q.BO TOUCH will lockout at the first attempt. Q.BO TOUCH -... -
Page 8: Changing A Code
WARNING: the code consists of a sequence of no less than 4 and no more than 7 digits (in the range 0 to 9). Do not use codes with all the same numbers. (e.g. codes like 2222, 3333, 4444, 0000 etc.). 18 - Q.BO TOUCH... -
Page 9: Deleting A Code
It is advisable to delete the codes of channels that are not associated with anything (e.g. code 2222, 3333, 4444, 0000 etc. when using a single control unit). Q.BO TOUCH -... - Page 10 Enter new code Code added! WARNING: To add a code, you need to know the system password. Q.BO TOUCH can handle up to 100 different codes. The new code will serve the same purpose as the existing code (activates the same channel).
-
Page 11: Changing The Password
CHANGING THE PASSWORD Timeout 20’’ Enter old password 5” Timeout 20’’ Enter old password Timeout 20’’ Enter new password Timeout 20’’ Password changed! Enter new password DEFAULT PASSWORD:......1234 PASSWORD: ........Q.BO TOUCH -... - Page 12 22 - Q.BO TOUCH...
- Page 13 Q.BO TOUCH -...
