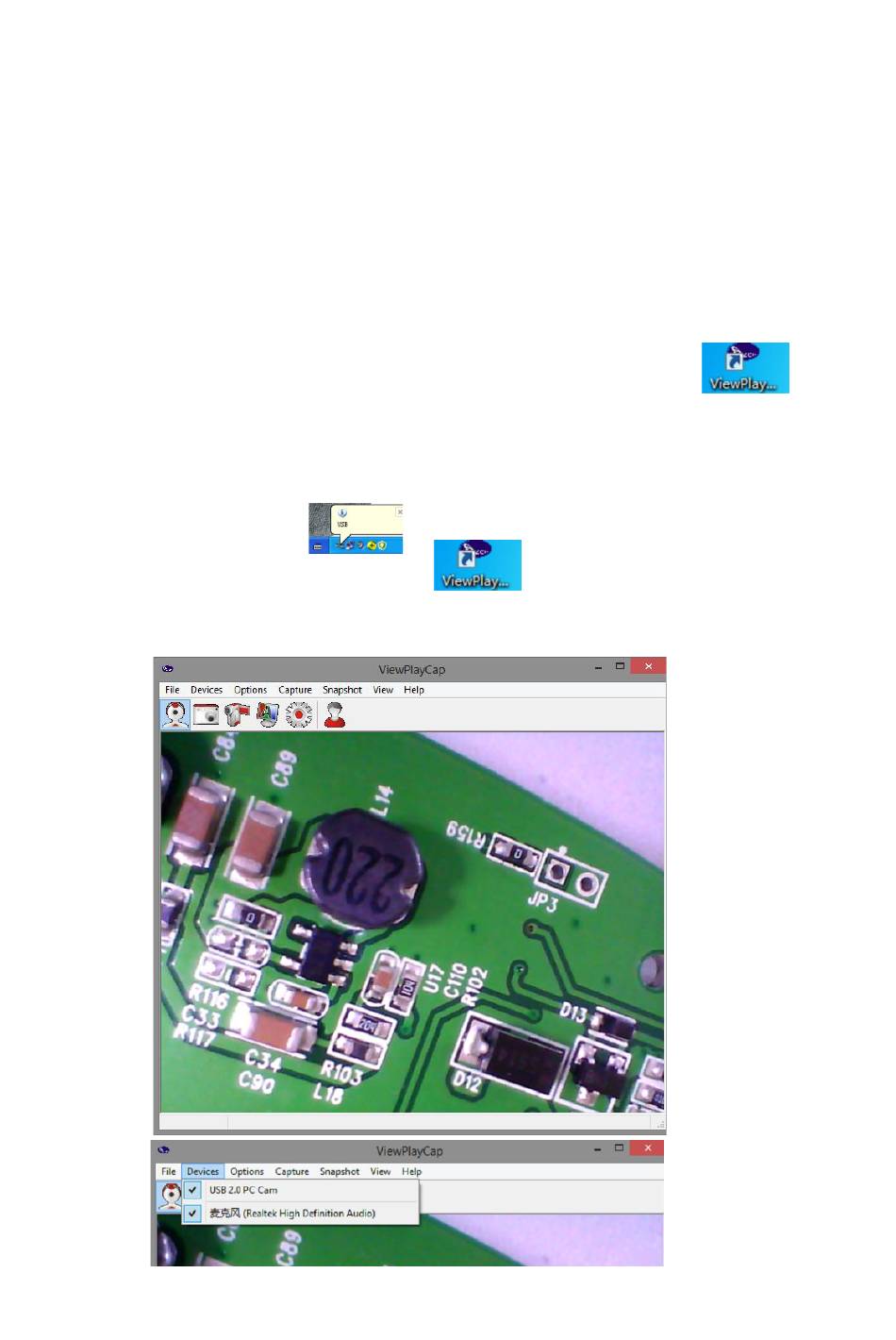

The USB Inspection Camera can be operated in following application platforms.
1.View Play Cap platform
Inserting the CD driver to the CD-ROM of your computer for Installing the
ViewPlayCap successfully, then you can find the ViewPlayCap icon
the desktop.
A. Connecting the USB Inspection Camera to your computer's USB interface;
You can get the prompt of "found a new hardware USB video equipment"
at the bottom right corner of your computer (Windows XP / 7 / 8 system). It needs
longer time for the first time.
B. Double-click the ViewPlayCap icon
display window as below.If no image on the display window,click "Device" and
select "USB video device", then you can see the image.

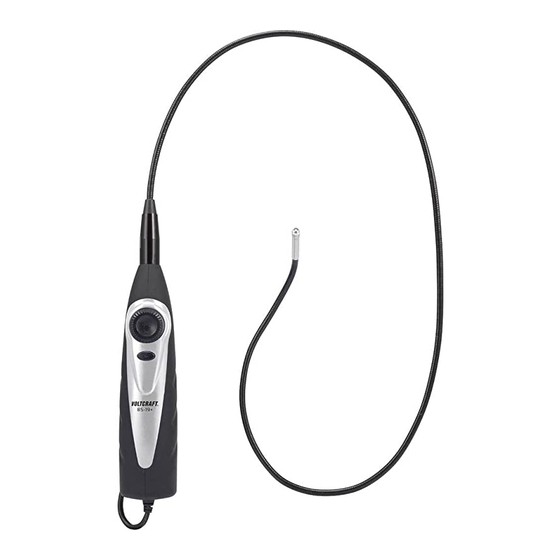

USB Inspection Camera
User Guide
Found N ew H ardw are
V ideo E quipm ent
on the desktop and appear the
on
Advertisement
Related Manuals for VOLTCRAFT BS-19+
Summary of Contents for VOLTCRAFT BS-19+
- Page 1 USB Inspection Camera User Guide The USB Inspection Camera can be operated in following application platforms. 1.View Play Cap platform Inserting the CD driver to the CD-ROM of your computer for Installing the ViewPlayCap successfully, then you can find the ViewPlayCap icon the desktop.
- Page 2 Click "Video Capture Pin" for choose the resolution as you need before taking photo and video. C.The LED lights' brightness can be adjusted by the LED adjuster on the handle; D.There are 2 methods for taking the pictures; a). Press the Snap shot button on the handle; b).
- Page 3 E. Video capture:Click‘file’option.select"set capture file" as below. Setting the file name and location and saving the video, click "OPEN" to preserve.
- Page 4 Setting up the capture file size,click"OK"; Click "Capture" and Setting up the time limit,then press "OK".
- Page 5 Click on " Capture" and select"start capture" or click for video capture. Click the "OK" to capture automatically and stop during the time limit, and stored in a designated location.
- Page 6 2. AM CAP platform AM CAP is a green software,which needn't install before use. Copy the AM CAP file from the CD to your desktop and double-click the AM CAP icon for operating.If no image on the display window,click "Device" and select "USB video device", then you can see the image.
- Page 7 A. Connecting the USB Inspection Camera with your computer's USB interface; You can get the prompt of "found a new hardware USB video equipment" at the bottom right corner of your computer (Windows XP / 7 / 8 system). It needs longer time for the first time.
- Page 8 After finishing the file name and appear following display window, then setting up the capture file size, click "OK" button. Selecting "Capture"and Setting up the time limit,then press OK...
- Page 9 Click on " Capture" and select"start capture" for video capture. Click"OK" to capture automatically and stopped during the time limit, and stored in a designated location.
- Page 10 If have not set up time limit,you can click ' Capture ' and select‘Stop Capture’。 3.USB camera platform USB camera is also a green software,which need not install before use. Copy the USB Endoscope file from the CD to your desktop and double-click the USB Endoscope icon for operating.
- Page 11 Click "Capture Size" for choosing the resolution and other data as you need before taking photo and video. 4. Windows XP system platform In the Windows XP system, click the "my computer" on the desktop, then you can find the following image icon and double click it for operating directly .You can find the image window and press the snapshot button of the inspection camera for capturing photos.
- Page 12 Fault detection: It can not see any images when the USB Inspection Camera is connected with the computer. A.Check the hardware connection status. Connect the USB Inspection Camera with the computer,right click ' My Computer ' icon, and select ' manage ' ; Select ‘device manager’,then click ‘Universal Serial Bus controllers’...
- Page 13 To Ensure there are as below. B. If still can not work，please check whether the USB port is ok or not or check the status of software. Remark： When more than one USB video equipment connected to the computer, '"device" will have multiple "USB Device",just select the one you need to use. If cut off suddenly , or pull up the USB and pull in again,then it will need to select the device "USB Device"...
