ABLE2 PR60227 Assembly Instructions

1. Remove all parts from the box and become familiar

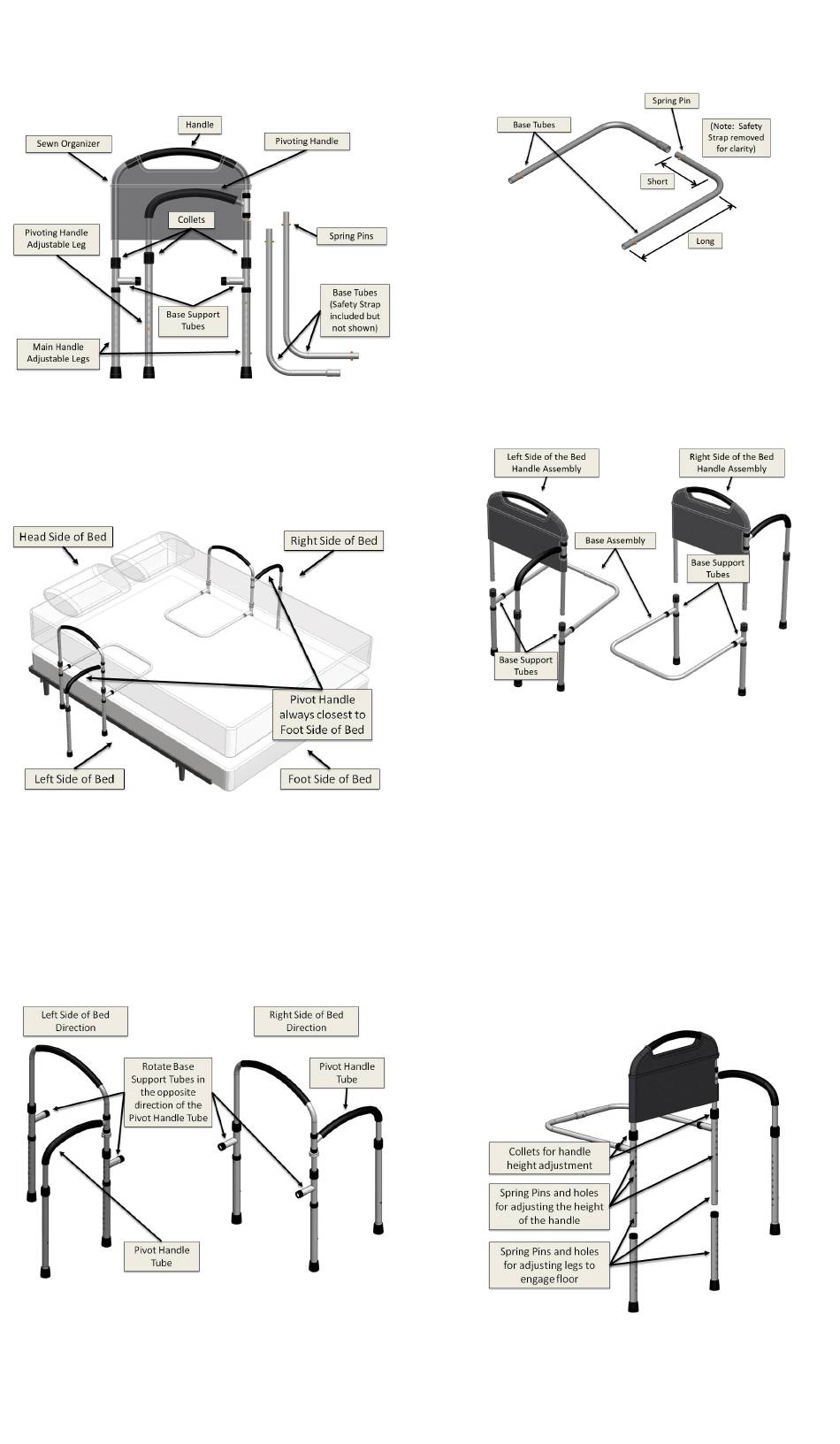

with the parts as shown in Figure 1.
FIGURE 1
2. Determine which side of the bed the product will be
installed as shown in Figure 2.
FIGURE 2
3. IMPORTANT:
Position the product in the correct
orientation based on which side of the bed you will be
using this product as shown in Figure 3.
FIGURE 3
5850 Mobility Bed Rail V 1.0
Assembly Instructions
4. Connect Base Tubes together as shown in Figure 4.
5. NOTE: This next step is dependent on which side of
6. Adjusting height of Main Handle:
7. Adjusting height of Main Handle legs:
FIGURE 4
the bed the product will be installed. Attach Base
Tubes into the Base Support Tubes as shown in
Figure 5. Make sure the Spring Pins engage the hole
in the Base Support Tubes.
FIGURE 5
As shown in Figure 6, the height of the handle can be
adjusted up or down by loosening the Collets by
rotating counter clockwise. Depress both spring pins
so the handle can move up or down to the desired
height. After adjusting the Main Handle to the desired
height, tighten Collets by rotating clockwise.
As shown in Figure 6, the Main Handle Adjustment
Legs can be adjusted up or down to engage the floor
by depressing the spring pins so the legs can move
up or down to the desired height.
FIGURE 6
