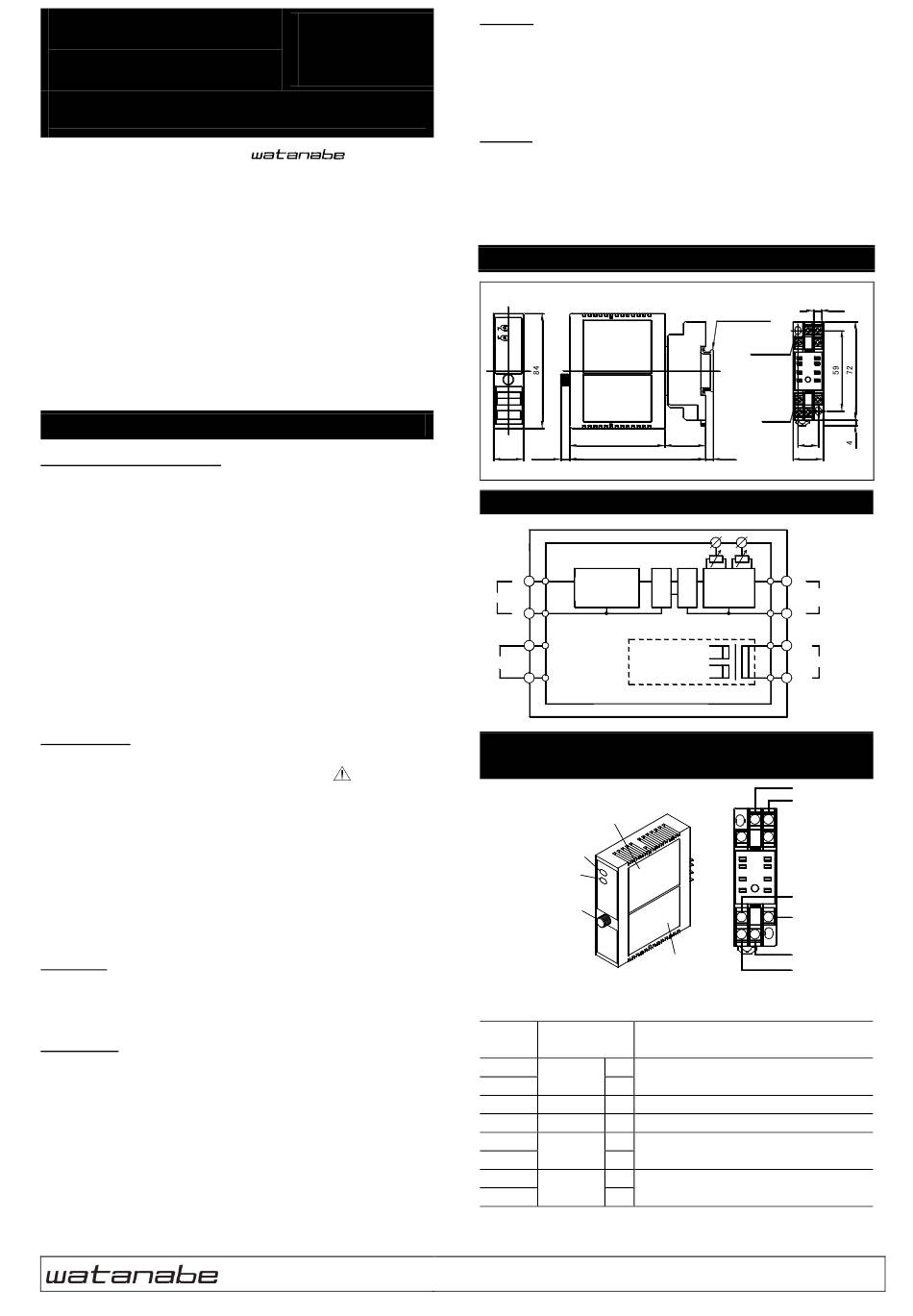

WATANABE WSP-IS Instruction Manual

INSTRUCTION
MANUAL
ISOLATION CONVERTER
HIGH-RESPONSE ISOLATOR
Thank you for selecting another fine
check the description given on the rating label of this unit to make sure
that it meets your specifications and be sure to read this instruction manual
before using the product.
This manual outlines the operation, connection and adjustment procedures
of this product.
The unit has been manufactured and inspected according to our strict
quality control standard. If you should find a defect including damage
incurred during transportation, contact us or the dealer where you
purchased it immediately.
○PACKAGE INCLUDES:
・Isolation converter.........................1
・Base socket.................................1
* For details of models and specifications, please download the
specification sheet from our website, and then check it.
1. PRECAUTIONS
1) Conformity with CE directive
・ This equipment is compliant with Installation Category II and
Pollution Degree 2 environment. The insulation capability between
signal input and output is basic insulation. Before installing, please
check that the insulation class of this equipment satisfies your system
requirements.
・ Please be sure to install this equipment to the inside of a panel.
・ Please use this equipment at an altitude of up to 2000 m.
・ Compliance with EN standards:
EN61326-1 EMS: Industrial environments; EMI: Class A
The wiring length should be not more than 30 m.
EN61010-1
EN50581
* Custom-made items other than a catalog standard specification are
outside CE conformity.
2) Power supply
・ Check the rated voltage on the rating label, and use the product
within the range of each of the following ratings (
the rating label.)
① 100 to 240VAC
100 to 240VAC ±10% (50/60 Hz) approx. 4.0 VA
② 24VDC
24VDC ±10% approx. 60 mA
* You can use it as 10.8 to 30 V, if you do not use this product as a
CE compliant article.
③ 110VDC
110VDC ±10% approx. 11 mA
3) Handling
・ When removing or mounting the main body from/to the socket, be
sure to turn OFF the power supply and the input signal in advance to
prevent any problems.
4) Installation
・ This equipment is designed for indoor use.
・ Please install the main body in a location where the ambient
temperature is within -5 to 55°C.
・ Please install the main body in a location where relative humidity is
less than 90%RH (no freezing or condensation).
・ When the equipment is to be installed in a location where there is
excessive dust or metal particles, house it in a dust-proof cabinet,
which has a heat radiation function.
・ Avoid exposing the equipment to vibration and impact, which may
cause malfunction.
・ Please do not block ventilation openings of the main body.
5) Wiring
WSP-IS
WSP-DS
WSP-DE
6) Others
product. Please
2. OUTLINE DIMENSIONS
3. CIRCUIT DIAGRAM
INPUT
4. NAME OF EACH PART AND
is indicated on
Terminal
Connection points
Screw tightening torque
6-16-19, JINGUMAE, SHIBUYA-KU, TOKYO 150-0001, JAPAN
1/2
・ Be sure to keep the wiring of the power line, input signal line and
output signal line away from any noise source, relay driving line and
high-frequency line.
・ Avoid clamping these lines together with a noise-superimposed line
or putting them together in the same duct.
・ This equipment can be operated as soon as the power supply is
turned ON. However, for optimum performance, allow 30 minutes of
energizing time.
・ This product is precision equipment. It is therefore recommended
that you periodically calibrate it by performing ZERO and SPAN
adjustments once a year.
SPAN
OUT1 Rating
定格ラベル
ZERO
label
Terminal
MODEL
端子ラベル
WSP-
label
TAG NO.
70
22 6.5 100
＋ 1
Voltage amplifier
電圧増幅回路
circuit
－ 4
絶縁回路 Isolation
circuit
5
Power
NC 電源回路
circuit
8
Base socket assembly
（ベースソケット部）
TERMINAL LAYOUT
定格ラベル
Rating label
スパントリマ Span-trimmer
ゼロトリマ
Zero-trimmer
Setscrews of the
本体固定ネジ
main unit
端子ラベル Terminal label
Main unit 本体
Symbol
No.
1
＋
INPUT Connect the specified input signal.
4 －
5
NC No Connection
8
NC No Connection
9
＋
The signal based on the input/output
OUTPUT
specification is output.
12 －
13 U(+)
POWER Connect the power supply of the rated voltage.
14 V(-)
: M3 SEMS screw
: Recommended: 0.6 N-m
TEL: +81-3-3400-6147 FAX: +81-3-3409-3156
Base
DINレール ソケット部
DIN rail
socket
取付の場合
35 mm
6
(35mm幅) width
2-φ4.2 x 5 2-長穴
φ 4.2×5
Mtg hole
8-M3
8-M3
Screw
ネジ
30 15
4 23
Unit: mm
単位：ｍｍ
ZERO SPAN
9 ＋
Output
出力回路
circuit
OUTPUT
12 －
13 U(+)
Input 入力
POWER
Output
出力
14 V(-)
－
INPUT
＋
4
1
8 5
－
OUTPUT
＋
9
12
14 13
U(+)
POWER
V(-)
Socket (8 pins)
ソケット（8ピン）
Contents
IM0718-01
