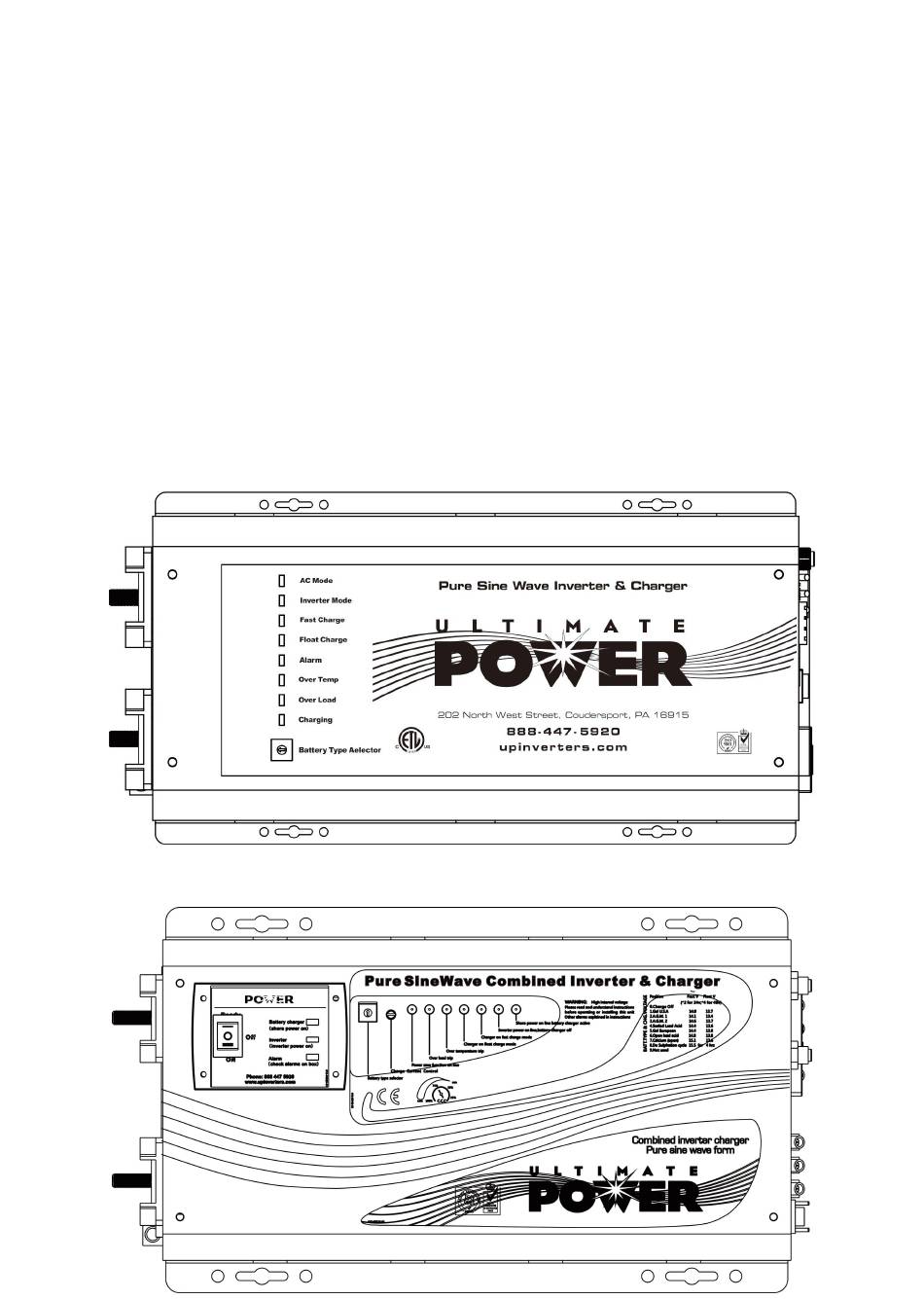

- Page 1 LP Series Pure Sine Wave Inverter/Charger User’s Manual For Models UP12/600LP-C UP12/600LP-CG UP12/1000LP-C UP12/1000LP-CG UP12/1500LP-CG...
-
Page 3: Table Of Contents
3.3 AC Wiring Recommendations..........................- 18 - 3.4 Grounding................................- 18 - 3.5 Mounting Flange..............................- 19 - 4 Maintenance & Troubleshooting............................- 21 - Limited Warranty Plan................................- 23 - Appendix 1 : LP Series Inverter/Charger Spec Sheet......................- 24 - - 1 -... -
Page 4: Important Safety Information
All wires should be copper conductors. 1.1 General Safety Precautions 1.1.1 Before installing and using the LP Series Pure Sine Wave Inverter/Charger, read the manual and cautionary markings on the Inverter/Charger enclosure. Be sure to read all instructions and cautionary markings for any equipment attached to this unit. -
Page 5: Precautions When Working With Batteries

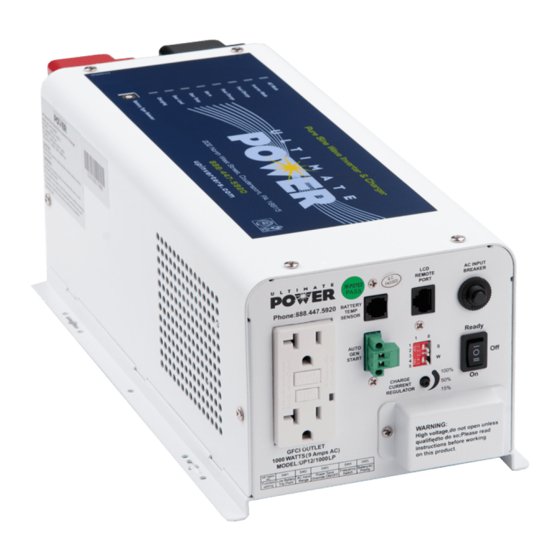

2.1 General Information Thank you for purchasing the LP Series Pure Sine Wave Inverter/Charger. The LP Series Pure Sine Wave Inverter/Charger is a transformer based inverter and battery charger with an unprecedented conversion efficiency of 90%. It features power factor corrected, sophisticated multi-stage charging control and pure sine wave output with high surge capability to meet power needs of all sorts of demanding loads without putting the equipment at risk. -
Page 6: Mechanical Drawing
Ultimate Power www.upinverters.com 2.2 Mechanical Drawing 2.2.1 DC SIDE 2.2.2 UP12/600LP-C,UP12/1000LP-C AC SIDE - 4 -... -
Page 7: Up12/600Lp-Cg,Up12/1000Lp-Cg Ac Side
Ultimate Power www.upinverters.com 2.2.3 UP12/600LP-CG,UP12/1000LP-CG AC SIDE 2.2.4 UP12/1500LP-CG DC SIDE - 5 -... -
Page 8: Up12/1500Lp-Cg Ac Side
Ultimate Power www.upinverters.com 2.2.5 UP12/1500LP-CG AC SIDE 2.3 Features Smart remote LCD control 12.8Vdc Remote Start Auto Generator Start Battery Temperature Sensing for increased charging precision Manual 50Hz/60Hz output frequency switch Maximum 90% conversion efficiency ... -
Page 9: Electrical Performance
95-127VAC, and AC freq is in the range of 48-54Hz(58-64Hz for 60Hz model). The LP series pure sine wave inverter/charger has a very rapid charge current available, and the max charge current can be adjusted from 0%-100% via a liner switch on the DC side of the inverter. This will be helpful if this powerful charger apply charging on a small capacity battery bank. - Page 10 Ultimate Power www.upinverters.com Software timer will measure the time from charger start until the battery charger reaches 0.3V below the boost voltage, then take this time as T0 and T0×10 = T1. Absorb Charging: This is the second charging stage and begins after the absorb voltage has been reached.
- Page 11 The de-sulphation charging should not be carried out on batteries with good conditions. Charging depleted batteries The LP series pure sine wave inverter/charger allows start up and through power with depleted batteries. For 12.8VDC models, after the battery voltage goes below 11V, if the switch is still(and always) kept in "ON"...
-
Page 12: Transfer
Ultimate Power www.upinverters.com 2.4.3 Transfer While in the Standby Mode, the AC input is continually monitored. Whenever AC power falls below the VAC Trip voltage (80VAC, default setting), the inverter automatically transfers back to the Invert Mode with minimum interruption to your appliances - as long as the inverter is turned on. The transfer from Standby mode to Inverter mode occurs in approximately 10 milliseconds. -
Page 13: Protections
(shutdown Output) after 30 seconds. After temp drops to 90ºC (194℉), the switch has to be reset to activate the inverter. The LP series Inverter has back feeding protection which avoids presenting an AC voltage on the AC input terminal in Invert mode. -
Page 14: Led Indicator
Ultimate Power www.upinverters.com 2.4.6 LED Indicator AC MODE GREEN LED on “AC Input Mode” INVERTER ON GREEN LED on “Invert Mode” FAST CHARGE Yellow LED on “Fast CHG” FLOAT CHARGE GREEN LED on “Float CHG” OVER TEMP TRIP RED LED on “Over Temp”... -
Page 15: Audible Alarm
Ultimate Power www.upinverters.com 2.4.7 Audible Alarm The inverter also gives audible alarms when the following situations occur. Battery Voltage Low Inverter green LED Lighting, and the buzzer beep 0.5s every 5s. Inverter green LED Lighting, and the buzzer beep 0.5s every 1s, Battery Voltage High and Fault after 60s. - Page 16 Ultimate Power www.upinverters.com applications, different low voltage disconnection level is preferred. For example, for solar application, user intended to have less DOD (Depth of Discharge) to prolong the battery cycle life (mobile application, users intend to have more DOD to reduce battery capacity and on board weight).
-
Page 17: Auto Generator Start
Ultimate Power www.upinverters.com AC/Battery Priority: Our inverter is designed AC priority by default. This means, when AC input is present, the battery will be charged first, and the inverter will transfer the input AC to power the load. Only when the AC input is stable for a continuous period of 15 days will the inverter start a battery inverting cycle to protect the battery. -
Page 18: Other Features
Ultimate Power www.upinverters.com Inverter Condition Temperature on BTS Charger Operation Charger Mode BTS ≥ 50℃(122℉) Automatically turns off charger BTS ≤ 40℃(104℉) Automatically turns on charger Inverter Mode Increases the low voltage shut down 40℃(104℉) ≤ BTS ≤ 50℃(122℉) point by 0.5Vdc BTS ≥... - Page 19 Ultimate Power www.upinverters.com 3*35mm² instead, as long as the square area adds up. Performance of any product can be improved by thicker cable and shorter runs (so if in doubt round up and keep the length as short as possible).
-
Page 20: Ac Wiring Recommendations
Ultimate Power www.upinverters.com 3.3 AC Wiring Recommendations We recommend using 12 to 14 AWG wire to connect to the ac terminal block. When in AC mode the AC input power will supply both the loads and AC charger, a thicker wire gauge for AC Input is required. -
Page 21: Mounting Flange
Ultimate Power www.upinverters.com 3.5 Mounting Flange 1000W Model End View - 19 -... - Page 22 Ultimate Power www.upinverters.com 1500W Model End View - 20 -...
-
Page 23: Maintenance & Troubleshooting
Ultimate Power www.upinverters.com 4 Maintenance & Troubleshooting This troubleshooting guide contains information about how to troubleshoot possible error conditions while using the LP Pure Sine Wave Inverter/Charger. The following chart is designed to help you quickly pinpoint the most common inverter failures. - Page 24 Ultimate Power www.upinverters.com Symptom Possible Cause(s) Recommended Solution(s) Inverter will not turn on during Batteries are not connected, loose Check the batteries and cable initial power up. battery-side connections. connections. Check DC fuse and breaker. Low battery voltage. Charge the battery.
-
Page 25: Limited Warranty Plan
The noise won’t do any harm to the inverter or the loads Limited Warranty Plan Ultimate Power extends the following warranty to the original purchaser of those goods subject to the qualification indicated: Ultimate Power warrants to the original purchaser for use that the goods or any component thereof manufactured by Ultimate Power will be free from defects in workmanship from date of purchase, provided that such goods are installed, maintained and used in accordance with manufacturer’s written instructions. -
Page 26: Appendix 1 : Lp Series Inverter/Charger Spec Sheet
Ultimate Power www.upinverters.com Appendix 1 : LP Series Inverter/Charger Spec Sheet Electrical Specifications UP12/600LP-C UP12/1000LP-C Model UP12/1500LP-CG UP12/600LP-CG UP12/1000LP-CG Power Rating 600W 1000W 1500W Continuous Output Power 600W 1000W 1500W Surge Rating(20s) 1800W 3000W 4500W Output Waveform Pure Sine wave/Same as input(Bypass mode) - Page 27 Ultimate Power www.upinverters.com Open Lead Acid 14.8 13.3 Calcium 15.1 13.6 De-sulphation 15.5 for 4hrs Remote Control Yes. Optional Input Voltage Waveform Sine wave (Grid or Generator) Nominal Voltage 120Vac Low Voltage Trip 80V/90V±4% Low Voltage re engage 90V/100V±4% High Voltage Trip 140V±4%...
