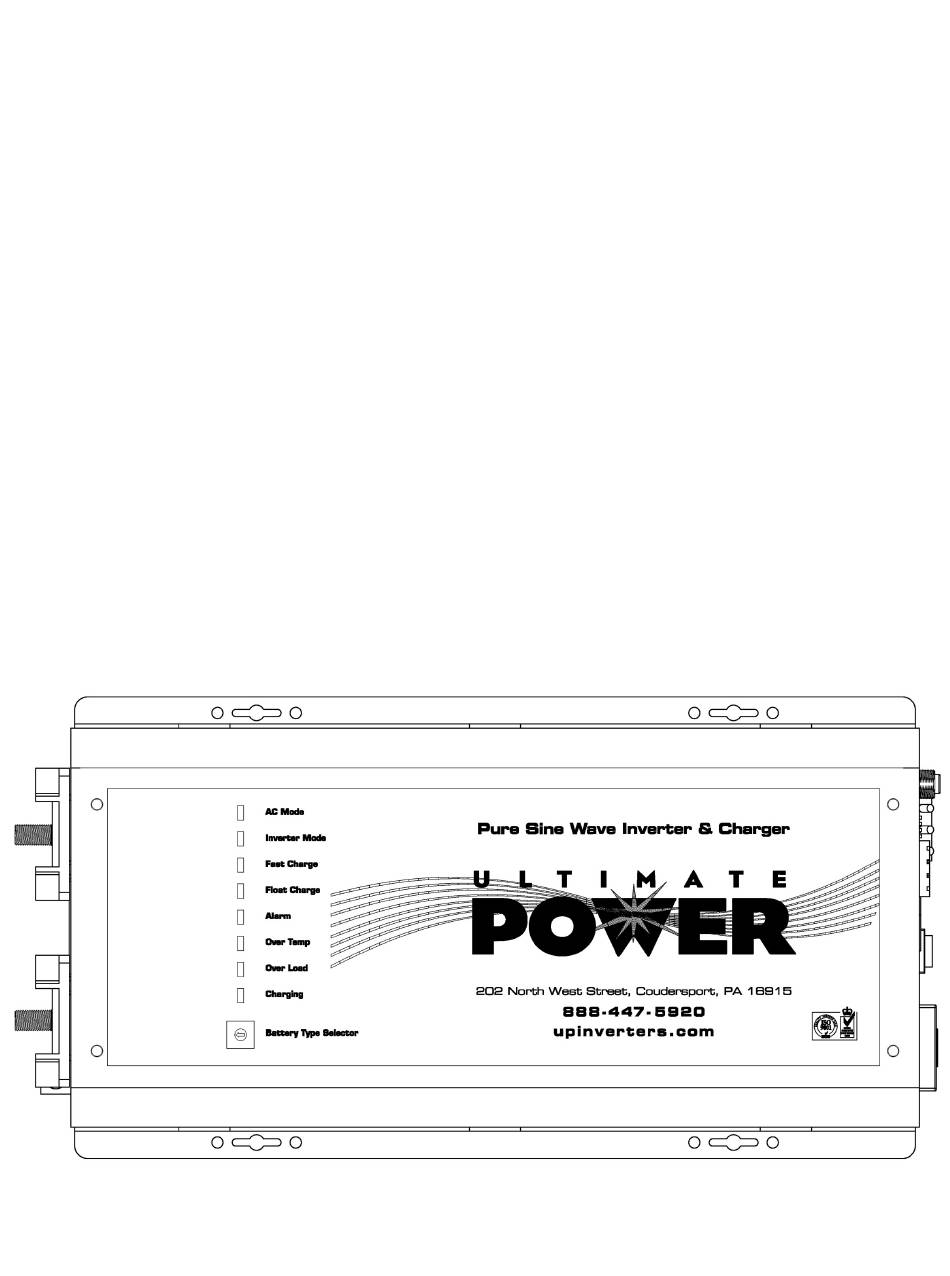

- Page 1 LP Series Pure Sine Wave Inverter/Charger User’s Manual For Models UP12/600LP-C, UP12/600LP-CG UP12/1000LP, UP12/1000LP-CG...
-
Page 3: Table Of Contents
3.4 Grounding ................................- 17 - 3.5 Mounting Flange ..............................- 18 - 4 Maintenance & Troubleshooting ............................- 19 - Limited Warranty Plan ................................. - 21 - Appendix 1 : LP Series Inverter/Charger Spec Sheet ......................- 22 - - 1 -... -
Page 4: Important Safety Information
All wires should be copper conductors. 1.1 General Safety Precautions 1.1.1 Before installing and using the LP Series Pure Sine Wave Inverter/Charger, read the manual and cautionary markings on the Inverter/Charger enclosure. Be sure to read all instructions and cautionary markings for any equipment attached to this unit. -
Page 5: Precautions When Working With Batteries
2.1 General Information Thank you for purchasing the LP Series Pure Sine Wave Inverter/Charger. The LP Series Pure Sine Wave Inverter/Charger is a transformer based inverter and battery charger with an unprecedented conversion efficiency of 90%. It features power factor corrected, sophisticated multi-stage charging control and pure sine wave output with high surge capability to meet power needs of all sorts of demanding loads without putting the equipment at risk. -
Page 6: Mechanical Drawing
Ultimate Power www.upinverters.com 2.2 Mechanical Drawing UP12/600LP-C, UP12/1000LP-C - 4 -... -
Page 7: Features
Ultimate Power www.upinverters.com UP12/600LP-CG, UP12/1000LP-CG 2.3 Features Smart remote LCD control 12.8Vdc Remote Start Auto Generator Start Battery Temperature Sensing for increased charging precision Manual 50Hz/60Hz output frequency switch Maximum 90% conversion efficiency High surge output capability, 300% peak load for 20 seconds ... -
Page 8: Electrical Performance
95-127VAC, and AC freq. is in the range of 48-54Hz (58-64Hz for 60Hz model). The LP series pure sine wave inverter/charger has a very rapid charge current available, and the max charge current can be adjusted from 0%-100% via a liner switch on the DC side of the inverter. This will be helpful if this powerful charger apply charging on a small capacity battery bank. - Page 9 Ultimate Power www.upinverters.com controlled constant current. The charger will remain in Bulk charge until the Absorption charge voltage (determined by the Battery Type selection) is achieved. Software timer will measure the time from charger start until the battery charger reaches 0.3V below...
- Page 10 The Desulfation charging should not be carried out on batteries with good conditions. Charging depleted batteries The LP series pure sine wave inverter/charger allows start up and through power with depleted batteries. For 12.8VDC models, after the battery voltage goes below 11V, if the switch is still (and always) kept in "ON"...
-
Page 11: Transfer
Ultimate Power www.upinverters.com 2.4.3 Transfer While in the Standby Mode, the AC input is continually monitored. Whenever AC power falls below the VAC Trip voltage (80VAC, default setting), the inverter automatically transfers back to the Invert Mode with minimum interruption to your appliances - as long as the inverter is turned on. The transfer from Standby mode to Inverter mode occurs in approximately 10 milliseconds. -
Page 12: Protections
(shutdown Output) after 30 seconds. After temp drops to 90ºC (194℉), the switch has to be reset to activate the inverter. The LP series Inverter has back feeding protection which avoids presenting an AC voltage on the AC input terminal in Invert mode. -
Page 13: Led Indicator
Ultimate Power www.upinverters.com 2.4.6 LED Indicator AC MODE GREEN LED on “AC Input Mode” INVERTER ON GREEN LED on “Invert Mode” FAST CHARGE Yellow LED on “Fast CHG” FLOAT CHARGE GREEN LED on “Float CHG” OVER TEMP TRIP RED LED on “Over Temp”... -
Page 14: Fan Operation
Ultimate Power www.upinverters.com 2.4.8 FAN Operation For 600W-1KW models, there is one multiple controlled DC fan. The DC fans are designed to operate according to the following logic: Condition Enter Condition Leave condition Speed HEAT SINK T ≤ 60℃(140℉) T > 65℃(149℉) TEMPERATURE 65℃(149℉)≤... - Page 15 Ultimate Power www.upinverters.com AC Input Range: There are different acceptable AC input ranges for different kinds of loads. For some relatively sensitive electronic devices, a narrow input range of 100-135V is required to protect them. While for some resistive loads which work in a wide voltage range, the input AC range can be customized to 90-135V, this helps to power loads with the most AC input power without frequent switches to the battery bank.
-
Page 16: Auto Generator Start
Ultimate Power www.upinverters.com AC/Battery Priority: Our inverter is designed AC priority by default. This means, when AC input is present, the battery will be charged first, and the inverter will transfer the input AC to power the load. Only when the AC input is stable for a continuous period of 15 days will the inverter start a battery inverting cycle to protect the battery. -
Page 17: Other Features
Ultimate Power www.upinverters.com Inverter Condition Temperature on BTS Charger Operation Charger Mode BTS ≥ 50℃(122℉) Automatically turns off charger BTS ≤ 40℃(104℉) Automatically turns on charger Inverter Mode Increases the low voltage shut down 40℃(104℉) ≤ BTS ≤ 50℃(122℉) point by 0.5Vdc BTS ≥... -
Page 18: Installation
Ultimate Power www.upinverters.com 3 Installation 3.1 Location Follow all the local regulations to install the inverter. Please install the equipment in a location of Dry, Clean, Cool with good ventilation. Working temperature: ‐10℃ to 50℃ (-14℉to 122℉) Storage temperature: ‐40℃ to 70℃ (-40℉to 158℉) Relative Humidity: 0% to 95%，non-condensing... -
Page 19: Ac Wiring Recommendations
Ultimate Power www.upinverters.com Reducing RF interference To reduce the effect of radiated interference, twist the DC cables. To further reduce RF interference, shield the cables with sheathing /copper foil / braiding. Taping battery cables together to reduce inductance Do not keep the battery cables far apart. In case it is not convenient to twist the cables, keep them taped together to reduce their inductance. -
Page 20: Mounting Flange
Ultimate Power www.upinverters.com 3.5 Mounting Flange 1000W Model End View - 18 -... -
Page 21: Maintenance & Troubleshooting
Ultimate Power www.upinverters.com 4 Maintenance & Troubleshooting This troubleshooting guide contains information about how to troubleshoot possible error conditions while using the LP Pure Sine Wave Inverter/Charger. The following chart is designed to help you quickly pinpoint the most common inverter failures. - Page 22 Ultimate Power www.upinverters.com Symptom Possible Cause(s) Recommended Solution(s) Inverter will not turn on during Batteries are not connected, loose Check the batteries and cable initial power up. battery-side connections. connections. Check DC fuse and breaker. Low battery voltage. Charge the battery.
-
Page 23: Limited Warranty Plan
Ultimate Power manufactured product, then Ultimate Power will ship a replacement part to match that of the defective product. Ultimate Power will pay the ground service shipping cost to the customer and provide a return shipping label for its return. Customer must put the defective product in the box the replacement product came in and ship back to Ultimate Power. -
Page 24: Appendix 1: Lp Series Inverter/Charger Spec Sheet
Ultimate Power www.upinverters.com Appendix 1: LP Series Inverter/Charger Spec Sheet Electrical Specifications UP12/600LP-C UP12/1000LP-C Model UP12/600LP-CG UP12/1000LP-CG Power Rating 600W 1000W Continuous Output Power 600W 1000W Surge Rating(20s) 1800W 3000W Output Waveform Pure Sine wave/Same as input (Bypass mode) Nominal Efficiency... - Page 25 Ultimate Power www.upinverters.com De-sulfation 15.5 for 4hrs Remote Control Yes. Optional Input Voltage Waveform Sine wave (Grid or Generator) Nominal Voltage 120Vac Low Voltage Trip 80V/90V±4% Low Voltage re engage 90V/100V±4% High Voltage Trip 140V±4% High Voltage re engage 135V±4%...
- Page 27 ULTIMATE POWER CO 202 North West Street Coudersport, PA 16915 TEL: 888.447.5920 info@upinverters.com...
