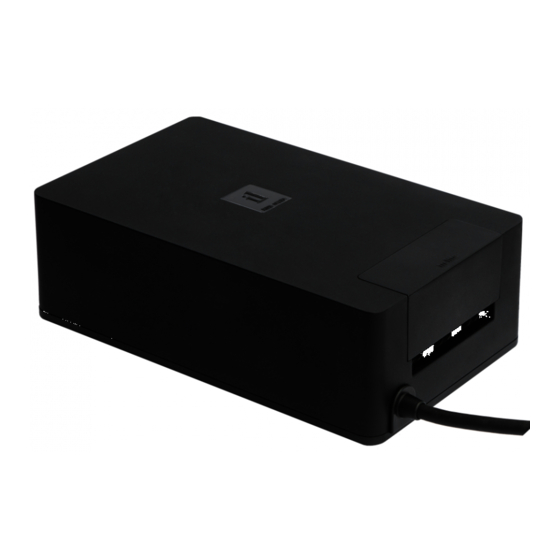

in-lite SMART HUB-150 Manual

Hide thumbs Also See for SMART HUB-150:

Advertisement

Quick Links

Download this manual
OUTDOOR LIGHTING
MANUAL
SMART HUB-150

Advertisement

loading

Related Manuals for in-lite SMART HUB-150

Summary of Contents for in-lite SMART HUB-150

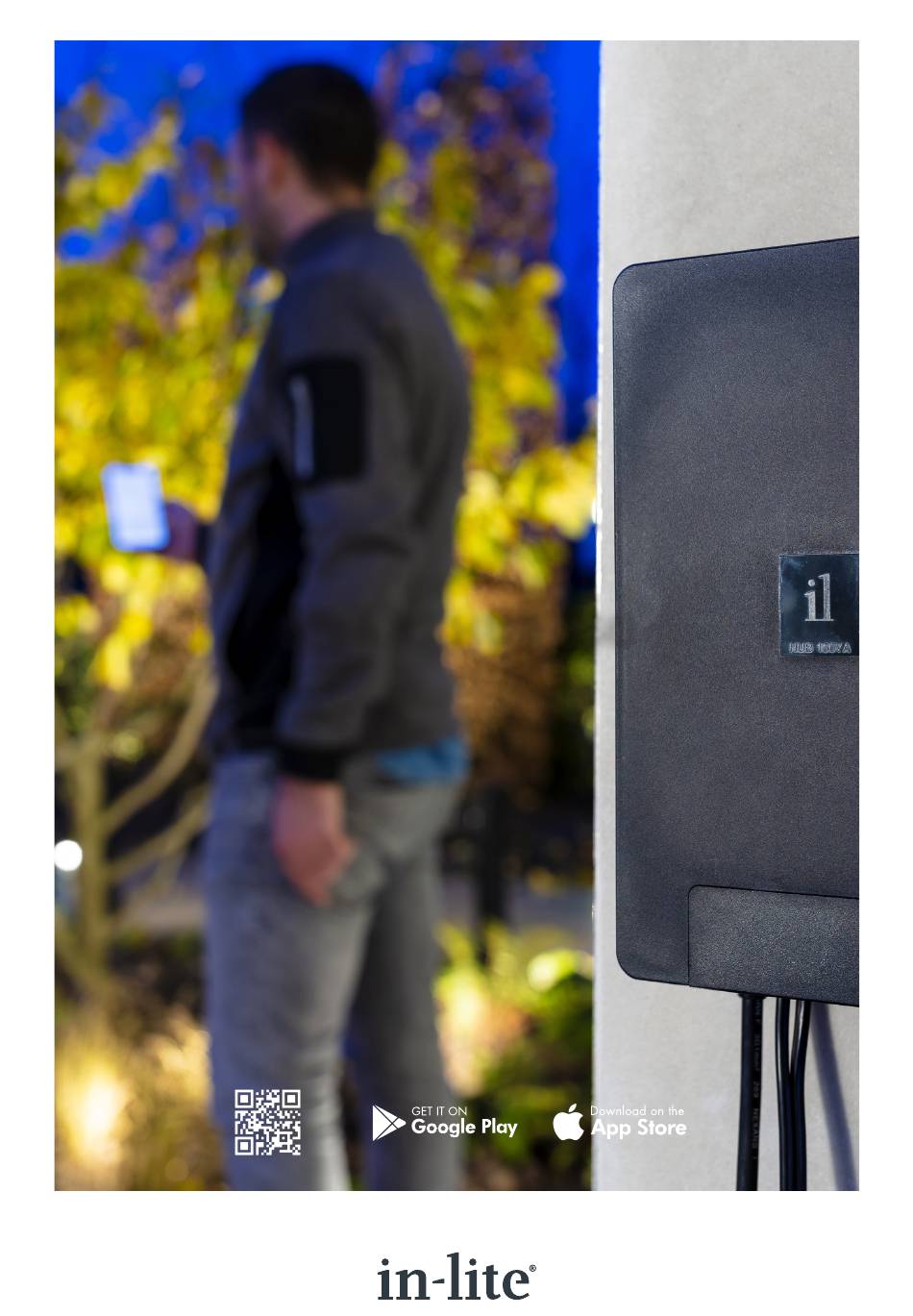

  • Page 1 OUTDOOR LIGHTING MANUAL SMART HUB-150...

  • Page 2: Start Screen

    OUTDOOR LIGHTING START SCREEN WHEN THE IN-LITE APP IS STARTED UP, THE START SCREEN WILL OPEN: If you do not yet have an account and the transformer is not yet installed, select “I’m new here”. If the transformer has already been installed and an account has already been created, select “I already have an account”.
  • Page 3 OUTDOOR LIGHTING START SCREEN CONFIRM THE TRANSFORMER Click on the SMART HUB to identify and configure it. Check to make sure this is the right SMART HUB. The blue indicator lighting on the reset button (the button on the side of the SMART HUB) will start flashing. To continue, press “Reset button is flashing”...
  • Page 4 OUTDOOR LIGHTING START SCREEN IF THERE ARE NO OTHER TRANSFORMERS TO SET, YOU CONTINUE BY PRESSING THE “SAVE SETTINGS” BUTTON. If there are other transformers that need to be set, repeat the above steps. THE FINAL STEP WHEN INSTALLING THE TRANSFORMER IS TO CREATE AN ACCOUNT FOR SAVING THE SETTINGS.
  • Page 5 OUTDOOR LIGHTING ROUTINES AFTER THE INTRODUCTIONS, THE APP WILL SHOW WHICH ZONES HAVE BEEN SET AND THE LIGHTING CAN BE SWITCHED ON AND/OR OFF USING THE APP. The slider above the word Settings is used to switch off all zones at the same time. The sliders are used to switch on the lighting in each light zone.
  • Page 6 OUTDOOR LIGHTING ROUTINES ROUTINE: SUNSET AUTOMATIC AND SUNRISE AUTOMATIC Give the routine a name and set the start or end time using the slider. Next, select the light zones for this routine and press the “Add” button. SMART MOVE For a detailed explanation of the SMART MOVE, see page 13.
  • Page 7 OUTDOOR LIGHTING ROUTINES ROUTINE: SUNSET ADJUSTABLE AND SUNRISE ADJUSTABLE Give the routine a name and set the start and end time using the slider. Next, select the lines for this routine and press the “Add” button. ROUTINE: SUNRISE-SUNSET Give the routine a name. Select the lines for this routine and press the “Add”...

  • Page 8: Warranty

    OUTDOOR LIGHTING SETTINGS This screen is used to manage the various in-lite app settings. MY YARDS Select a set yard to change the name of the yard, transformer or light zone. A transformer or motion detector can also be added here and/or a share code generated for sharing parts of the yard with another smartphone/tablet.
  • Page 9 OUTDOOR LIGHTING SETTINGS ADD A TRANSFORMER Select the three dots in the top right corner: • Select “Change name” to change the name of the yard. • Select “Remove yard” to remove the yard. In order to make changes, there must be a connection to the yard.
  • Page 10 OUTDOOR LIGHTING SETTINGS SMART HUB This screen shows all of the SMART HUBs located in the yard. Select a SMART HUB to view the details and make changes. The screen shown on the right shows all the options. In this screen, you can change the names of the light zones and the name of the SMART HUB.
  • Page 11 OUTDOOR LIGHTING SETTINGS SHARE A YARD The share code is used to share all settings configured with another user. The other user must enter this code under “Use share code” in the app start screen. This share code can be easily sent with various apps by pressing “Share”.
  • Page 12 Enter the share code that you received from another app user. After the correct code is entered, the yard will be installed automatically in the app and a connection made to the transformer(s). WARRANTY Here you can find the general warranty conditions for in-lite products.
  • Page 13 OUTDOOR LIGHTING SMART MOVE? ADD A SMART MOVE: A SMART MOVE can be added in two locations in the app: a. Settings - My yards - Accessories b. Routines - SMART MOVE THE SAME SCREEN IS SHOWN FOR BOTH START LOCATIONS: If the SMART MOVE is not found, after around one minute, the app will show the second screen once the...
  • Page 14 OUTDOOR LIGHTING SMART MOVE? SELECT THE LIGHT ZONE(S) TO BE ACTIVATED BY THE SMART MOVE: Scroll down to confirm the settings: “Done”. ! TIP: If an exclamation point is shown next to a light zone (per SMART HUB), this means that there is currently no connection with the transformer.
  • Page 15 OUTDOOR LIGHTING SMART EXTENDER ADD A SMART EXTENDER: A SMART EXTENDER can be used to increase the signal to your phone. The SMART EXTENDER first needs to be connected to the power supply. It must then be added to your yard. This can be done in Settings >...
  • Page 16 OUTDOOR LIGHTING GENERAL GENERAL: Where can I find the software version of my transformer? Go to Settings – My yards > Select a transformer, such as Backyard. Scroll down to find the software version: 32 in this case. Do the same for the other transformers, such as Front yard.
