Down East MADSEN 11073 Assembly Instructions

DOWN EAST
! Do not throw away packaging materials until assembly is complete.
! Assemble this item on a soft surface, such as cardboard or carpet, to protect finish.
! Proper assembly of this item requires 2 people & would require approx 20 minutes to assemble.

CARE INSTRUCTIONS

Wipe with a soft, dry cloth. To protect finish, avoid the use of chemicals and household cleaners. Any liquid spilled
Onto the table should be cleaned up immediately with a damp cloth.

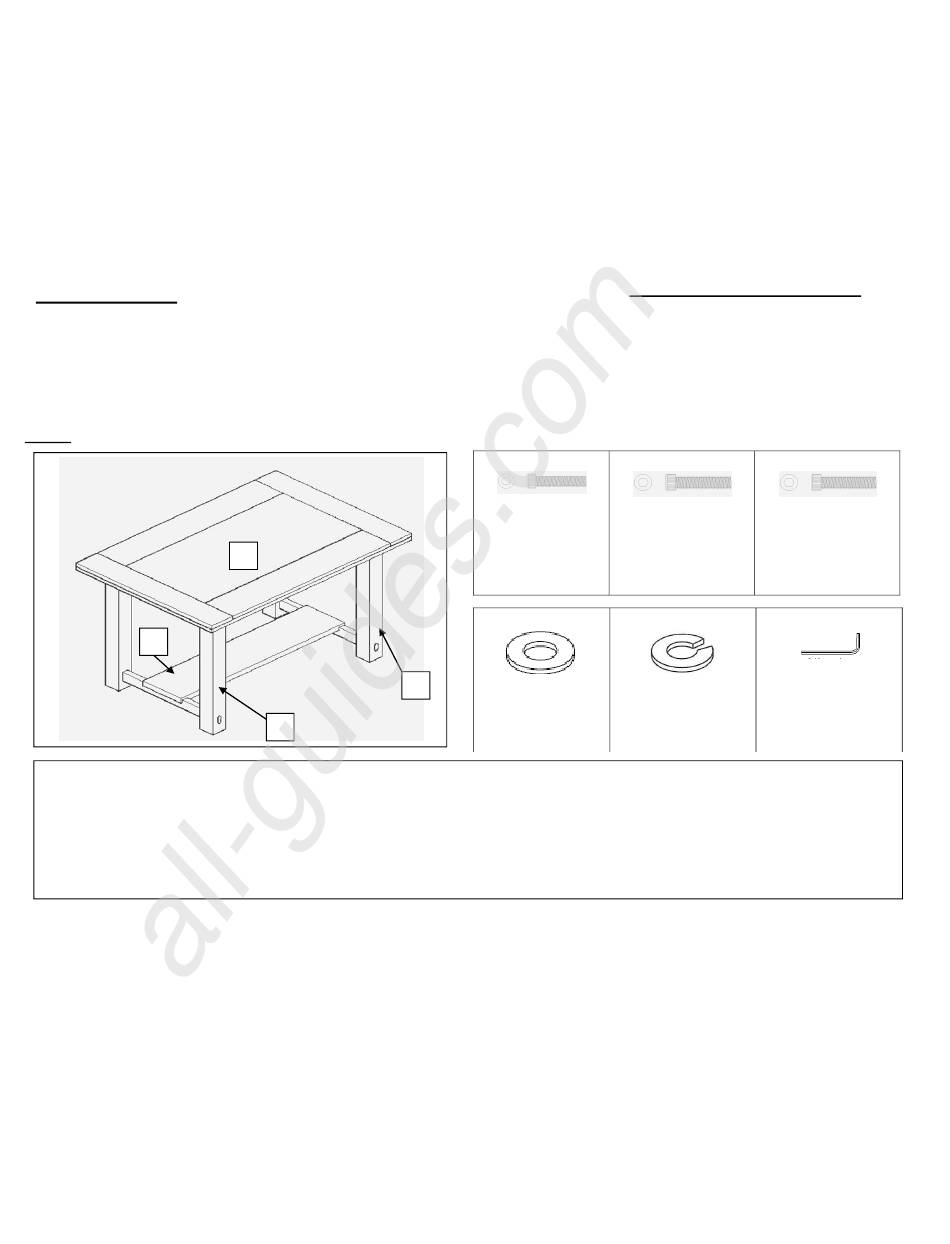

PARTS

D
Step1 - Lay the Table top panel (A) upside down on to a clean smooth surface.
Step2 - Take one side leg assembly (Like B) and match it with its respective side.
The slots on the Top and legs are numbered. Match the number on the leg assembly with that on the Top, while attaching.
Step3 - Now, Insert Allen Bolt (E) for the rail & (F) for the corner with washer (H) & spring washer (I).
And fully Tighten with Allen Key (J). Repeat the same step for Leg assembly (C).
Step4 - Match the fixing holes on side & mid stretcher and attached with bolt (E) with plain washer (H) & spring washer (I) using Allen key (J).
Step5 - Turn the Table upright. Table is now ready to use
Item number: - 11073
All manuals and user guides at all-guides.com
A
C
B
MADSEN COUNTER HEIGHT TABLE (11073)
E F
Allen Bolt
M8, 35mm, 6x + 1
Extra
H I
Washer
25mm 18x + 1Extra
26.07.13
ASSEMBLY INSTRUCTION
G
Allen Bolt Allen Bolt
M8, 50mm, 4x +1 M8, 60mm, 8x +1
Extra
J
Allen Key 6mm
Spring Washer
18x + 1Extra
Extra
1 x
2
Page 1 of
